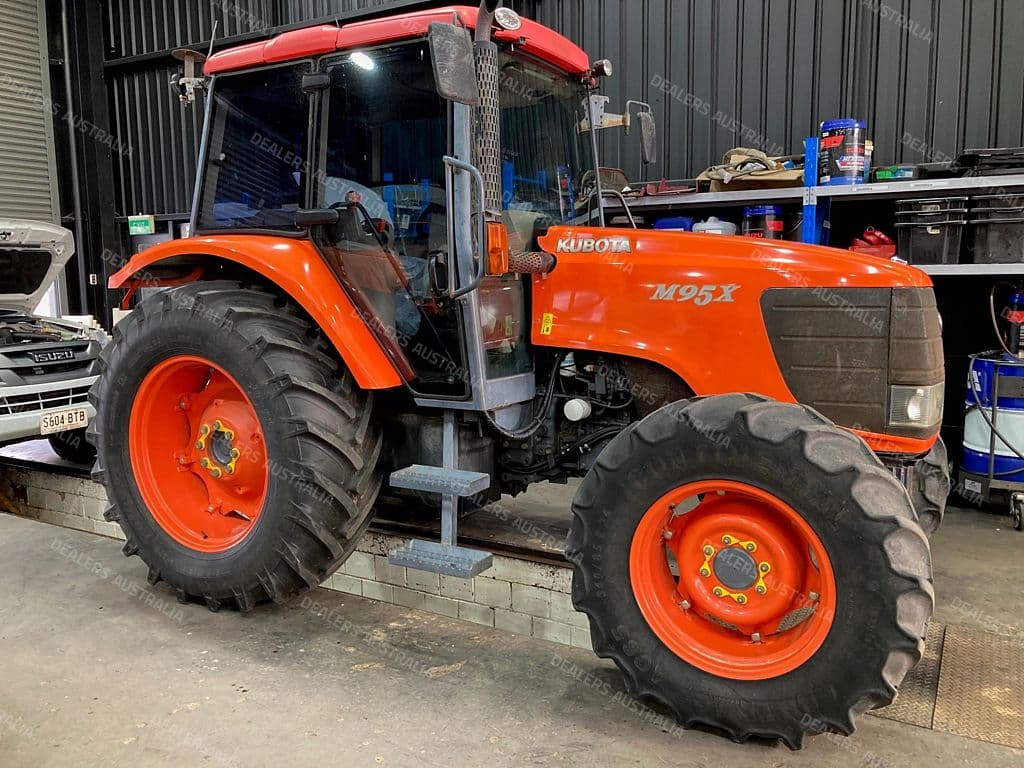

Kubota M95X

Last Updated: June 2024

Overview

The Kubota M95X is a row-crop tractor known for its powerful performance and versatility. With a 4-wheel drive (4WD) chassis that provides enhanced traction and stability, it is suitable for various agricultural tasks. It features a hydrostatic power steering system that allows for smooth and responsive handling. The engine, a Kubota V3800TE2 turbocharged diesel, offers 95 horsepower and operates at a rated RPM of 2600. With a 16-speed Intelli-Shift partial power shift transmission, operators can efficiently manage the tractor's speed and performance under various conditions. The liquid-cooled engine ensures consistent performance and longevity. This tractor has a weight of 9,050 pounds and dimensions that include a length of 163.4 inches, a width of 83.7 inches, and a height of 103.9 inches. The hitch system is a Category II with a lift capacity of 5203 lbs, providing substantial strength for towing and lifting tasks. Additional specifications like the power take-off (PTO) type or speed and operational features such as the type of brakes are not explicitly mentioned, and the operator station type, whether open or with a cab, is also unspecified. Overall, the Kubota M95X is built to deliver reliable and robust performance for the demanding needs of modern farming.
Show more...

Key Specifications

Category: Row Crop

Power Output: 95

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 9050

Fuel Type: Diesel

Kubota M95X vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800TE2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
230 ci
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
95

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
163.4
Width (in)
83.7
Height (in)
103.9
Operating Weight (lb)
9050

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
9.6
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
5203
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
