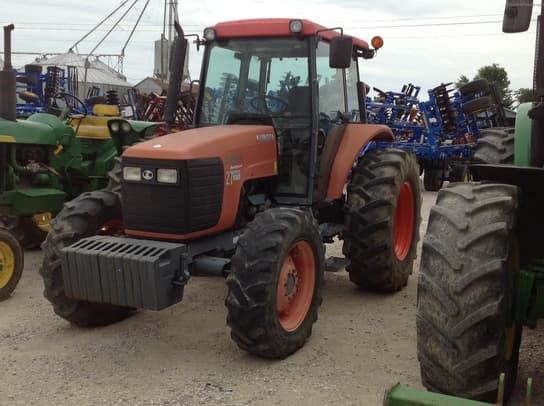

Kubota M95S

Last Updated: June 2024

Overview

The Kubota M95S is a utility tractor designed for a variety of agricultural tasks. It features a 2-wheel drive, 4x2 2WD chassis configuration and is powered by a Kubota V3800-DI-T turbocharged diesel engine with a displacement of 230 cubic inches and a performance that peaks at 2600 RPM. While the exact horsepower is not specified, the tractor can be assumed to offer substantial power, given the size of its engine and turbocharged design. The tractor operates with a Swing Shift transmission that offers up to 32 forward gears, with the possibility of additional creeper gears, allowing for refined control over a wide range of speeds. It is designed with hydrostatic power steering and a liquid-cooled engine system to maintain performance during heavy use. Its physical dimensions and weight indicate a sturdy and durable machine, with a weight range between 6261 to 7628 pounds and a cab height of 106 inches, ensuring operator comfort and safety. Tires are standard agricultural type with widths of 12.4 inches in the front and 18.4 inches at the rear, suitable for various field conditions. The available hitch type is category II, likely offering good lifting capability, although the exact hitch lift capacity is not provided. This model’s production years are not known, and additional features such as PTO speeds, braking system, and hydraulic system type are also not specified in the provided data.
Show more...

Key Specifications

Category: Utility

Drive Type: 2WD

Operating Weight: 6261

Fuel Type: Diesel

Kubota M95S vs. Similar Tractors

Operating Weight
Average
Greater than 49% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-DI-T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
230
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
-

Transmission

Type
-
Forward Gears
32
Reverse Gears
-
Total Gears
32

Dimensions

Length (in)
162
Width (in)
79
Height (in)
106
Operating Weight (lb)
6261

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
30
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
-
