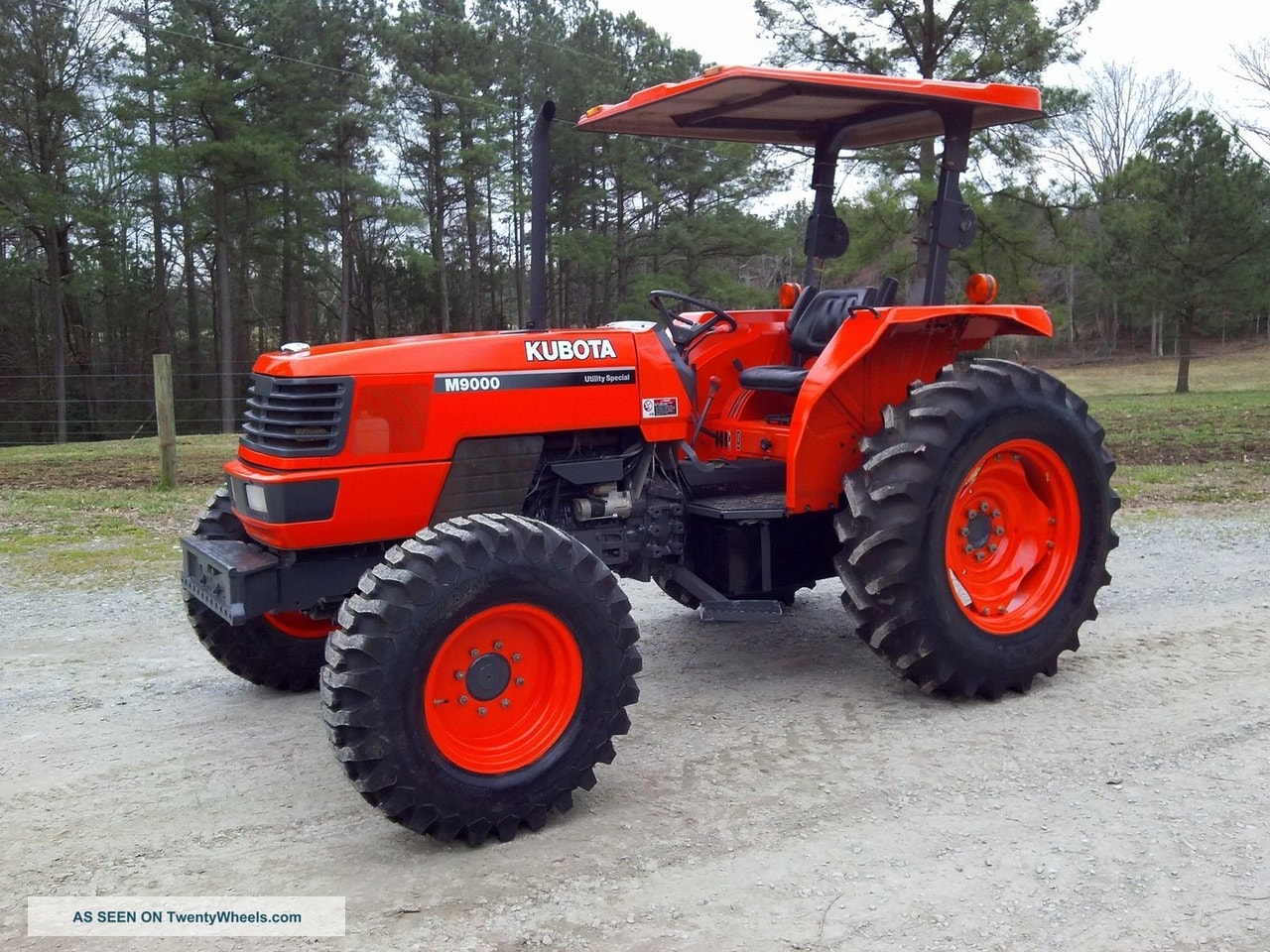

Kubota M9000 Mudder ROPS

Last Updated: June 2024

Overview

The Kubota M9000 Mudder ROPS is a robust and versatile tractor designed to operate in challenging conditions with increased ground clearance. It features a 90 hp engine, model V3300-TIE, which is liquid-cooled and operates at a rated 2600 RPM. This tractor has a displacement of 202 cubic inches and a fully synchronized transmission with 12 forward and 12 reverse gears, enabling a variety of speeds to accommodate different tasks. The 3-point hitch system is a Category 2, with a lift capacity of 4629.8 lbs, allowing it to handle substantial implements. Operating weight is substantial at 7319.4 lbs, ensuring stability during operation. Overall, the M9000 Mudder is well-suited for agricultural settings that require a durable and high-performing tractor.
Show more...

Key Specifications

Power Output: 90

Transmission: Fully synchronized

Operating Weight: 7319.4

Lift Capacity: 4629.8 lbs

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3300-TIE
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
E-TVCS indirect injection
Fuel Type
-
Induction Type
-
Cylinders
-
Displacement (ci)
202
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
90

Transmission

Type
Fully synchronized
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
160.8
Width (in)
79.2
Height (in)
-
Operating Weight (lb)
7319.4

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
9.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
R2 agricultural
Manufacture - End Year
-
Hitch Type
3 Point Hitch Type: Cat II
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
4629.8 lbs
Operator Station Type
ROPS
Starter Type
-
Brake Type
-
Hydraulic System Type
-
