Kubota M9000

Last Updated: June 2024

Overview

The Kubota M9000 is a 2WD (or optional 4WD) utility tractor from the M Series, manufactured between 1997 and 2005. It features an 88.6 inch wheelbase, hydrostatic power steering, and comes equipped with a Kubota V3300-TIE four-cylinder turbocharged intercooled diesel engine. With 8 forward and 8 reverse gears, the M9000 offers a synchronized shuttle or a power shuttle transmission. It operates at a rated speed of 2600 RPM, producing a power output of 90 HP. This model sports either two-post folding ROPS or an optional cab with air-conditioning. The operating weight ranges from 5675 lbs for the 2WD ROPS up to 6750 lbs for the 4WD cab variant, emphasizing the difference between configurations. The utility-focused design supports a Category II three-point hitch and has optional PTO speeds, including standard 540 RPM or a combination of 540/540E and 540/1,000 RPM.

Key Specifications

Category: Utility

Power Output: 90

Transmission: Synchronized shuttle

Drive Type: 2WD

Operating Weight: 5675 (2WD ROPS), 6750 (4WD Cab)

Fuel Type: Diesel

Image Gallery

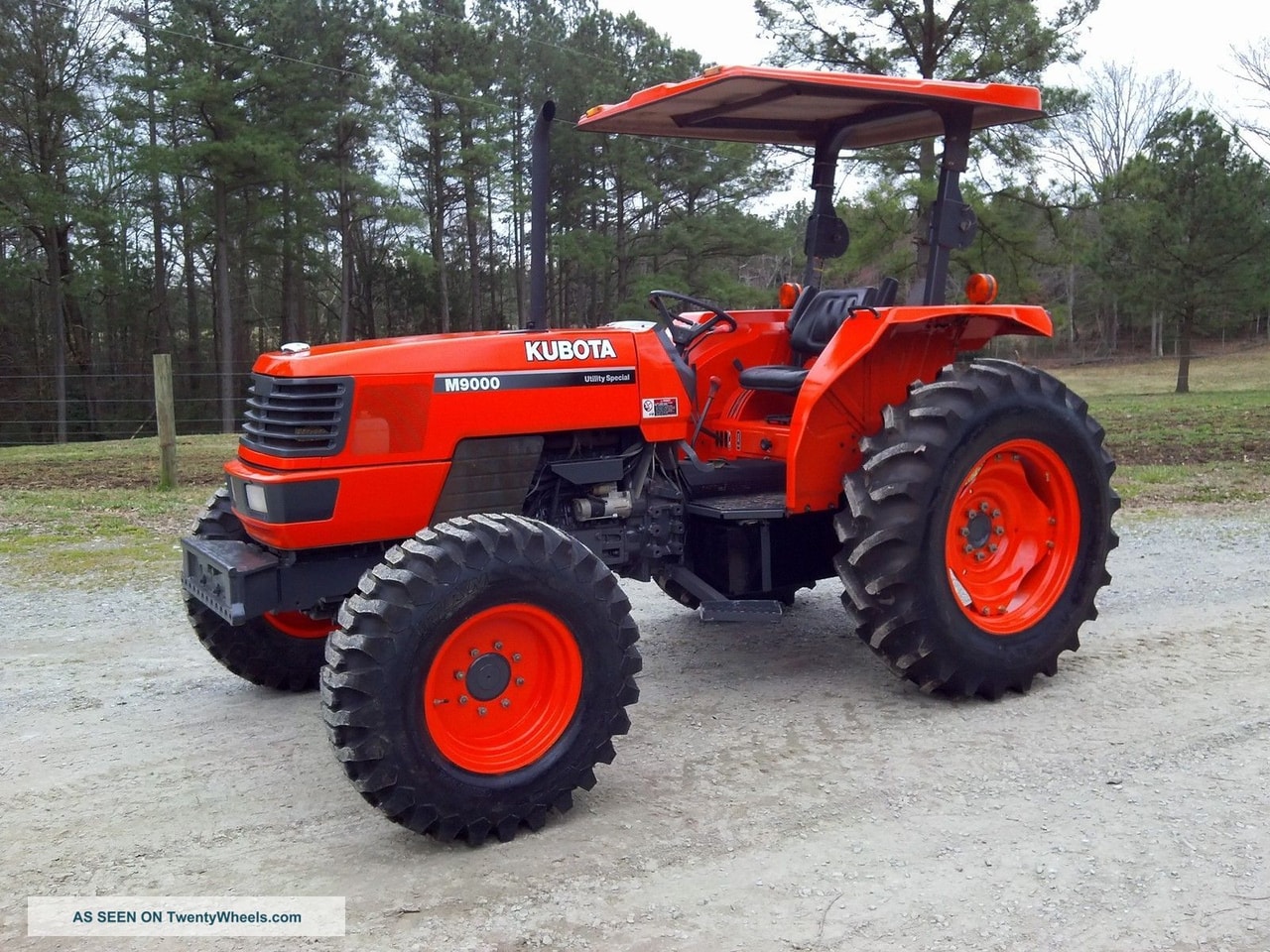

Kubota M9000 Tractor

Kubota M9000 vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Operating Weight

Above Average

Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3300-TIE
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 202
Bore (in): 3.86
Stroke (in): 4.33
Rated RPM: 2600
Power Output (hp): 90

Transmission

Type: Synchronized shuttle
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 152.6 (2WD), 151.4 (4WD)
Width (in): 78
Height (in): 98.4 (ROPS), 99.6 (cab)
Operating Weight (lb): 5675 (2WD ROPS), 6750 (4WD Cab)

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540/540E, 540/1,000 (Unknown which one is second)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 9.5
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2005
Hitch Type: Three-Point Hitch
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Two-post folding ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Multiple wet disc mechanical
Hydraulic System Type: Open center
