Kubota M8540

Last Updated: June 2024

Overview

The Kubota M8540 tractor, produced by Kubota between 2007 and 2013, is designed for variety of utility tasks. It features a Kubota V3800-DI-T turbocharged diesel engine offering 85.6 horsepower, complemented by a choice of transmissions, including 8-gear partially synchronized and 8- or 12-gear power shuttle options. It has hydrostatic power steering and hydraulic wet disc brakes that enhance operation and safety. Depending on the model, it comes with either a two-post foldable ROPS or an optional Ultra Grand Cab with climate control. The tractor is also equipped with a three-point hitch and an independent PTO with speeds of 540 to 1,000 rpm. Its open-center hydraulic system includes a standard differential lock and a multiple gearbox configuration, ensuring versatility for a wide range of tasks.

Key Specifications

Category: Utility

Power Output: 85.6

Transmission: Partially synchronized / Power shuttle

Operating Weight: 5005 (2WD ROPS), 5400 (4WD ROPS), 5665 (2WD Cab), 6065 (4WD Cab)

Fuel Type: Diesel

Lift Capacity: 5,513 lbs

Image Gallery

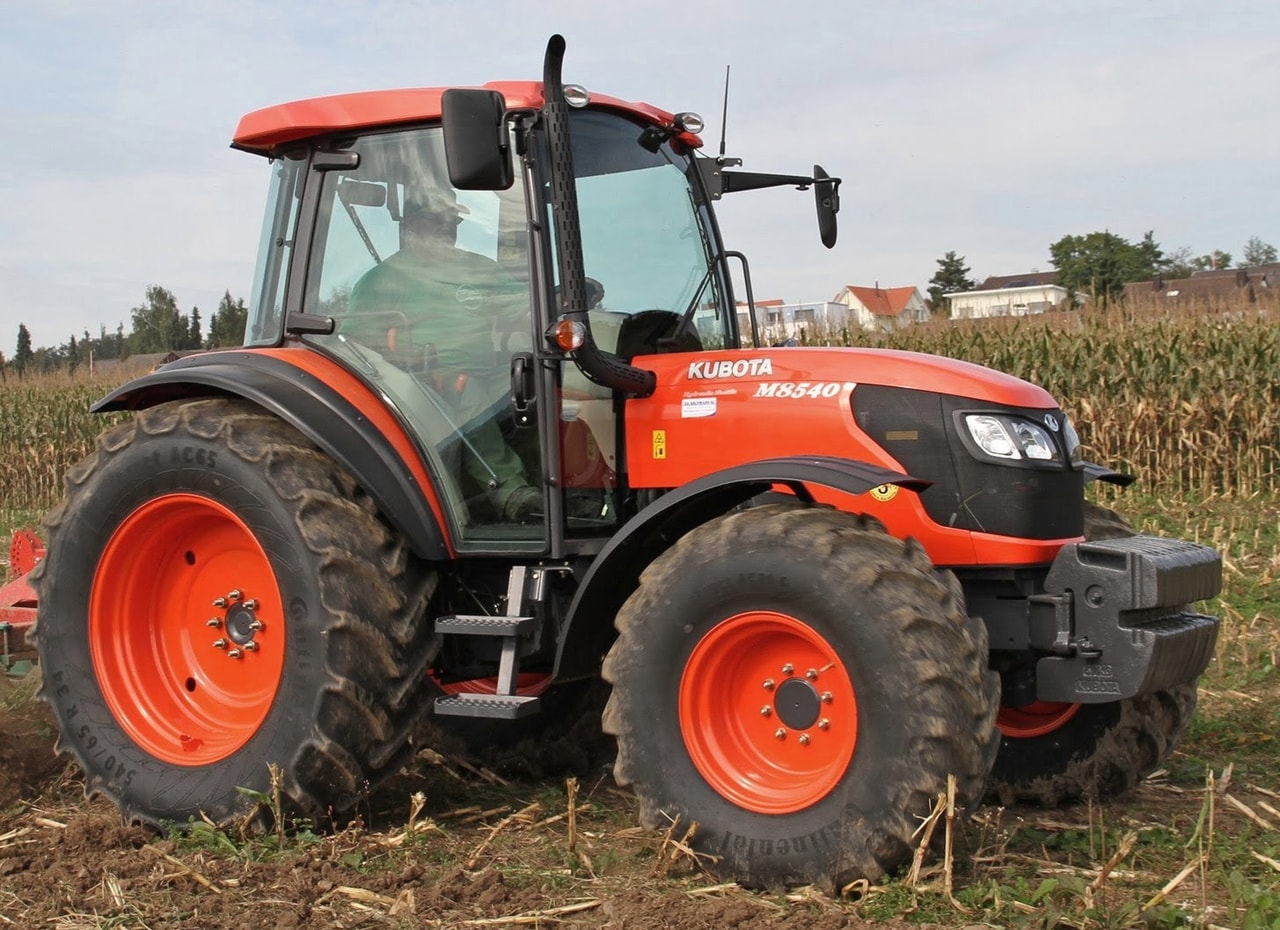

Kubota M8540 Tractor

Kubota M8540 vs. Similar Tractors

Power Output

Above Average

Greater than 74% of similar tractors.

Hitch Capacity

Below Average

Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3800-DI-T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 230
Bore (in): 3.94
Stroke (in): 4.72
Rated RPM: 2600
Power Output (hp): 85.6

Transmission

Type: Partially synchronized / Power shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 152.8 (2WD), 148 (4WD)
Width (in): 78
Height (in): 96.9 (ROPS), 101 (Cab)
Operating Weight (lb): 5005 (2WD ROPS), 5400 (4WD ROPS), 5665 (2WD Cab), 6065 (4WD Cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000 (Optional)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 9.51
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Industrial
Manufacture - End Year: 2013
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 5,513 lbs
Operator Station Type: Open operator station with two-post foldable ROPS, Ultra Grand Cab (optional)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Open center
