Kubota M8200

Last Updated: June 2024

Overview

The Kubota M8200 is a utility tractor available as 2WD or 4WD and produced by Kubota from 1997 to 2005. It is powered by a four-cylinder, turbocharged diesel V3300-TE engine with a displacement of 202.5 cubic inches, offering 82 horsepower. Transmission options include a synchronized shuttle comprising 8 forward and 8 reverse gears, or a power shuttle transmission. The tractor’s dimensions vary slightly with configuration: the 2WD version measures 152.6 inches in length and the 4WD measures 149.8 inches. Height is standardized at around 97.4 inches with ROPS and 97.6 inches with a cab. Various tire options are available, including agricultural, lawn/turf, and industrial types. Operating weight ranges between 5585 lbs with a 2WD ROPS and up to 6615 lbs with a 4WD cab configuration. The Kubota M8200 also features a rear-positioned Category II hitch with a lift capacity of 5500 lbs, hydrostatic power steering, and a choice of an operator station with a two-post folding ROPS or an optional air-conditioned cab.

Key Specifications

Category: Utility

Power Output: 82

Transmission: Synchronized shuttle (forward and reverse) / Power shuttle (alternative option)

Drive Type: 4x4 MFWD 4WD assumed for the alternative to 2WD

Operating Weight: 5585 (2WD ROPS) / 6025 (4WD ROPS) / 6175 (2WD Cab) / 6615 (4WD Cab)

Fuel Type: Diesel

Image Gallery

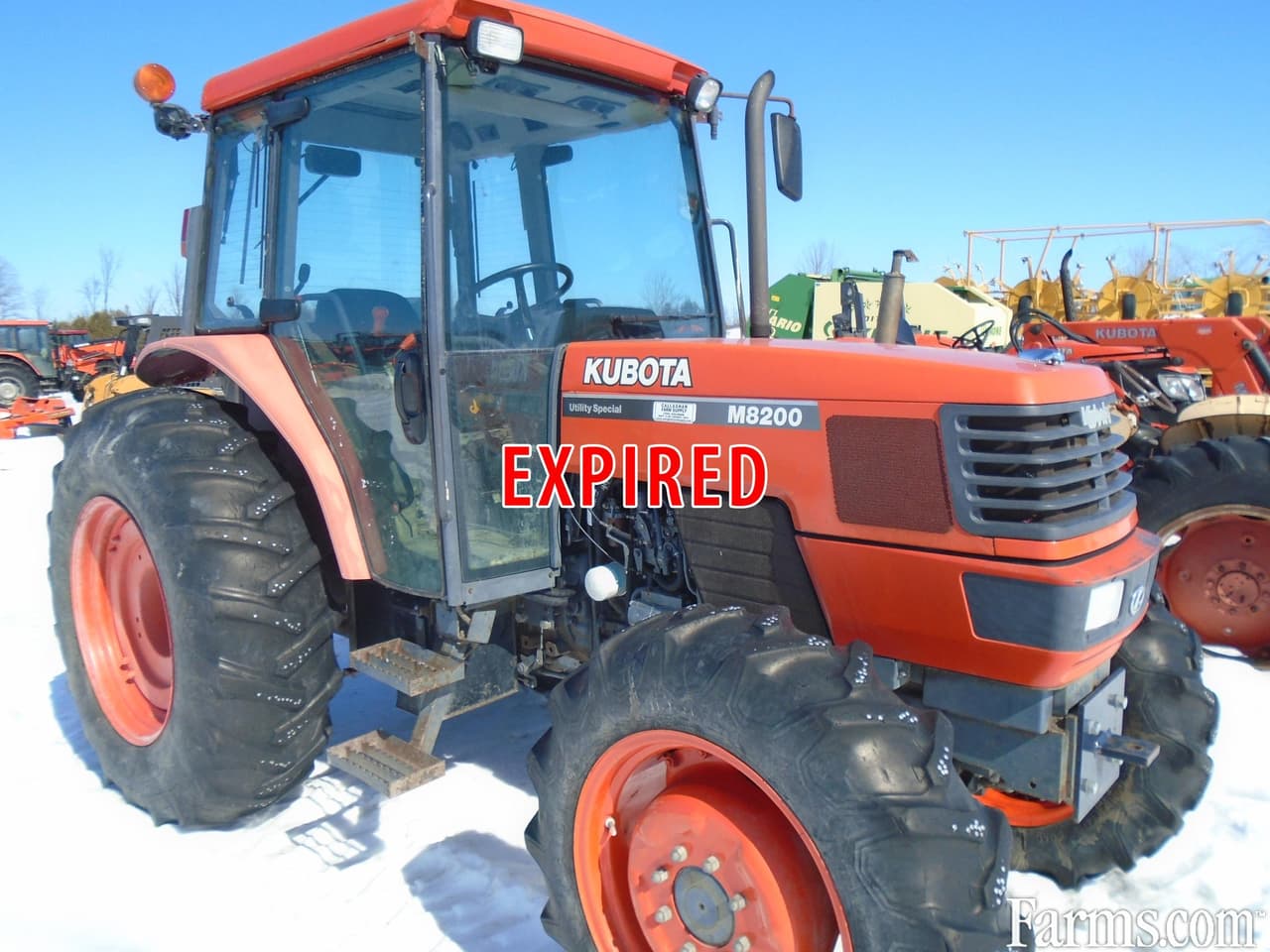

Kubota M8200 Tractor

Kubota M8200 vs. Similar Tractors

Power Output

Above Average

Greater than 72% of similar tractors.

Hitch Capacity

Above Average

Greater than 78% of similar tractors.

Operating Weight

Excellent

Greater than 100% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3300-TE
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 202.5
Bore (in): 3.86
Stroke (in): 4.33
Rated RPM: 2600 assumed based on gross power rating
Power Output (hp): 82

Transmission

Type: Synchronized shuttle (forward and reverse) / Power shuttle (alternative option)
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 152.6 (2WD) / 149.8 (4WD)
Width (in): 78
Height (in): 97.4 (ROPS) / 97.6 (Cab)
Operating Weight (lb): 5585 (2WD ROPS) / 6025 (4WD ROPS) / 6175 (2WD Cab) / 6615 (4WD Cab)

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540/540E or 540/1000 (multiple options listed)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4WD MFWD
Drive Type: 4x4 MFWD 4WD assumed for the alternative to 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 9.5
Front Tire Diameter (in): Unknown specific to 2WD or 4WD
Front Tire Width (in): Unknown specific to 2WD or 4WD
Rear Tire Diameter (in): Unknown specific to 2WD or 4WD
Rear Tire Width (in): Unknown specific to 2WD or 4WD
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial
Manufacture - End Year: 2005
Hitch Type: Category II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 5500 lbs
Operator Station Type: Two-post folding ROPS or Cab with air-conditioning (optional)
Starter Type: Electric
Brake Type: Multiple wet disc mechanical
Hydraulic System Type: Open center
