Kubota M8-201

Last Updated: July 2024

Overview

The Kubota M8-201 is a robust and versatile row-crop tractor designed for various agricultural tasks. It is powered by a Cummins B6.7 turbocharged diesel engine with a displacement of 408 cubic inches, a bore of 4.213 inches, and a stroke of 4.882 inches. The engine has a compression ratio of 17.3 to 1 and operates at a rated RPM of 2100, delivering a maximum power output of 179.86 horsepower. The tractor offers a choice between a six-speed power shift and a continuously-variable transmission, allowing for 30 forward speeds and 15 reverse speeds. The chassis is structured around a 4x4 MFWD 4WD configuration, ensuring optimal traction and stability across uneven terrain. Steering is facilitated through a power system, ensuring ease of maneuverability. The tractor stands at a commanding height of 128 inches and has an operating weight of 22090 lbs. It features a wheelbase of 114.0 inches and a drawbar height of 20.0 inches. The hydraulic system offers varying flow rates, with a maximum of 45.9 GPM at higher engine RPMs. Detailed performance data, including torque, drawbar pull, and fuel consumption rates under various conditions, are available from independent test results.

Key Specifications

Category: Row Crop

Power Output: 179.86

Transmission: Six-speed power shift / Continuously-variable transmission

Drive Type: 4WD

Operating Weight: 22090

Fuel Type: Diesel

Image Gallery

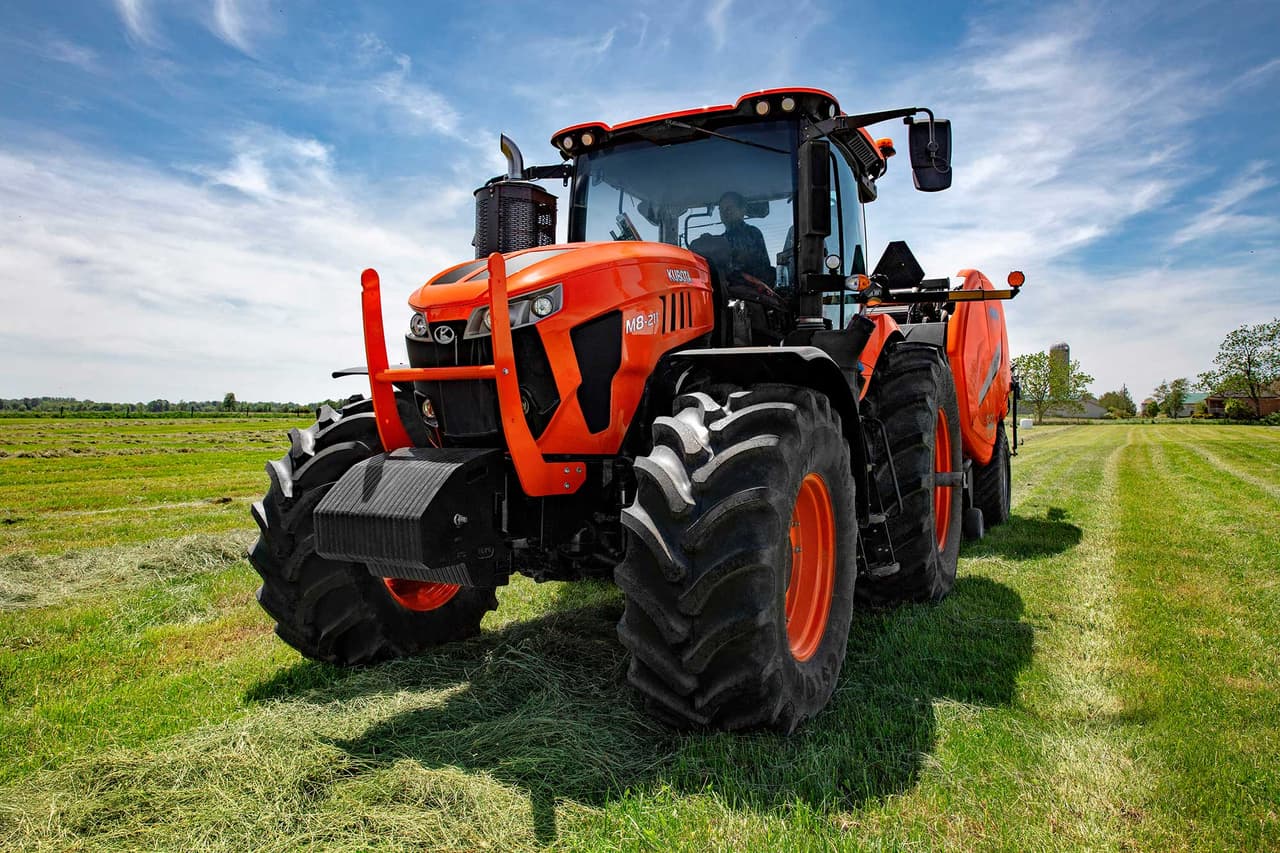

Kubota M8-201 Tractor

Kubota M8-201 vs. Similar Tractors

Power Output

Above Average

Greater than 73% of similar tractors.

Operating Weight

Average

Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: B6.7
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 408
Bore (in): 4.213
Stroke (in): 4.882
Rated RPM: 2100
Power Output (hp): 179.86

Transmission

Type: Six-speed power shift / Continuously-variable transmission
Forward Gears: 30
Reverse Gears: 15
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 128
Operating Weight (lb): 22090

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/IIIN
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center load sensing

Test Results

Nebraska Tractor Test Laboratory - Test Date: June 10 to July 15, 2020

Maximum Power and Fuel Consumption

Maximum Power: 179.86 HP (134.12 kW) at 2101 rpm (PTO speed: 1053 rpm)
Fuel Consumption at Maximum Power: 10.48 Gal/hr (39.68 l/h) with a fuel efficiency of 0.408 lb/hp.hr (0.248 kg/kW.h), generating 17.16 Hp.hr/gal (3.38 kW.h/l)
Standard PTO Speed (1000 rpm): 173.99 HP (129.75 kW) at 1995 rpm

Drawbar Performance

Power at Rated Engine Speed (10th Gear): 164.55 HP (122.70 kW) with a drawbar pull of 11954 lbs (53.17 kN) and a speed of 5.16 mph (8.30 km/h)
Fuel Consumption at Rated Speed: 0.444 lb/hp.hr (0.270 kg/kW.h) with a fuel efficiency of 15.77 Hp.hr/gal (3.11 kW.h/l)

Torque and Engine Performance

Maximum Torque: 563 lb.-ft. (763 Nm) at 1401 rpm
Torque Rise: 25.2% with a power increase at 1681 rpm of 19%

Hydraulic Performance

Maximum Force Exerted: 13930 lbs (62.0 kN) at hitch points
Pump Delivery Rate: 45.9 GPM (173.7 l/min) at 2248 engine rpm, and 43.1 GPM (163.2 l/min) at minimum pressure and 2108 engine rpm
Hydraulic Power: 68.3 HP (50.9 kW) at delivery pressure of 2755 psi (190 bar)

Overall Efficiency

Fuel Efficiency at Economy PTO Mode (1000 rpm at 1600 engine rpm): 18.63 Hp.hr/gal (3.67 kW.h/l) with a fuel consumption of 9.10 Gal/hr (34.44 l/h)
Fuel Efficiency at Standard PTO Mode (1000 rpm at 1995 engine rpm): 17.44 Hp.hr/gal (3.43 kW.h/l) with a fuel consumption of 9.72 Gal/hr (36.81 l/h)

NTTL.(2020). Nebraska OECD tractor test 2218 for Kubota M8-201 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
