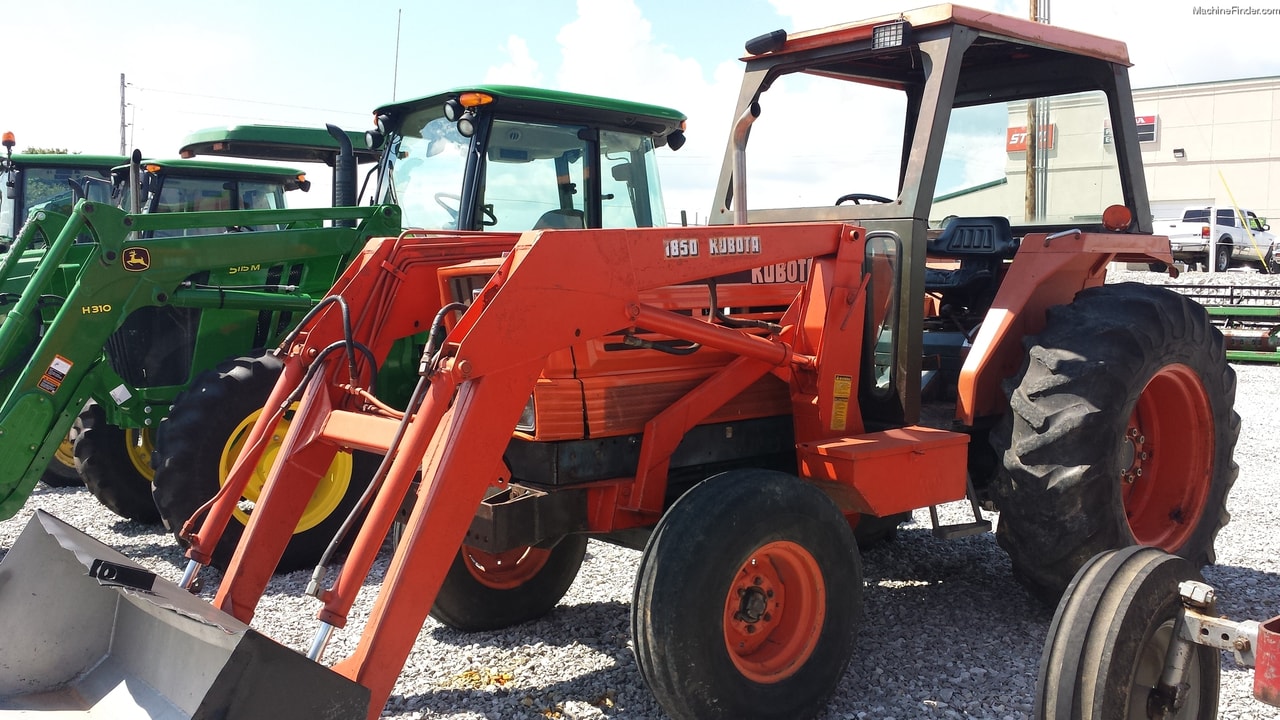

Kubota M7950

Last Updated: June 2024

Overview

The Kubota M7950 is a utility tractor that was manufactured by Kubota from 1983 to 1994. It features a 4-cylinder Kubota V4300 liquid-cooled engine with a displacement of 261.9 ci and a bore and stroke measuring 4.29 and 4.53 inches, respectively. The engine is rated at 81 horsepower and has a rated RPM of 2400. It boasts a power output of 81 hp, while the coolant capacity is 14.4 quarts. This tractor is compatible with a three-point hitch system of category II and has a synchronized transmission with 12 forward and 4 reverse gears. The length of the Kubota M7950 is 152.8 inches and the width is 78.2 inches. Its operating weight is listed at 7100 pounds equipped with a ROPS for safety. Though much information about the tractor's specific dimensions and other features is not detailed in the provided data, it's clear that this model serves as a robust workhorse suitable for various agricultural tasks.
Show more...

Key Specifications

Power Output: 81

Transmission: Synchronized

Operating Weight: 7100

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Kubota
Model
V4300
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
261.9
Bore (in)
4.29
Stroke (in)
4.53
Rated RPM
2400
Power Output (hp)
81

Transmission

Type
Synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
152.8
Width (in)
78.2
Height (in)
-
Operating Weight (lb)
7100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
14.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
1994
Hitch Type
Three-Point Hitch
Hitch Category
II (2)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Roll-Over Protection Structure)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
