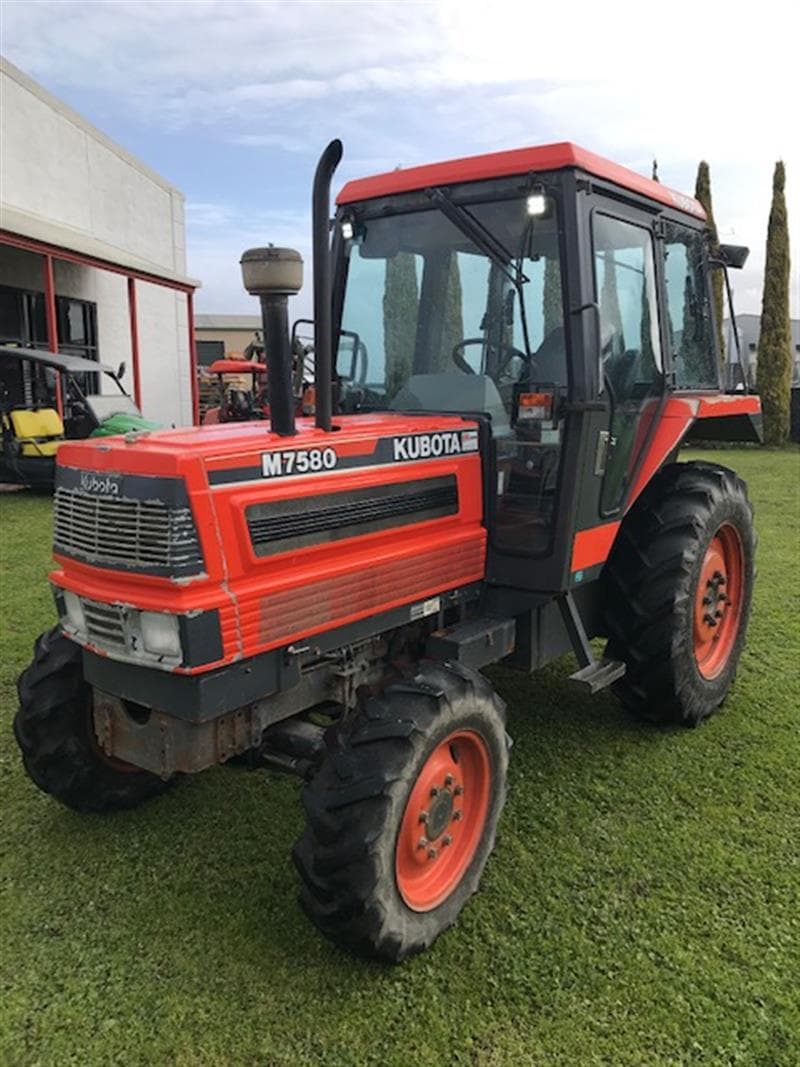

Kubota M7580

Last Updated: June 2024

Overview

The Kubota M7580 is a utility tractor that was manufactured by Kubota between 1991 and 1999. This tractor is powered by a 77 horsepower Kubota V4302-A diesel engine, with a displacement of 264 cubic inches and a rated engine speed of 2400 RPM. It features a liquid-cooling system to ensure reliable operation under various working conditions. The power shuttle transmission provides 12 forward and reverse gears, facilitating various tasks without the need for frequent gear changes. This model typically comes with a chassis configuration that suggests a 4x2 wheelbase, often seen in utility tractors, although the exact drive type is not specified in the provided data. With a wheelbase of 90.6 inches and an operating weight of 6834 pounds, the M7580 showcases a solid build suitable for a wide range of agricultural tasks. It has multiple tire configurations suited for agricultural or lawn/turf operations, giving customers flexibility depending on their specific needs. The dimensions of this tractor demonstrate that it can navigate and operate efficiently in many environments, from more open fields to tighter spaces. Additional specifications about the hydraulic system, PTO, hitch, and operator station are not available, which would provide a more detailed understanding of the tractor’s capabilities.
Show more...

Key Specifications

Category: Utility

Power Output: 77

Transmission: Power shuttle

Operating Weight: 6834

Fuel Type: Diesel

Kubota M7580 vs. Similar Tractors

Power Output
Average
Greater than 69% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V4302-A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
264
Bore (in)
4.13
Stroke (in)
4.92
Rated RPM
2400
Power Output (hp)
77

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
Unknown (assuming equal forward and reverse gears)

Dimensions

Length (in)
154.6
Width (in)
79.1
Height (in)
103.3 (with cab)
Operating Weight (lb)
6834

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 (based on tire configuration and common utility tractor design)
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
15.2
Front Tire Diameter (in)
Unknown (wheel size provided, but not tire diameter)
Front Tire Width (in)
12.4 (based on standard tire size)
Rear Tire Diameter (in)
Unknown (wheel size provided, but not tire diameter)
Rear Tire Width (in)
18.4 (based on standard tire size)
Front/Rear Rim Diameter (in)
Unknown (tire sizes are given, but rim sizes are not specified)
Tire Type
Unknown (multiple tire options listed, type not specified)
Manufacture - End Year
1999
Hitch Type
Unknown (Rear Type II suggests three-point hitch, but not explicitly indicated)
Hitch Category
Unknown (Rear Type II suggests Category 2, but says "Category 3" in instructions—assuming error)
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Unknown (height with cab suggests a cab option, no confirmation on presence of open station)
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
