Kubota M7152

Last Updated: June 2024

Overview

The Kubota M7152 is a robust row-crop tractor that provides a substantial power output for various agricultural tasks. It's equipped with a Kubota V6108-CR four-cylinder, 16-valve, turbocharged intercooled diesel engine that provides a power output of 150 hp and peak torque of 508 lb-ft at 1500 RPM. The tractor features a 6-speed power shift transmission with a total of 30 forward and 15 reverse gears, offering versatility and precision in speed control for different kinds of work. The 4x4 MFWD (Mechanical Front Wheel Drive) chassis and power steering allow for better maneuverability and control across varying terrains. The M7152 started production in 2018 and continued through 2020, positioning itself as a reliable machine during its manufacturing period.

Key Specifications

Category: Row Crop

Power Output: 150

Transmission: 6-speed power shift

Drive Type: 4WD

Operating Weight: 13889

Fuel Type: Diesel

Image Gallery

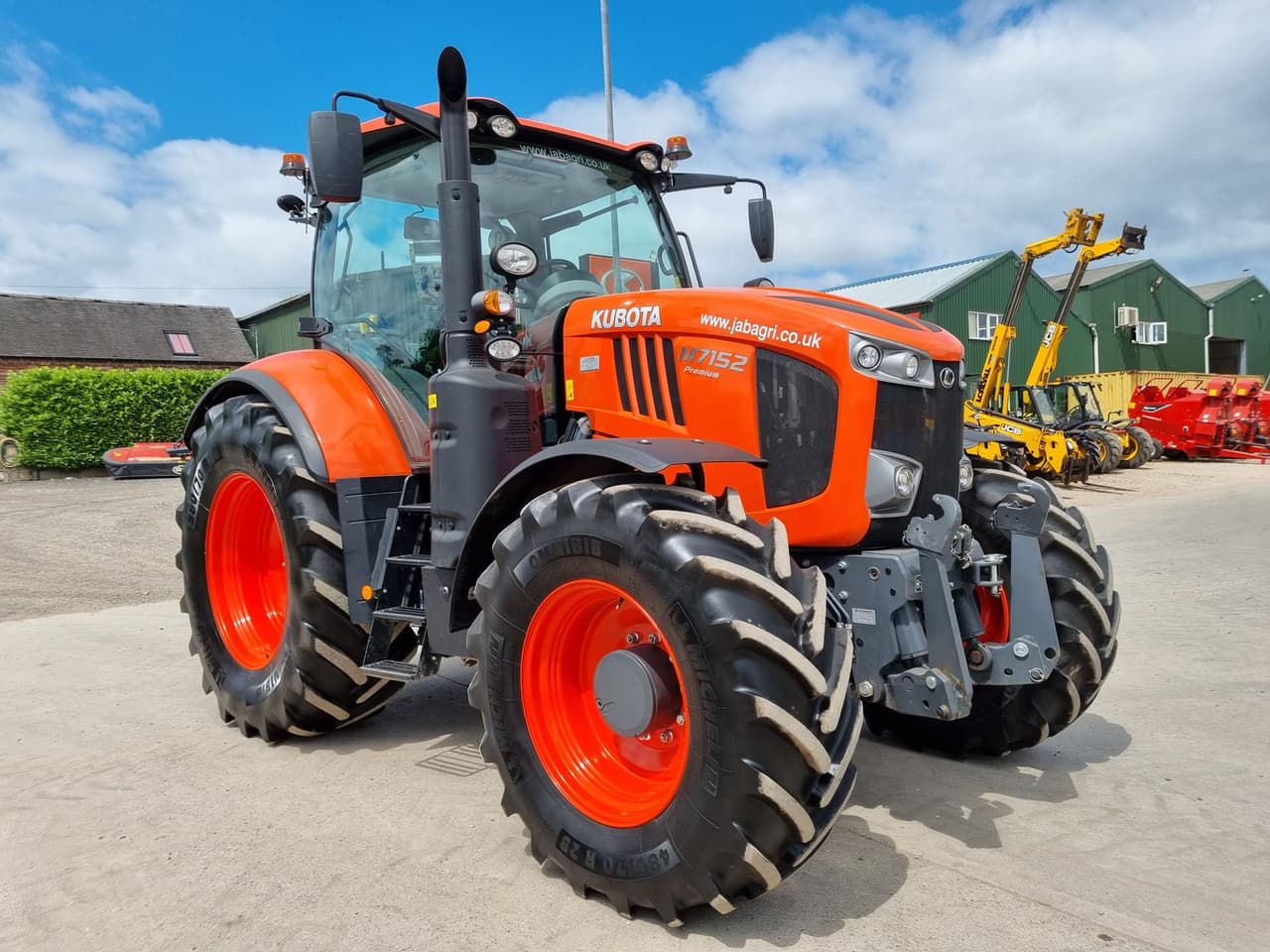

Kubota M7152 Tractor

Kubota M7152 vs. Similar Tractors

Power Output

Average

Greater than 54% of similar tractors.

Operating Weight

Average

Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V6108-CR
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 16-valve
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 373.7
Bore (in): 4.65
Stroke (in): 5.51
Rated RPM: 1900
Power Output (hp): 150

Transmission

Type: 6-speed power shift
Forward Gears: 30
Reverse Gears: 15
Total Gears: -

Dimensions

Length (in): 187.8
Width (in): 98.4
Height (in): 119.3
Operating Weight (lb): 13889

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard ag
Manufacture - End Year: 2020
Hitch Type: Category III
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Load sensing variable displacement
