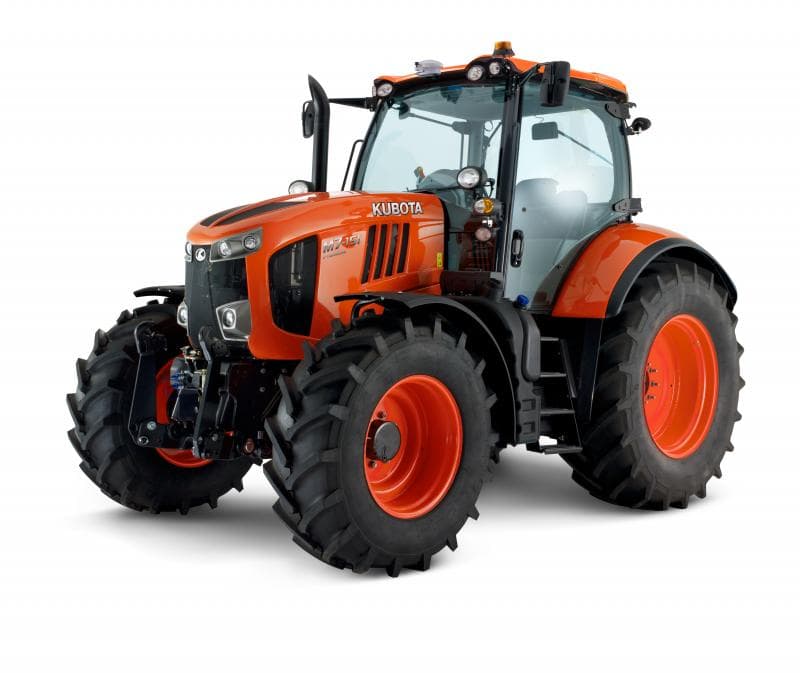

Kubota M7132

Last Updated: June 2024

Overview

The Kubota M7132 is a row-crop tractor designed for various agricultural tasks. This model is equipped with a Kubota V6108-CR turbocharged intercooled diesel engine with an impressive displacement of 373.7 cubic inches, which delivers a rated power output of 130 hp and can reach up to 150 hp. It operates at a rated RPM of 1900 and provides substantial torque at 443 lb-ft, which is available at 1500 RPM. The M7132 supports a 4WD chassis, showcasing power steering for improved maneuverability and a 30-speed power shift transmission, enabling a wide range of speed options for different farming conditions. The tractor's substantial operating weight of 13889 lbs provides stability and traction when performing field work. Manufactured between 2018 and 2020, this model is substantial in size with a length of 187.8 inches, a width of 98.4 inches, and a height of 119.3 inches, delivering a robust platform for heavy-duty applications. A standard three-point hitch with Category 3 is provided, although the lift capacity remains unspecified. The M7132 is a testament to Kubota's dedication to producing reliable and high-performing agricultural machinery.
Show more...

Key Specifications

Category: Row Crop

Power Output: 130

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 13889

Fuel Type: Diesel

Kubota M7132 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
1900
Power Output (hp)
130

Transmission

Type
Power shift
Forward Gears
30
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
187.8
Width (in)
98.4
Height (in)
119.3
Operating Weight (lb)
13889

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2020
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
