Kubota M7060

Last Updated: June 2024

Overview

The Kubota M7060 is a multi-functional utility tractor suited for a variety of tasks in the field, yard, and for livestock operations. Engineered with a turbocharged diesel engine, this tractor brings considerable power and efficiency. The power shuttle with wet disc clutch transmission system offers smooth gear shifting and robust performance, capable of handling demanding tasks. The tractor provides practical features such as a two-post foldable ROPS or an enclosed cab option with air conditioning, promoting operator comfort and safety. Tailored for ease of use, the Kubota M7060 is designed for durability, reliability and versatility, supporting a range of attachments for diverse agricultural needs.

Key Specifications

Category: Utility

Power Output: 71

Transmission: Power Shuttle with Wet Disc Clutch

Drive Type: 4WD

Operating Weight: 5247 (2WD Cab), 5380 (4WD Cab), 5027 (4WD ROPS)

Fuel Type: Diesel

Image Gallery

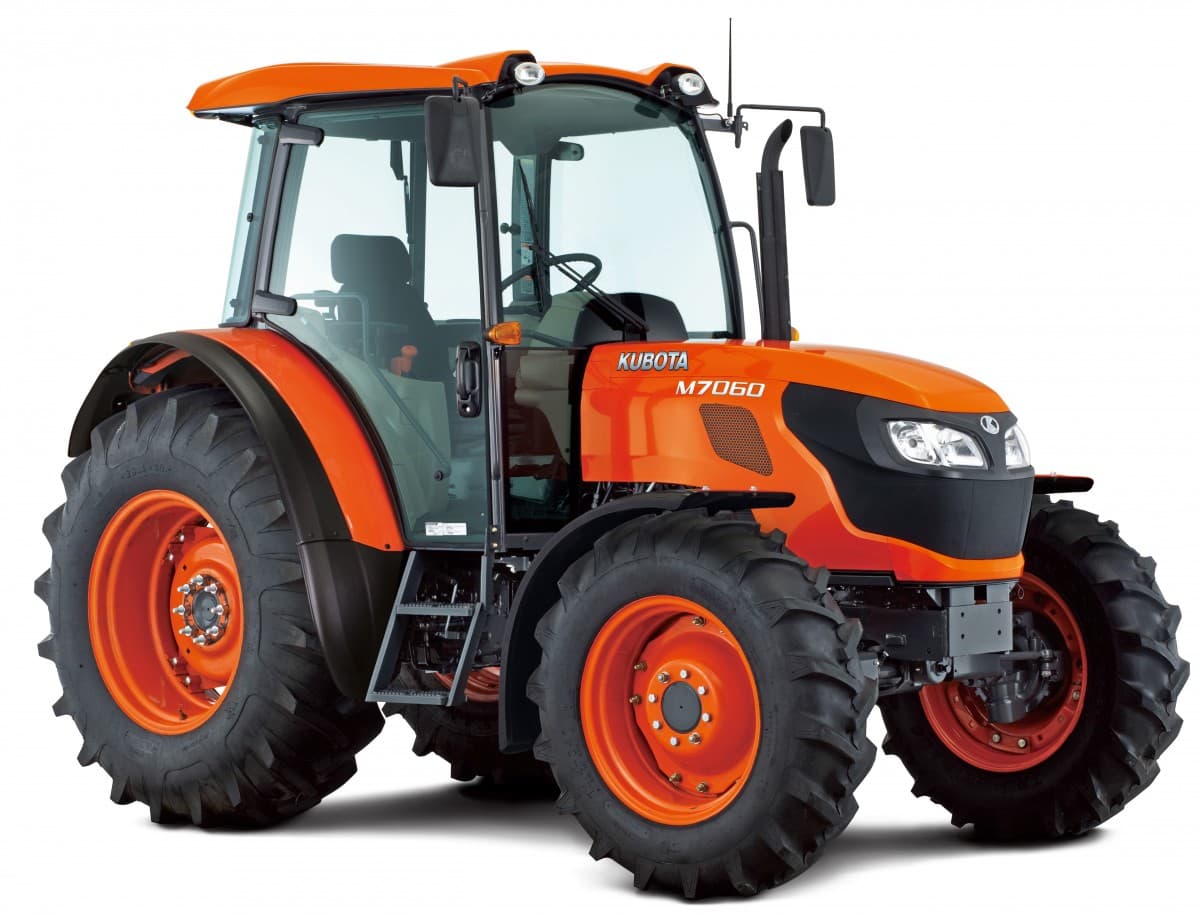

Kubota M7060 Tractor

Kubota M7060 vs. Similar Tractors

Power Output

Average

Greater than 65% of similar tractors.

Hitch Capacity

Above Average

Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3307-CR-TE4
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 203.3
Bore (in): 3.7
Stroke (in): 4.72
Rated RPM: 2400 (Assumed, common for this engine type)
Power Output (hp): 71

Transmission

Type: Power Shuttle with Wet Disc Clutch
Forward Gears: 12 (Assumed, based on available model information)
Reverse Gears: 12 (Assumed, based on available model information)
Total Gears: -

Dimensions

Length (in): 142.7 (2WD), 138.0 (4WD)
Width (in): 73.2
Height (in): 101
Operating Weight (lb): 5247 (2WD Cab), 5380 (4WD Cab), 5027 (4WD ROPS)

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540E
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 8.45
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Three-point hitch (Inferred from Category II/I)
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): 4190
Operator Station Type: Two-post foldable ROPS or Ultra Grand Cab with air-conditioning
Starter Type: Electric
Brake Type: Mechanically operated wet disc (F8/R8 model) or Hydraulically operated wet disc (F12/R12 model)
Hydraulic System Type: Open center
