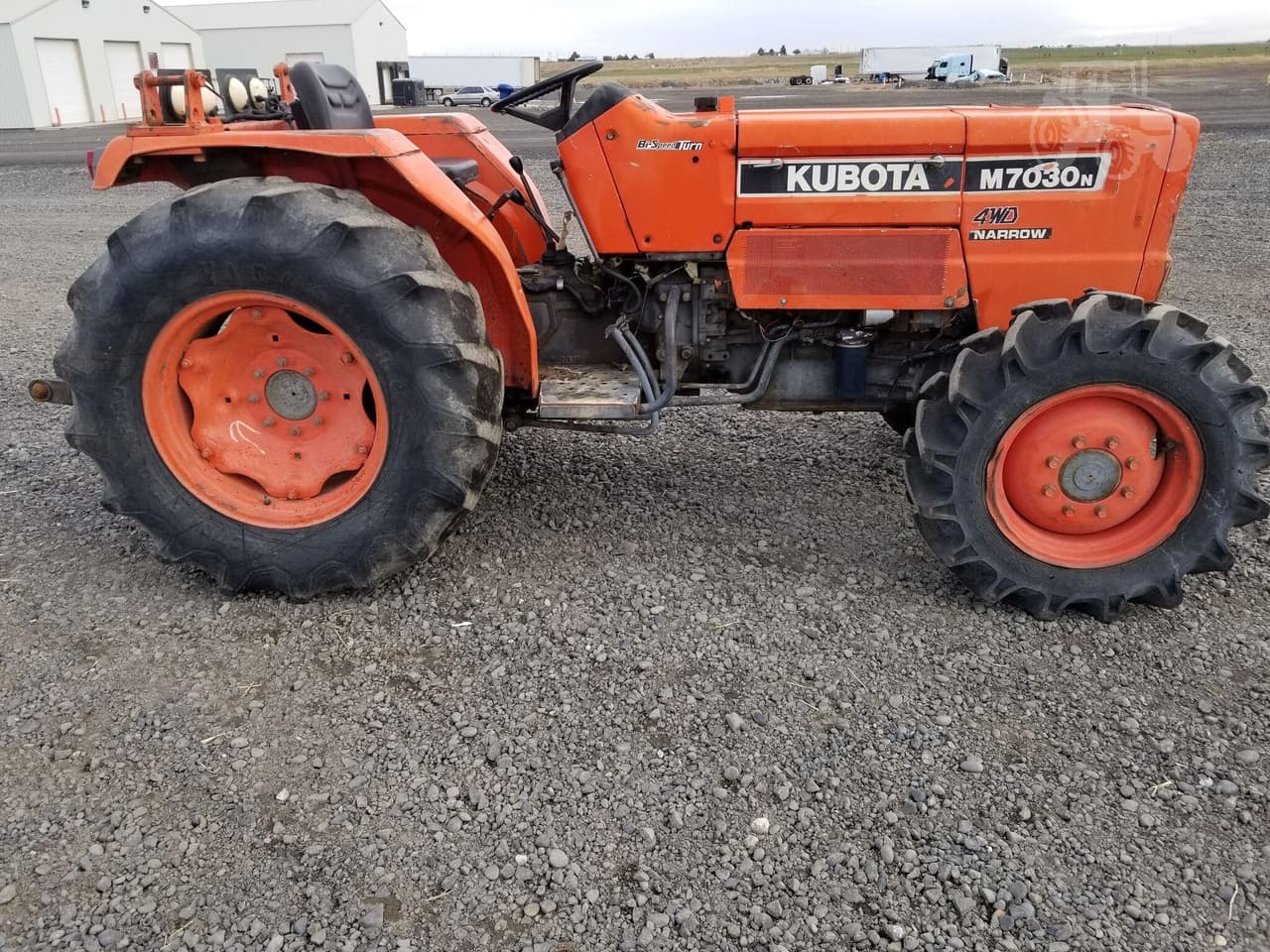

Kubota M7030

Last Updated: June 2024

Overview

The Kubota M7030, manufactured from 1986 to 1998, is a utility tractor known for its versatility in various farming tasks. It is propelled by a robust Kubota V4000 diesel engine with a displacement of 243.1 cubic inches, delivering a power output of 71 horsepower. The engine operates at a rated 2400 RPM and features a liquid-cooling system to manage heat efficiently. Equipped with a manual transmission that offers 16 forward and 4 reverse gears, the M7030 facilitates a wide range of speeds suitable for different agricultural operations. The tractor supports a two-wheel drive chassis, with larger optional tires indicating that it can be used in various terrains and conditions. Its hydraulic system employs an open-center type for reliable operation. While many details such as the starter type and specific physical dimensions are not explicitly specified, the M7030 tractor remains a critical asset for those engaged in farming or land maintenance tasks, offering a balance of power and maneuverability.
Show more...

Key Specifications

Category: Utility

Power Output: 71

Transmission: Manual (assumed based on the mention of a clutch)

Operating Weight: 4982 to 6040

Fuel Type: Diesel

Kubota M7030 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V4000
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural (assumed because there's no mention of turbo or supercharging)
Cylinders
4
Displacement (ci)
243.1
Bore (in)
4.13
Stroke (in)
4.53
Rated RPM
2400
Power Output (hp)
71

Transmission

Type
Manual (assumed based on the mention of a clutch)
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
76.4
Height (in)
-
Operating Weight (lb)
4982 to 6040

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
2WD/4WD (assumed based on wheelbase and tire options provided)
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
14.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (assumed based on "Standard tires (ag)" and "Optional tires (ag)" mentions)
Manufacture - End Year
1998
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (indicated by "Engine - Starter volts: 12")
Brake Type
-
Hydraulic System Type
Open Center
