Kubota M7-171S-PS

Last Updated: June 2024

Overview

The Kubota M7-171S-PS represents a formidable player in the agricultural machinery market, combining considerable power with advanced transmission technology. With an engine rated at 168 horsepower and turbocharged for enhanced performance, it underscores Kubota's commitment to power and efficiency. The Continuous Variable Transmission (CVT) with 24 gears in both forward and reverse directions allows for seamless shifting and operational control. This versatility is further highlighted by the tractor's robust hydraulic system capable of accommodating up to five remote control valves and a significant 3-point hitch lift capacity of nearly 11800 pounds. Designed to meet the challenges of modern farming, the M7-171S-PS, although the year of its manufacture start and end remains unknown, is set to be a reliable tool with an operating weight of over 14500 pounds for heavy-duty tasks.

Key Specifications

Category: Utility

Power Output: 168

Transmission: CVT

Operating Weight: 14546.1

Lift Capacity: 11794.8

Image Gallery

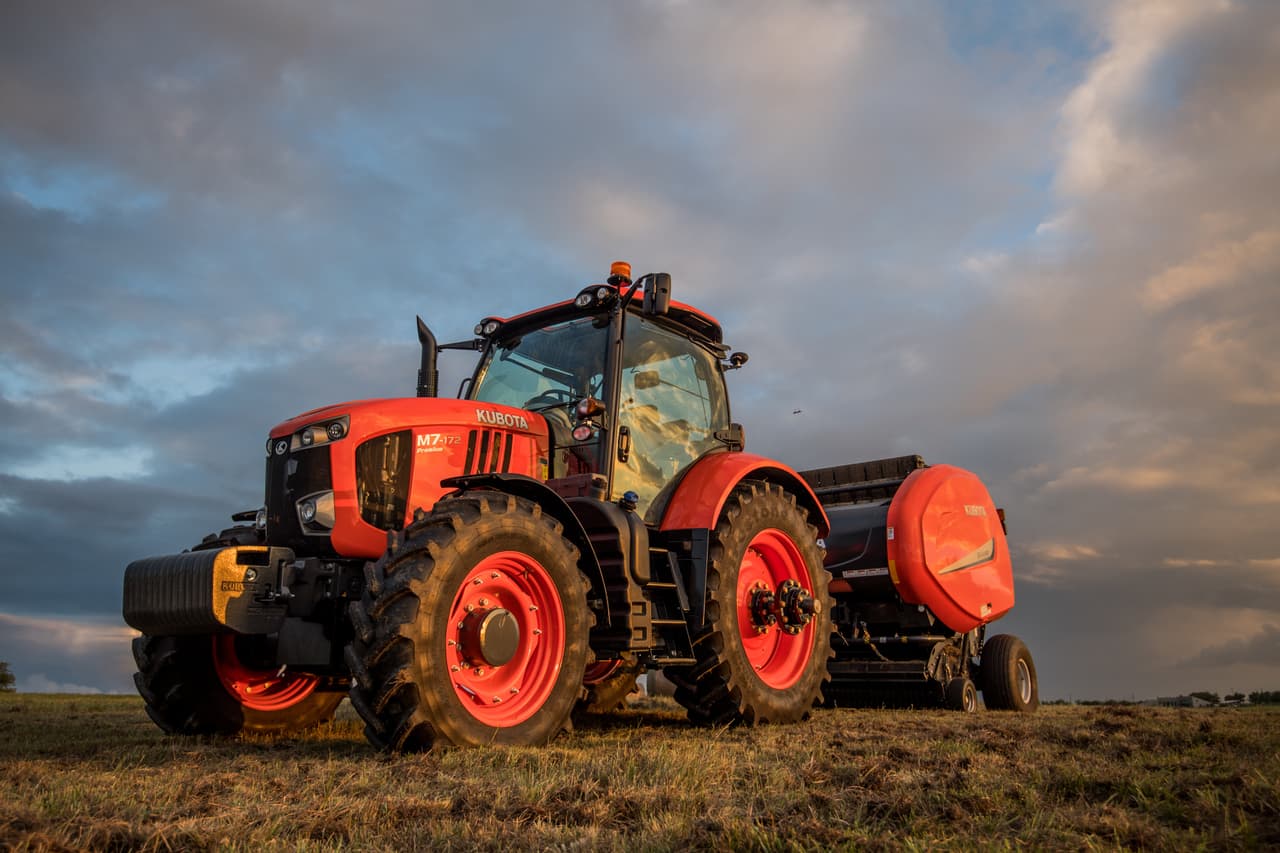

Kubota M7-171S-PS Tractor

Kubota M7-171S-PS vs. Similar Tractors

Power Output

Excellent

Greater than 91% of similar tractors.

Hitch Capacity

Above Average

Greater than 87% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: Direct Injection
Fuel Type: -
Induction Type: Turbocharger with intercooler
Cylinders: 4
Displacement (ci): 374
Bore (in): 4.7
Stroke (in): 5.6
Rated RPM: 2200
Power Output (hp): 168

Transmission

Type: CVT
Forward Gears: 24
Reverse Gears: 24
Total Gears: -

Dimensions

Length (in): 187.8
Width (in): 110.4 (Converted from 9.2 ft)
Height (in): 120 (Converted from 10 ft)
Operating Weight (lb): 14546.1

Power Take-Off (PTO)

PTO Type: Flanged axle only
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 24 (Calculated from tire specification 14.9 R24, assuming R24 indicates a 24-inch rim diameter)
Front Tire Width (in): 14.9
Rear Tire Diameter (in): 38 (Calculated from tire specification 18.4 R38, assuming R38 indicates a 38-inch rim diameter)
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): Front: 24, Rear: 38
Tire Type: -
Manufacture - End Year: -
Hitch Type: Telescopic lower link
Hitch Category: Category 3 / 3N
Hitch Position: -
Hitch Capacity (lb): 11794.8
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Maximum 5 valves
