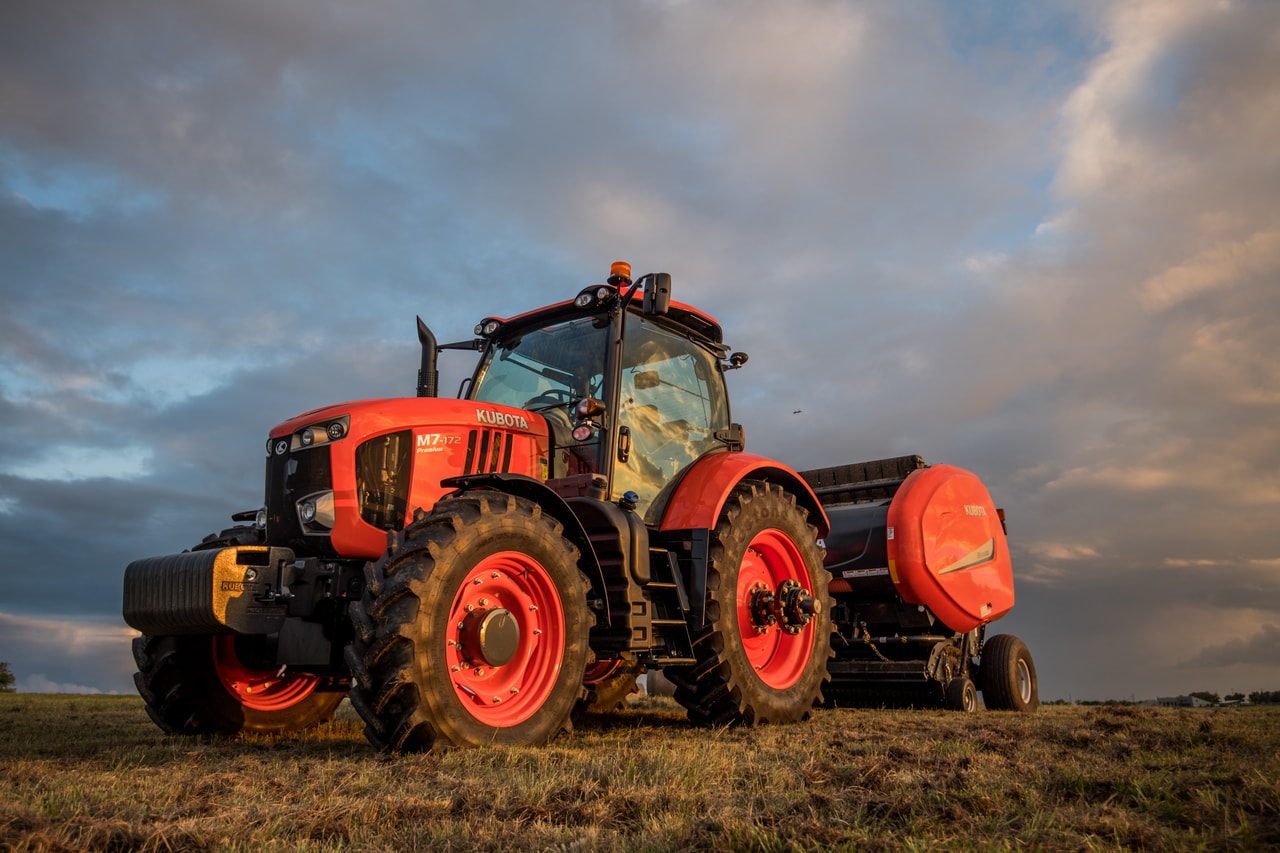

Kubota M7-171P-PS

Last Updated: August 2024

Overview

The Kubota M7-171P-PS is a tractor designed with a powerful Kubota engine which provides a horsepower output of 168 hp and a PTO horsepower of 140 hp. This model operates with a 4-cylinder engine featuring a cylinder displacement of 374 cubic inches, a bore of 4.7 inches, and a stroke of 5.6 inches, all while reaching up to 2200 rated RPM. The tractor's direct-injection engine is turbocharged with an intercooler system that enhances its efficiency and performance. This tractor features a CVT (Continuously Variable Transmission) with an impressive 24 forward and 24 reverse gears that enable seamless and precise speed control whether in agricultural tasks or moving between fields. The tractor's operating weight is substantial, coming in at 15,097.3 pounds, making it a sturdy option for heavy-duty operations. Additionally, the machine is equipped with ample hydraulic capabilities and can accommodate up to 5 remote control valves, while the 3-point hitch at the rear has a significant lift capacity of 11,794.8 pounds, making it suitable for various implements. Tires are sized at 14.9 R24 for the front and 18.4 R38 for the rear, ensuring both stability and proper traction across different terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 168

Transmission: CVT

Operating Weight: 15097.3

Lift Capacity: 11794.8

Kubota M7-171P-PS vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Hitch Capacity
Above Average
Greater than 87% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
Direct Injection
Fuel Type
-
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
374
Bore (in)
4.7
Stroke (in)
5.6
Rated RPM
2200
Power Output (hp)
168

Transmission

Type
CVT
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
187.8
Width (in)
110.4
Height (in)
120
Operating Weight (lb)
15097.3

Power Take-Off (PTO)

PTO Type
110 inch bar axle
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Front - Radial R24, Rear - Radial R38
Manufacture - End Year
-
Hitch Type
Telescopic lower link
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
11794.8
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
