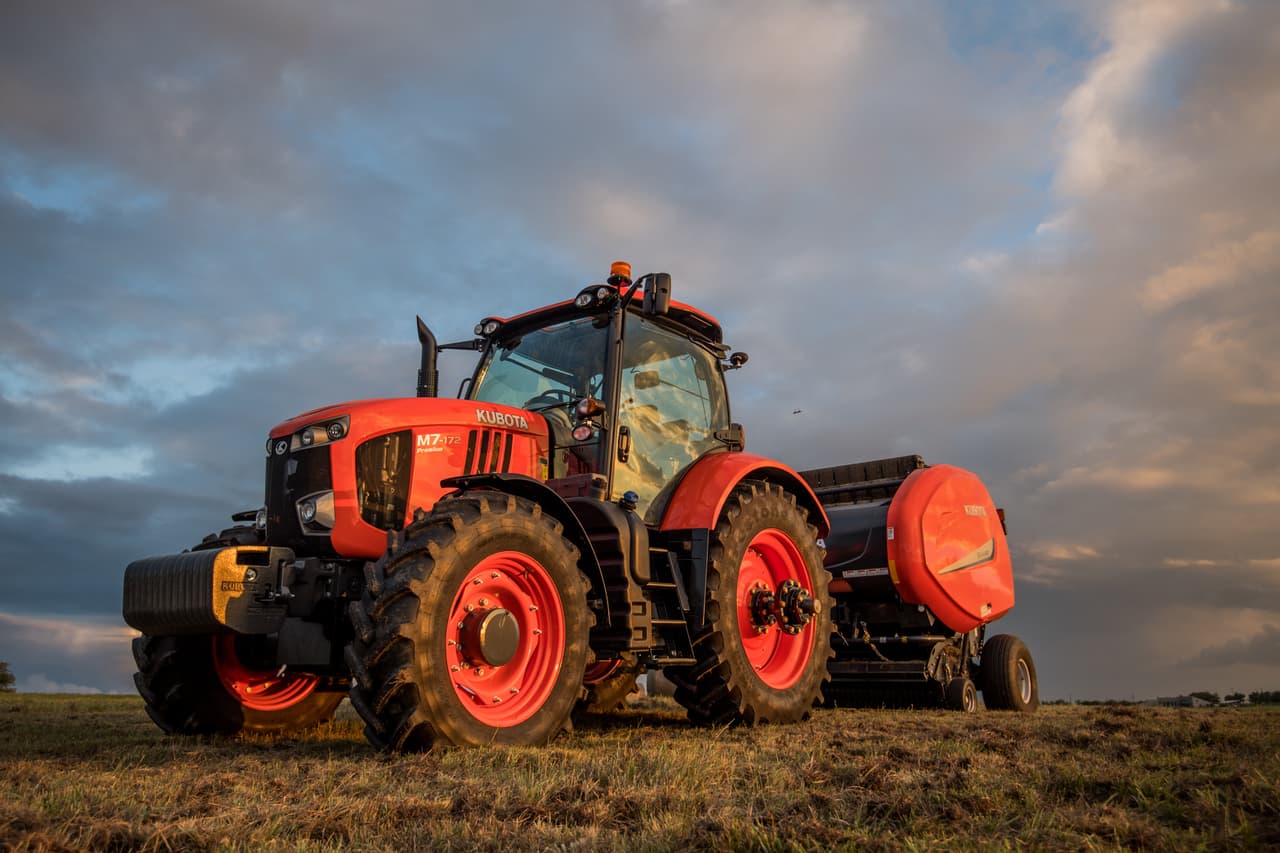

Kubota M7-171P-KVT

Last Updated: June 2024

Overview

The Kubota M7-171P-KVT is equipped with a Kubota V6108-CR-TIEF4 diesel engine that delivers 168 horsepower with a power measured at 2200 rpm and offers a torque of 500.9 lbs/ft measured at 1400 rpm. The tractor features a KVT (Kubota Variable Transmission) which is not specified in terms of the number of gears. This machine is built with a Category 3/3N three-point hitch system with a rear hitch position capable of lifting up to 11794.8 lbs. It's supported by hydraulically operated wet disc brakes and an electronic draft control hydraulic system. With a gross power of 168 hp and a PTO power of 140.1 hp, the tractor accommodates various tasks and implements. Its tires are sized 14.9R28 on the front and 18.4R38 on the rear, which are likely radial type, and has a maximum speed of 25 mph. This tractor also operates with an impressive fuel tank capacity of 87.2 gallons, supporting longer working hours without the need for frequent refueling.
Show more...

Key Specifications

Category: Utility

Power Output: 168

Transmission: KVT (Kubota Variable Transmission)

Operating Weight: 15097.3

Fuel Type: Diesel

Lift Capacity: 11794.8

Kubota M7-171P-KVT vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Hitch Capacity
Above Average
Greater than 87% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR-TIEF4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
374
Bore (in)
4.7
Stroke (in)
5.6
Rated RPM
2200
Power Output (hp)
168

Transmission

Type
KVT (Kubota Variable Transmission)
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
187.8
Width (in)
110.4
Height (in)
120
Operating Weight (lb)
15097.3

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
540E
PTO Speed 3 (rpm)
1000

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
24.2
Front Tire Diameter (in)
28
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Front - Radial | Rear - Radial
Manufacture - End Year
-
Hitch Type
Category 3/3N
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
11794.8
Operator Station Type
-
Starter Type
-
Brake Type
Hydraulically operated wet disc brakes
Hydraulic System Type
Electronic draft control
