Kubota M6H-101

Last Updated: June 2024

Overview

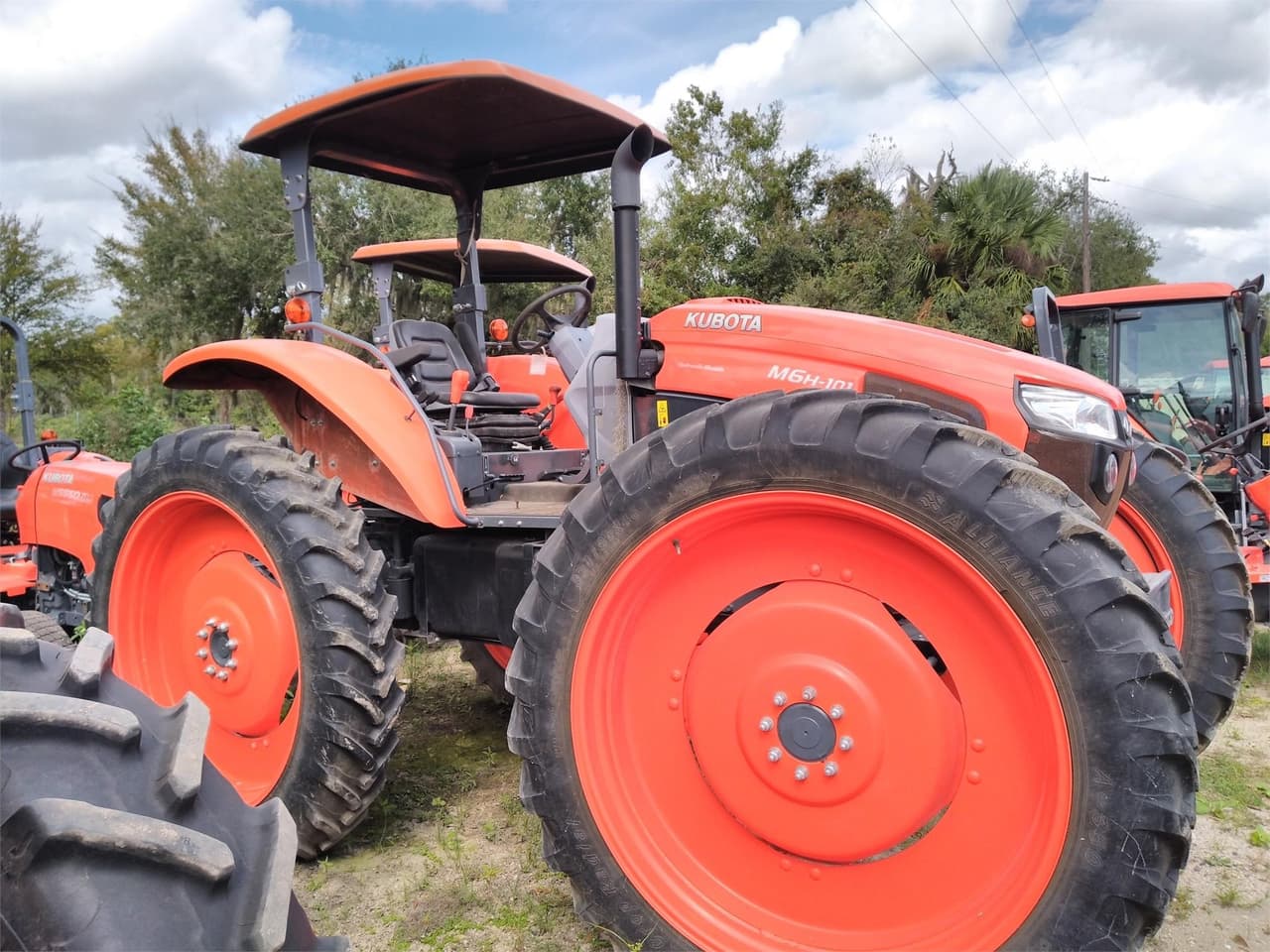

The Kubota M6H-101 is a tractor that comes with a robust Kubota V3800-TIEF4 engine producing a gross power output of 104.4 horsepower at 2600 rpm, and a PTO power of 84 hp. It features a hydraulic wet clutch system and an engine displacement of 203 cubic inches with four cylinders. Additionally, the tractor boasts of a significant operating weight of 8157.2 pounds. The overall length of the tractor is indicated as 168.4 inches, with a wheelbase of 7.9 feet, providing stability and support for various tasks. The M6H-101 is fitted with steel tires, both front and rear having diameters of 38 inches and widths of 13.6 inches, offering reliable traction and performance. The hydraulic system is capable of a pump flow capacity of 17.6 gallons per minute, suitable for a range of hydraulic implements. The alternator supplied amperage is 80 A, ensuring adequate power supply for all electrical needs. This model is designed to cater to various agricultural duties with efficiency and reliability.
Show more...

Key Specifications

Category: Utility

Power Output: 104.4

Operating Weight: 8157.2

Kubota M6H-101 vs. Similar Tractors

Power Output
Above Average
Greater than 83% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-TIEF4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
203
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
104.4

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
168.4
Width (in)
80.7 (incorrect CEG_Width data as "6.7 ft in (15 cm)")
Height (in)
112.2 (based on CEG_Height - Top of Cab)
Operating Weight (lb)
8157.2

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
38 (based on standard tire information)
Front Tire Width (in)
13.6 (based on standard tire information)
Rear Tire Diameter (in)
38 (based on standard tire information)
Rear Tire Width (in)
13.6 (based on standard tire information)
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
