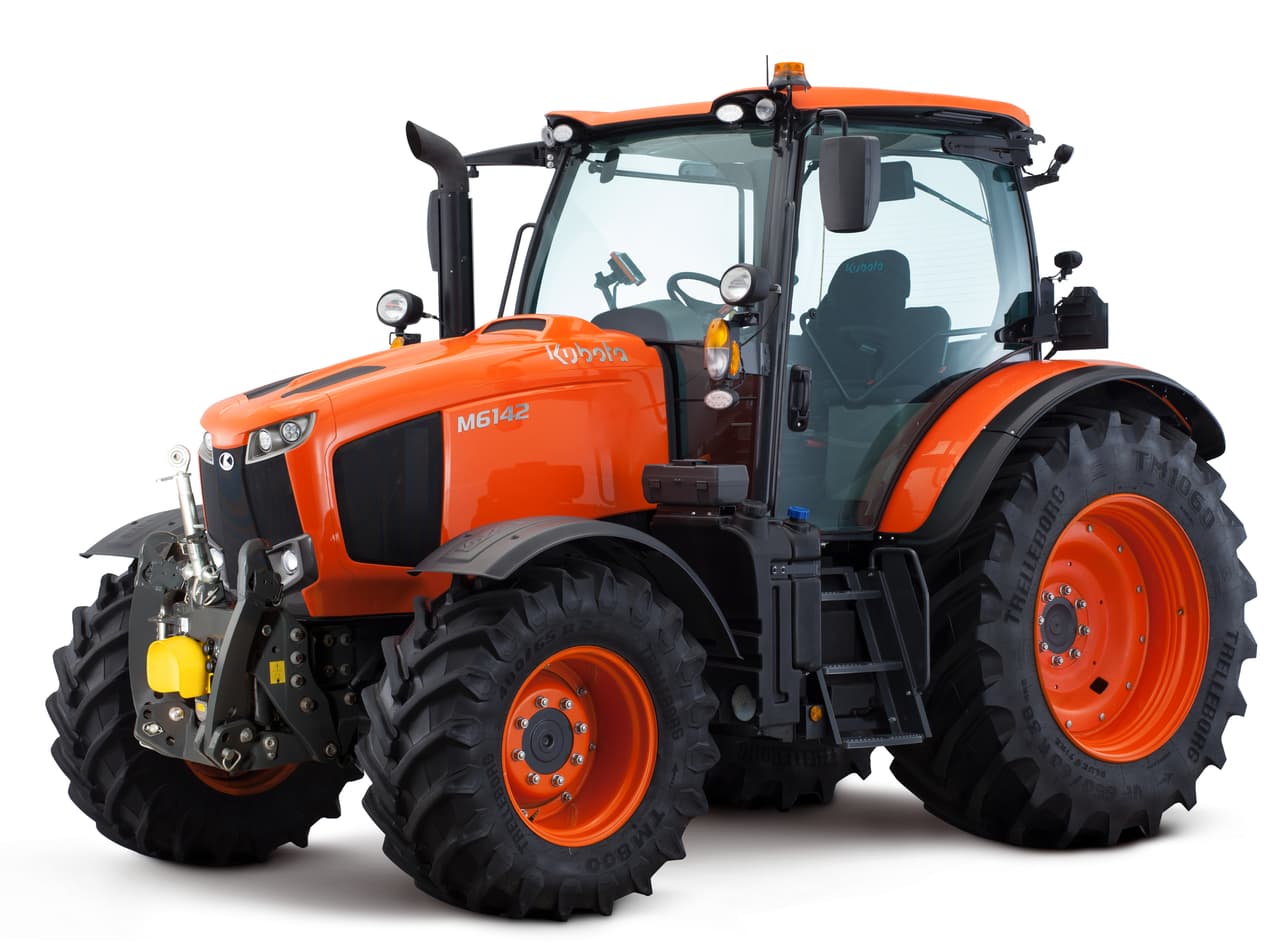

Kubota M6142

Last Updated: June 2024

Overview

The Kubota M6142 is a utility tractor designed for a variety of agricultural tasks, from field work to livestock management. As part of the M6002 Series manufactured since 2020, this model boasts a robust 4-cylinder, 16-valve turbocharged intercooled diesel engine that delivers a rated power of 142 hp and a maximum power of 161 hp. It is equipped with a comprehensive 24-speed eight-speed power shift transmission system that provides 24 forward and reverse gears, including a creeper function, to handle a wide range of activities. With a significant weight of 13,228 lbs and dimensions ranking at a length of 181.9 inches, a width of 83.1 inches, and a cab height of 113.8 inches, it showcases its durable design and presence. It rides on standard agricultural tires and possesses a wheelbase of 105.9 inches, ensuring stability and traction during operation. The tractor features a closed-center load-sensing hydraulic system and a Category 3 rear hitch, making it compatible with a wide array of attachments and implements. The M6142 provides a comfortable operator station enclosed in a cab, essential for long hours in the field, and features an electric starter for reliable ignition.
Show more...

Key Specifications

Category: Utility

Power Output: 142

Transmission: 24-speed eight-speed power shift

Drive Type: 4WD

Operating Weight: 13228

Fuel Type: Diesel

Kubota M6142 vs. Similar Tractors

Power Output
Excellent
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
1900
Power Output (hp)
142

Transmission

Type
24-speed eight-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
24

Dimensions

Length (in)
181.9
Width (in)
83.1
Height (in)
113.8 (cab height)
Operating Weight (lb)
13228

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center load-sensing
