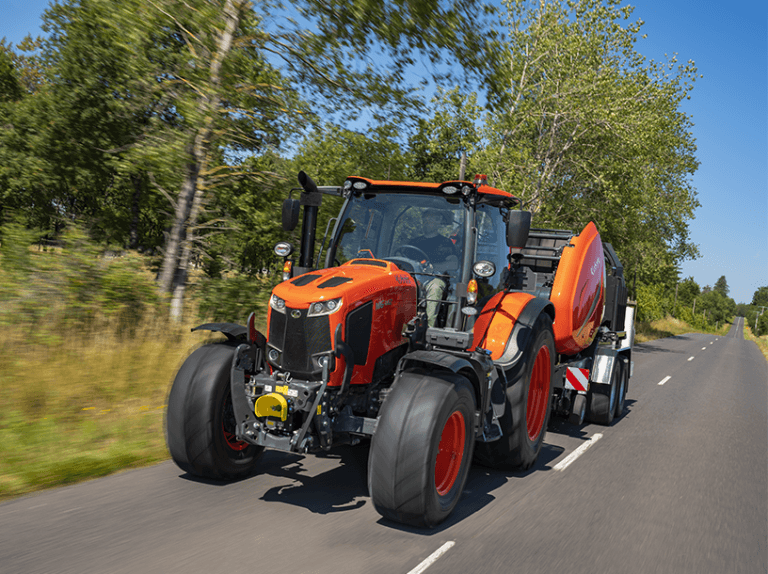

Kubota M6132

Last Updated: June 2024

Overview

The Kubota M6132 is a utility tractor designed for various agricultural tasks. It features a 4x4 MFWD 4WD chassis, providing stability and traction over different terrains. The tractor is powered by a 132 hp Kubota V6108 turbocharged intercooled diesel engine with a displacement of 373.7 ci and a liquid cooling system. With an engine rated for 1900 RPM and a torque of 438.1 lb-ft, this model offers robust performance. The eight-speed power shift transmission includes 24 forward and reverse gears, suitable for a wide range of tasks. The tractor's dimensions are 181.9 inches in length, 83.1 inches in width, and 113.8 inches in height, with a cab for the operator's comfort. The operating weight is 13228 lbs, and the three-point hitch is a Category 3 type located at the rear. The hydraulic system is a closed-center load-sensing type, ensuring efficient power delivery to attachments. This model was first manufactured in 2020, and as of the knowledge cutoff date, the end of manufacturing is unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 132

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 13228

Fuel Type: Diesel

Kubota M6132 vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
1900
Power Output (hp)
132

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
181.9
Width (in)
83.1
Height (in)
113.8 (cab)
Operating Weight (lb)
13228

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
