Kubota M6040

Last Updated: June 2024

Overview

The Kubota M6040 is a utility tractor, available in both two-wheel drive and four-wheel drive variants. Produced by Kubota between the years 2007 and 2010, the M6040 was designed to serve a variety of agricultural tasks. It runs on a Kubota V3307-DI four-cylinder, liquid-cooled, diesel engine with a displacement of 203.3 cubic inches. With two transmission options, Synchro-Shuttle and Hydraulic Shuttle — both providing 8 forward and 8 reverse gears — the M6040 caters to a range of field operations. This model comes with either an open operator station with ROPS or a cab option fitted with air-conditioning. It offers hydrostatic power steering and multiple wet disc brakes for smooth and efficient operating experience. The hydraulic system is an open center type, and the PTO is independent, with a 540 rpm capacity.

Key Specifications

Category: Utility

Power Output: 62

Transmission: Partially synchronized or Power shuttle

Drive Type: 2WD or MFWD 4WD

Operating Weight: 4650 (2WD ROPS) to 5445 (4WD Cab)

Fuel Type: Diesel

Image Gallery

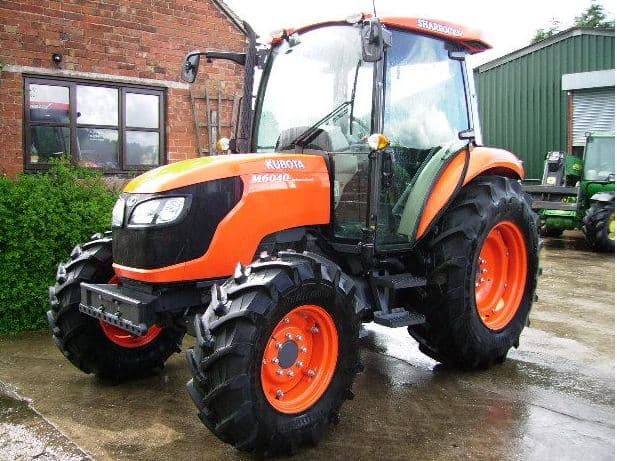

Kubota M6040 Tractor

Kubota M6040 vs. Similar Tractors

Power Output

Average

Greater than 59% of similar tractors.

Hitch Capacity

Above Average

Greater than 71% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3307-DI
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 4
Displacement (ci): 203.3
Bore (in): 3.7
Stroke (in): 4.72
Rated RPM: 2600
Power Output (hp): 62

Transmission

Type: Partially synchronized or Power shuttle
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 143 (2WD with Cab), 136 (4WD with ROPS), 139 (4WD with Cab) [Approximations from mm data]
Width (in): 73.2
Height (in): 100.6 (Cab), 96.9 (ROPS)
Operating Weight (lb): 4650 (2WD ROPS) to 5445 (4WD Cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 8.45
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial
Manufacture - End Year: 2010
Hitch Type: II/I
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 4190 lbs
Operator Station Type: Open or Cab
Starter Type: Electric
Brake Type: Multiple wet discs
Hydraulic System Type: Open center
