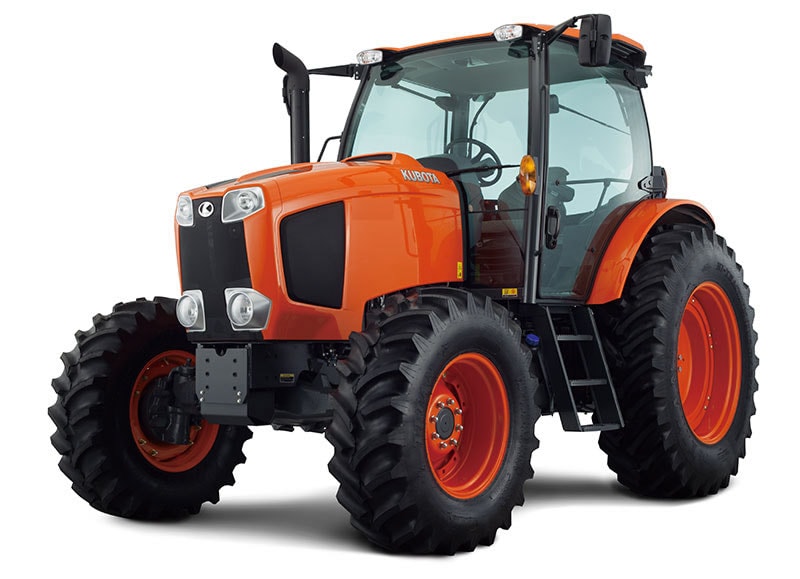

Kubota M6-141DTSCC-F

Last Updated: June 2024

Overview

The Kubota M6-141DTSCC-F is a utility tractor that comes equipped with a Kubota V-3800-CR-TIER4 engine. This engine is a liquid-cooled, four-cylinder diesel, utilizing a common rail system with direct injection, and is turbocharged with an intercooler. The engine has a displacement of 374 cubic inches, bore and stroke of 4.7 inches and 5.6 inches, respectively, with a gross power output of 141.4 hp at a rated RPM of 2200. The M6-141DTSCC-F's PTO power stands at 114 hp. For the transmission, it features 24 forward and 24 reverse gears, providing versatility for different tasks. The operating weight of this tractor is 10946 lbs, and it is equipped with a Category 3 telescopic hitch with a lift capacity of 6834.4 lbs. This tractor operates on radial tires sized 14.9 R24 for the front and 18.4 R38 for the rear, implying a rear tire diameter of approximately 54.33 inches. Additional specifications and features may include a hydraulic system, but details are not provided in the data.
Show more...

Key Specifications

Category: Utility

Power Output: 141.4

Operating Weight: 10946

Fuel Type: Diesel

Lift Capacity: 6834.4

Image Gallery

Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor Kubota M6-141DTSCC-F Tractor

Kubota M6-141DTSCC-F vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Hitch Capacity
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V-3800-CR-TIER4
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
374
Bore (in)
4.7
Stroke (in)
5.6
Rated RPM
2200
Power Output (hp)
141.4

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
171.7
Width (in)
86.4 (Converted from 7.2 ft)
Height (in)
114 (Converted from 9.5 ft)
Operating Weight (lb)
10946

Power Take-Off (PTO)

PTO Type
Live-independent PTO, hydraulically operated wet clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
37.99 (Converted from 14.9 R24 assuming the standard conversion)
Front Tire Width (in)
-
Rear Tire Diameter (in)
54.33 (Converted from 18.4 R38 assuming the standard conversion)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
Telescopic lower link ends, telescopic stabilizers
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
6834.4
Operator Station Type
Cab (implied by model suffix "C")
Starter Type
-
Brake Type
-
Hydraulic System Type
-
