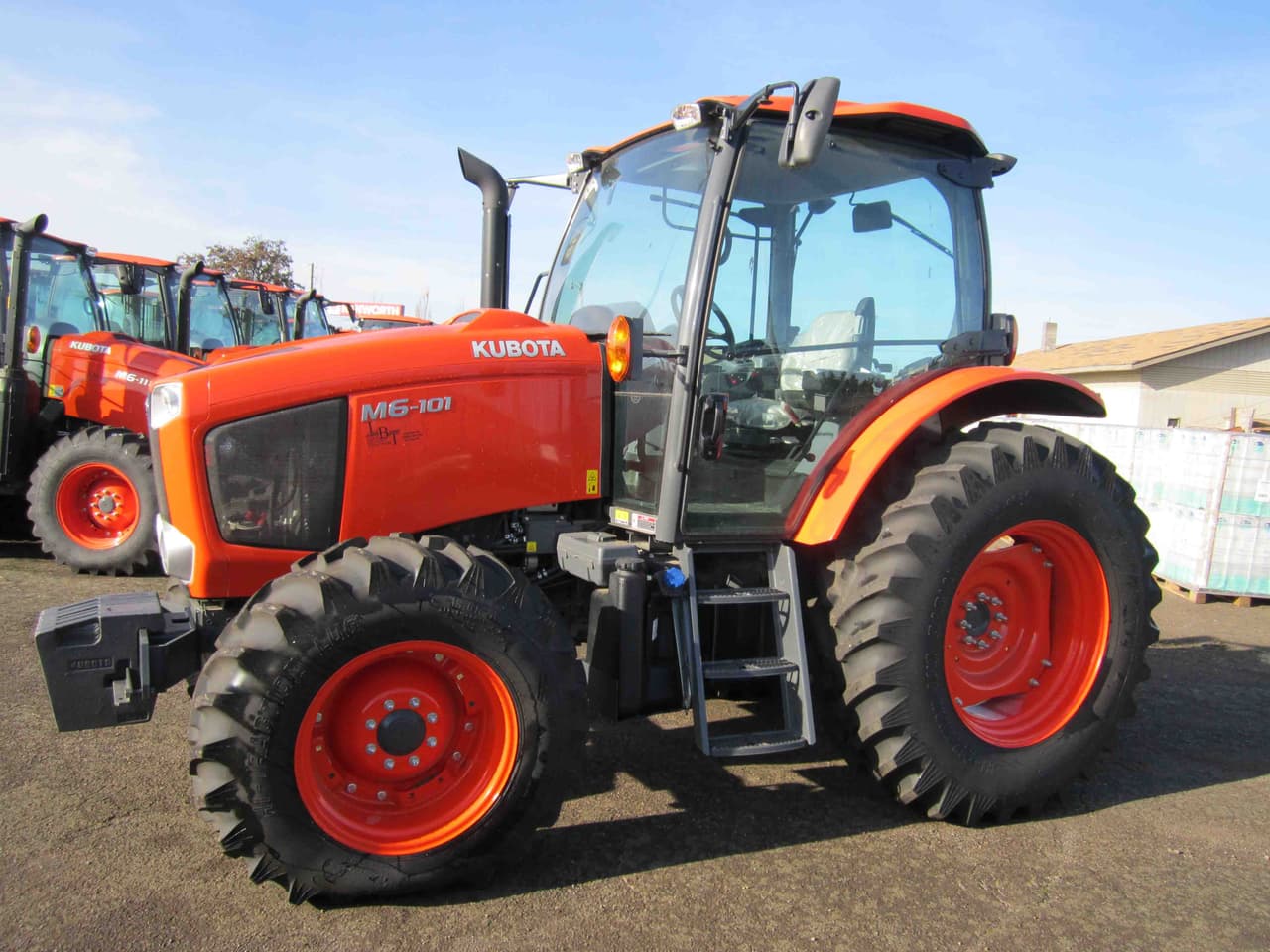

Kubota M6-101

Last Updated: June 2024

Overview

The Kubota M6-101 is a utility tractor that comes equipped with a 97.1 horsepower engine according to ECE R24 rating, and 104.5 horsepower based on the EC 97/98 standard. It features a reliable Kubota V3800-TI-CRS diesel engine with turbocharged intercooling and common rail direct injection, meeting Tier IV emissions standards. With a liquid-cooling system, high fuel efficiency, and low emissions, the engine is designed to deliver consistent power for a variety of agricultural tasks. Its transmission system, the Intelli-Shift, is a partial power shift type, providing 24 forward and reverse gears, with an option for 32 gears when the Creeper variant is selected. The electro-hydraulic wet disc clutch ensures smooth gear transitions and better control over the machine. The tractor has a sturdy build, weighing 9601 lbs, and features a large, comfortable cab for operator convenience. With manufacturing starting in 2015, the M6-101 is designed for those needing a durable and high-performing tractor for a range of tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 104.5

Transmission: Partial Power Shift

Operating Weight: 9601

Fuel Type: Diesel

Kubota M6-101 vs. Similar Tractors

Power Output
Above Average
Greater than 83% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-TI-CRS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement (ci)
230
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
104.5

Transmission

Type
Partial Power Shift
Forward Gears
24
Reverse Gears
24
Total Gears
48

Dimensions

Length (in)
165.4
Width (in)
82.7
Height (in)
109.8
Operating Weight (lb)
9601

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
