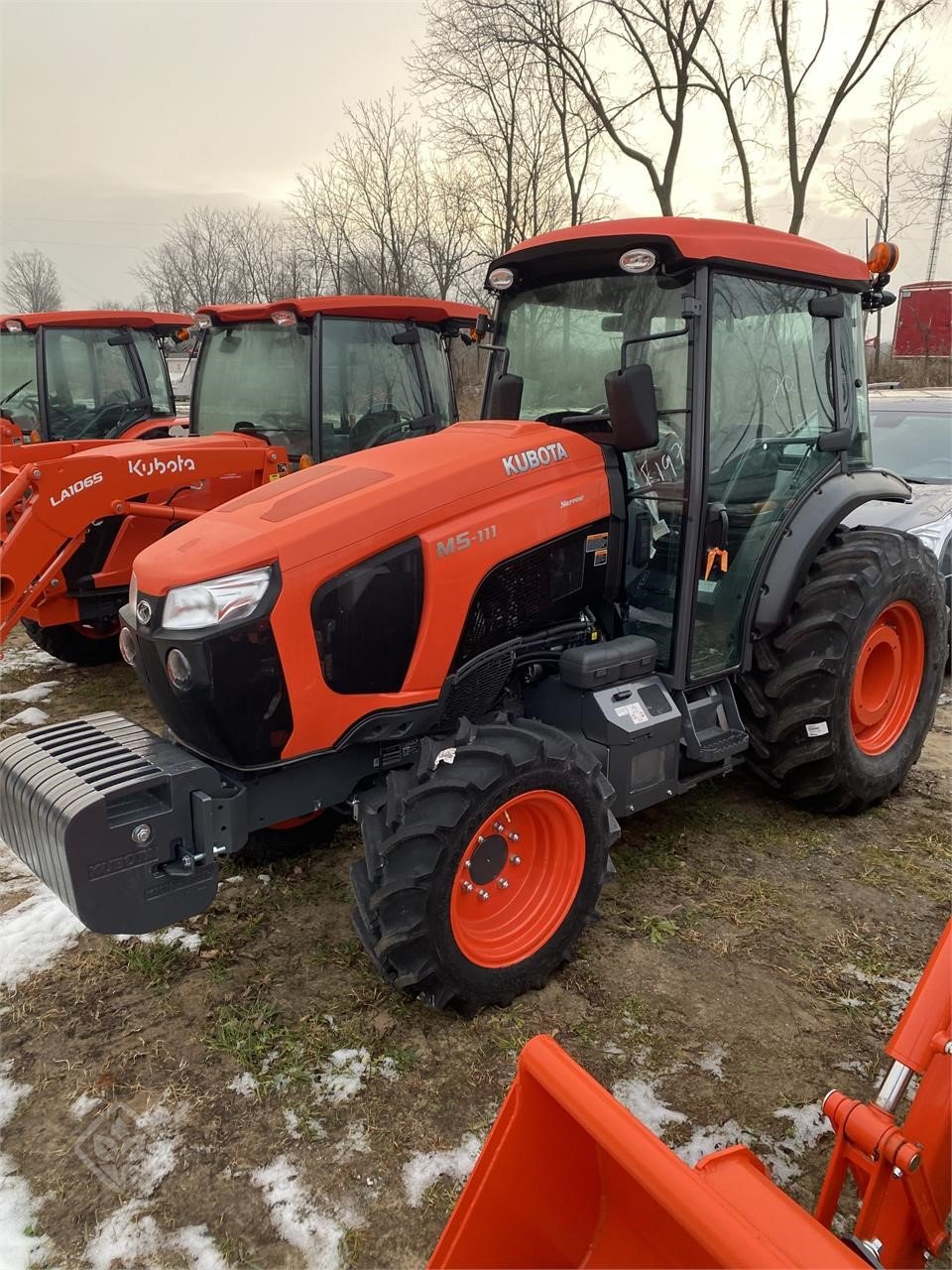

Kubota M5N-111HDRC24

Last Updated: June 2024

Overview

The Kubota M5N-111HDRC24 is a capable tractor that seems designed for a variety of agricultural tasks, given its engine power and hydraulic capabilities. Powered by a Kubota V-3800-CR-TIER4 diesel engine, this vehicle features direct injection and is water-cooled and turbocharged. With 108.2 horsepower and a rated RPM of 2600, it combines high performance with robust operations. The 18.1 gal/min hydraulic pump flow capacity and a 3-point hitch lift capacity of 3307 lbs demonstate that the tractor is well-suited for lifting and operating a wide range of implements. The tractor comes equipped with an electro-hydraulic PTO and front tires sized 8 - 16 and rear tires 12.4 - 24. However, details such as the specific chassis design, steering type, drive type, and the type of transmission system, among other aspects of the tractor, remain mysterious which leaves room for potential equipment variances or optional upgrades.
Show more...

Key Specifications

Category: Utility

Power Output: 108.2

Operating Weight: 5621.8

Fuel Type: Diesel

Lift Capacity: 3307

Kubota M5N-111HDRC24 vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Hitch Capacity
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V-3800-CR-TIER4
Cooling Type
Water-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
108.2

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
-
Width (in)
49.2
Height (in)
91.2
Operating Weight (lb)
5621.8

Power Take-Off (PTO)

PTO Type
Electro-hydraulic
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rigid lower link, easy adjust stabilizers
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
3307
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
