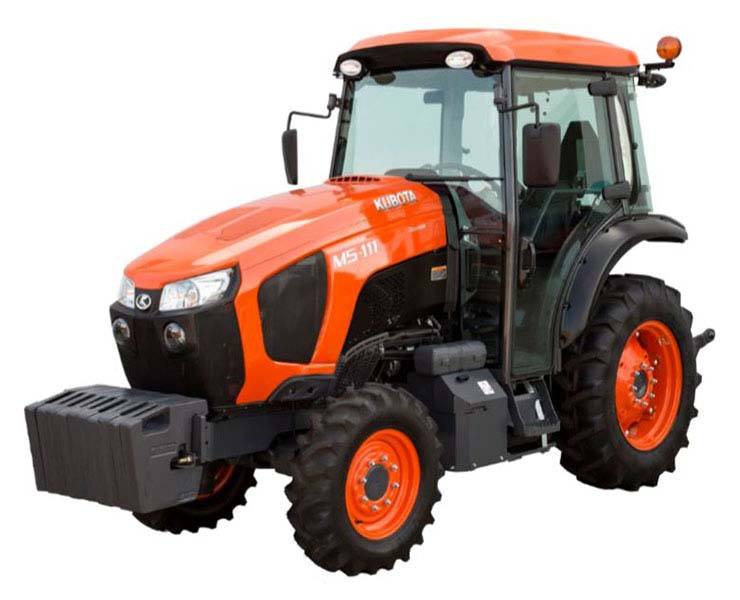

Kubota M5N-111HDRC12

Last Updated: June 2024

Overview

The Kubota M5N-111HDRC12 is a utility tractor that is well-suited for various farming tasks. Equipped with a durable Kubota 4-cylinder turbocharged diesel engine, the V-3800-CR-TIER4, this tractor offers a gross power output of 95 horsepower at 2600 rpm and a PTO power of 78 hp, ensuring sufficient strength to handle different implements. With an equal number of forward and reverse gears, twelve each, this machine offers impressive maneuverability and ease of operation in various conditions. Its operating weight is 5621.8 lbs, and the model maintains a high degree of functionality with a 3 point hitch lift capacity of 3307 lbs and two remote control valves that facilitate attachment usability. Though some specific specifications are not provided or inducible from the data, what's clear is its robust and efficient performance in utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 95

Operating Weight: 5621.8

Fuel Type: Diesel

Lift Capacity: 3307

Kubota M5N-111HDRC12 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Hitch Capacity
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V-3800-CR-TIER4
Cooling Type
Water-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
95

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
49.2
Height (in)
91.2
Operating Weight (lb)
5621.8

Power Take-Off (PTO)

PTO Type
Electro-hydraulic
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rigid lower link, easy adjust stabilizers
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
3307
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
