Kubota M5091

Last Updated: June 2024

Overview

The Kubota M5091 is a 4WD utility tractor from the M5001 series, produced by Kubota between 2016 and 2020. It features a Kubota V3800 four-cylinder, liquid-cooled, diesel engine with a displacement of 3.8 liters. The tractor has a power output of 75 hp at 2600 RPM. Transmission capabilities include 36 forward and 36 reverse gears with an electro-hydraulic wet disc clutch. It has a standard cab operator station, a Category II hitch with a lift capacity of 9,041 lbs, independent PTO with speeds of 540 and 540E or 1000 RPM, and hydraulic wet disc brakes. Its hydraulic system and valve configuration description are not specified in the data provided, and the front/rear tire diameter, width, rim diameter, along with coolant capacity, remains unknown.

Key Specifications

Category: Utility

Power Output: 75

Drive Type: 4WD

Operating Weight: 7540

Fuel Type: Diesel

Lift Capacity: 9041

Image Gallery

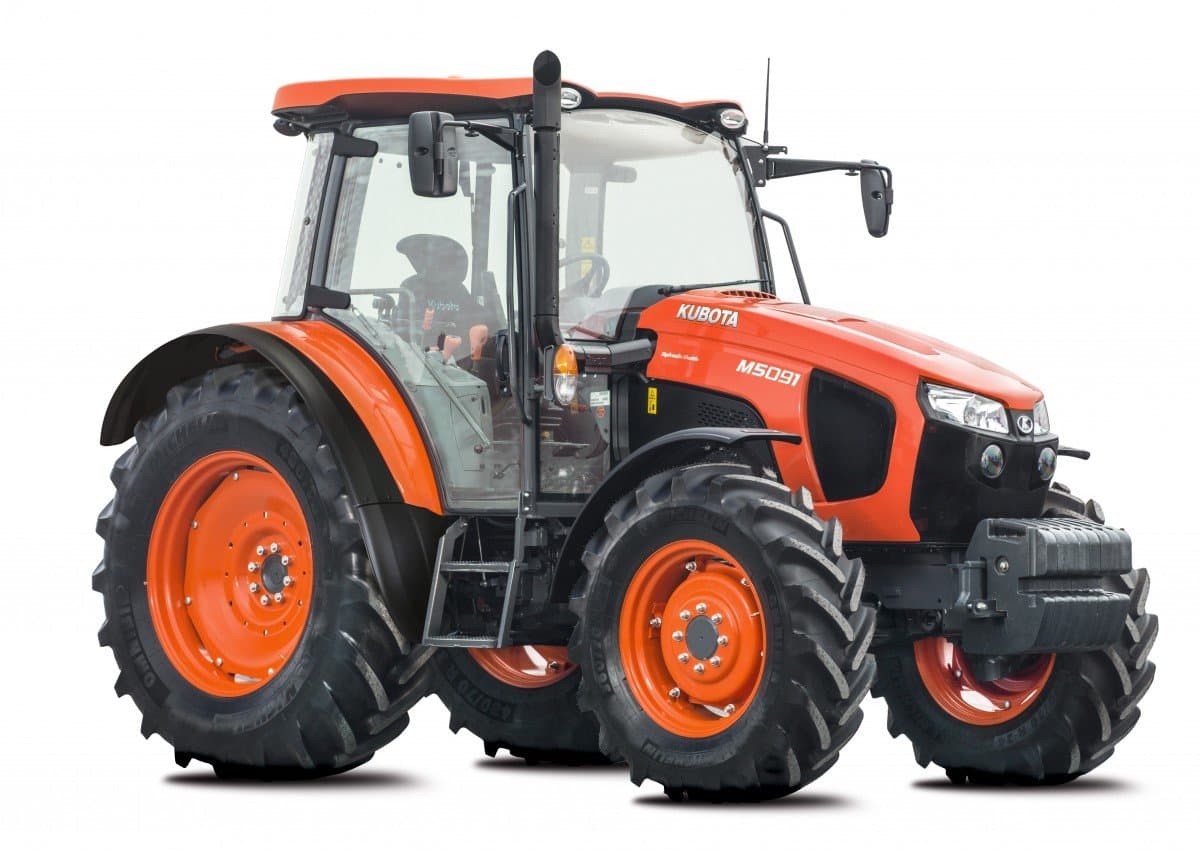

Kubota M5091 Tractor

Kubota M5091 vs. Similar Tractors

Power Output

Average

Greater than 68% of similar tractors.

Hitch Capacity

Above Average

Greater than 84% of similar tractors.

Operating Weight

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V3800
Cooling Type: Liquid
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 230
Bore (in): 3.94
Stroke (in): 4.72
Rated RPM: 2600
Power Output (hp): 75

Transmission

Type: -
Forward Gears: 36
Reverse Gears: 36
Total Gears: 72

Dimensions

Length (in): 159.1
Width (in): 86.2
Height (in): 103.9
Operating Weight (lb): 7540

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 540E or 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2020
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 9041
Operator Station Type: Cab
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: -
