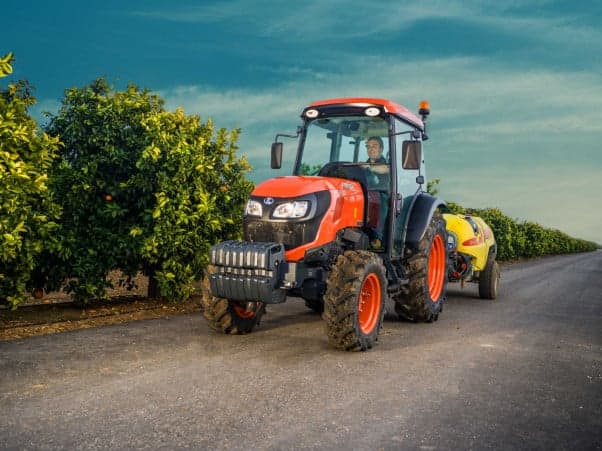

Kubota M5071N

Last Updated: September 2024

Overview

The Kubota M5071N is a powerful orchard and vineyard tractor built for tough farm work. It has a strong 4-cylinder diesel engine that makes 73 horsepower. This engine power is about average for tractors in its class. The tractor has a 4-wheel drive system and power steering, which helps it handle well in tight spaces.

This Kubota model is compact but mighty. It's just over 13 feet long and about 4 feet wide, making it perfect for working between rows of trees or vines. Despite its small size, it's quite heavy for its class, weighing in at 5,952 pounds. The tractor has 18 forward and 18 reverse gears, giving the driver lots of speed options. It also has a category II hitch, which lets it use many different tools and attachments.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 73 hp (54.4 kW)

Drive Type: 4WD

Operating Weight: 5952 lb (2700 kg)

Fuel Type: Diesel

Kubota M5071N vs. Similar Tractors

Power Output

The Power Output for the Kubota M5071N is Average. It is greater than 47% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Kubota M5071N is Average. It is greater than 61% of similar Orchard/Vineyard tractors in our database.

Operating weight distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota M5071N is Average. It is greater than 51% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota M5071N is Above Average. It is greater than 77% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800
Cooling Type
Liquid-cooled
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
230 ci (3.8 L)
Bore
3.94 in (100.1 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2400
Power Output
73 hp (54.4 kW)

Transmission

Forward Gears
18
Reverse Gears
18
Total Gears
36

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
