Kubota M5-111HDCC24

Last Updated: June 2024

Overview

The M5-111HDCC24 from Kubota is a utility tractor outfitted with a 4-wheel-drive chassis and hydrostatic power steering, making it adept for various agricultural tasks. Its engine, provided by Kubota, is an inline 4-cylinder engine with a displacement of 230 cubic inches, delivering a maximum power of 105.6 horsepower at 2600 rpm. The transmission is fully synchronized with 24 forward and reverse gears, offering considerable versatility and control across different tasks. The hitch system is a Category 2, with a rear hitch capable of lifting over 6000 lbs. Equipped with a comfortable cab, wet disc hydraulic brakes, and a live-independent PTO with an electro-hydraulic clutch with brake, this tractor balances power, precision, and comfort for demanding applications.
Show more...

Key Specifications

Category: Utility

Power Output: 105.6

Transmission: Fully synchronized

Drive Type: 4WD

Operating Weight: 7032.8

Lift Capacity: 6062.8

Image Gallery

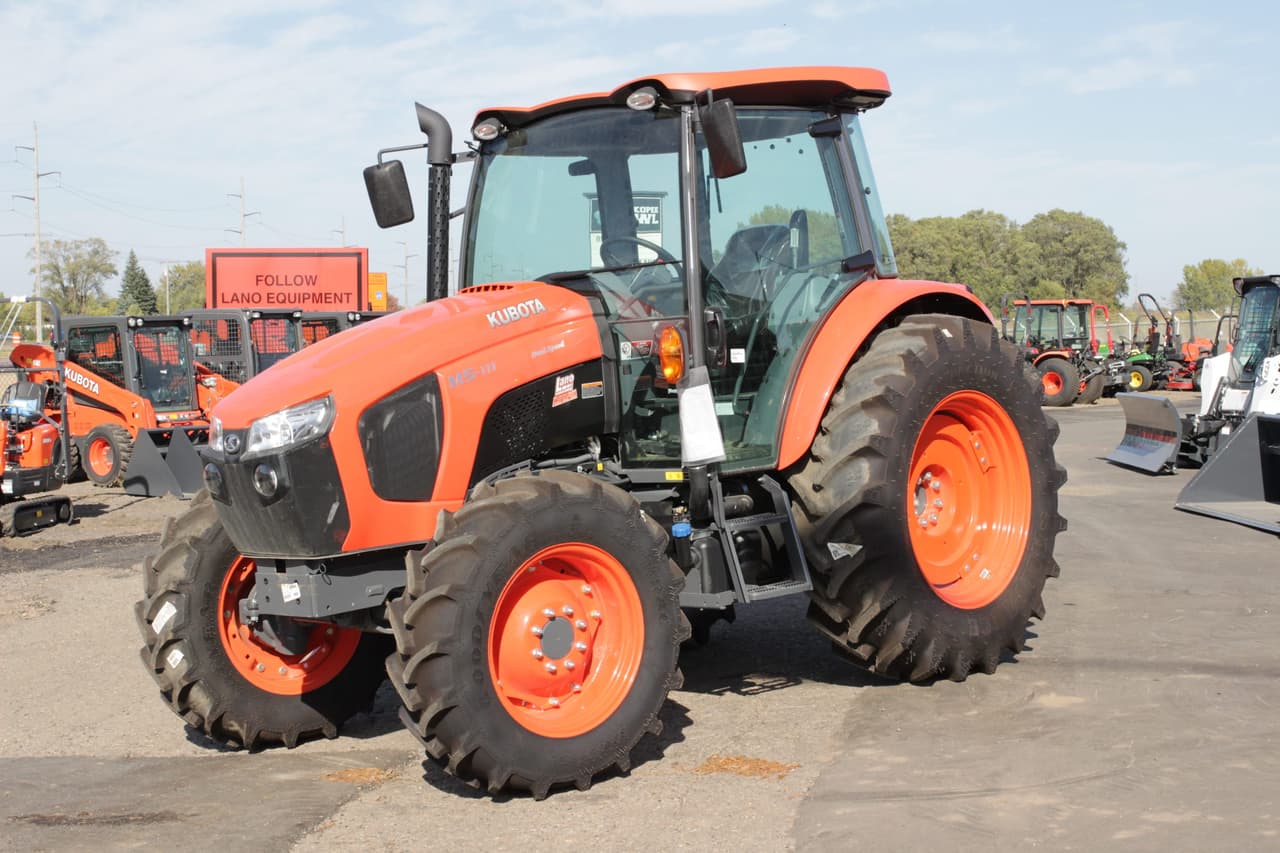

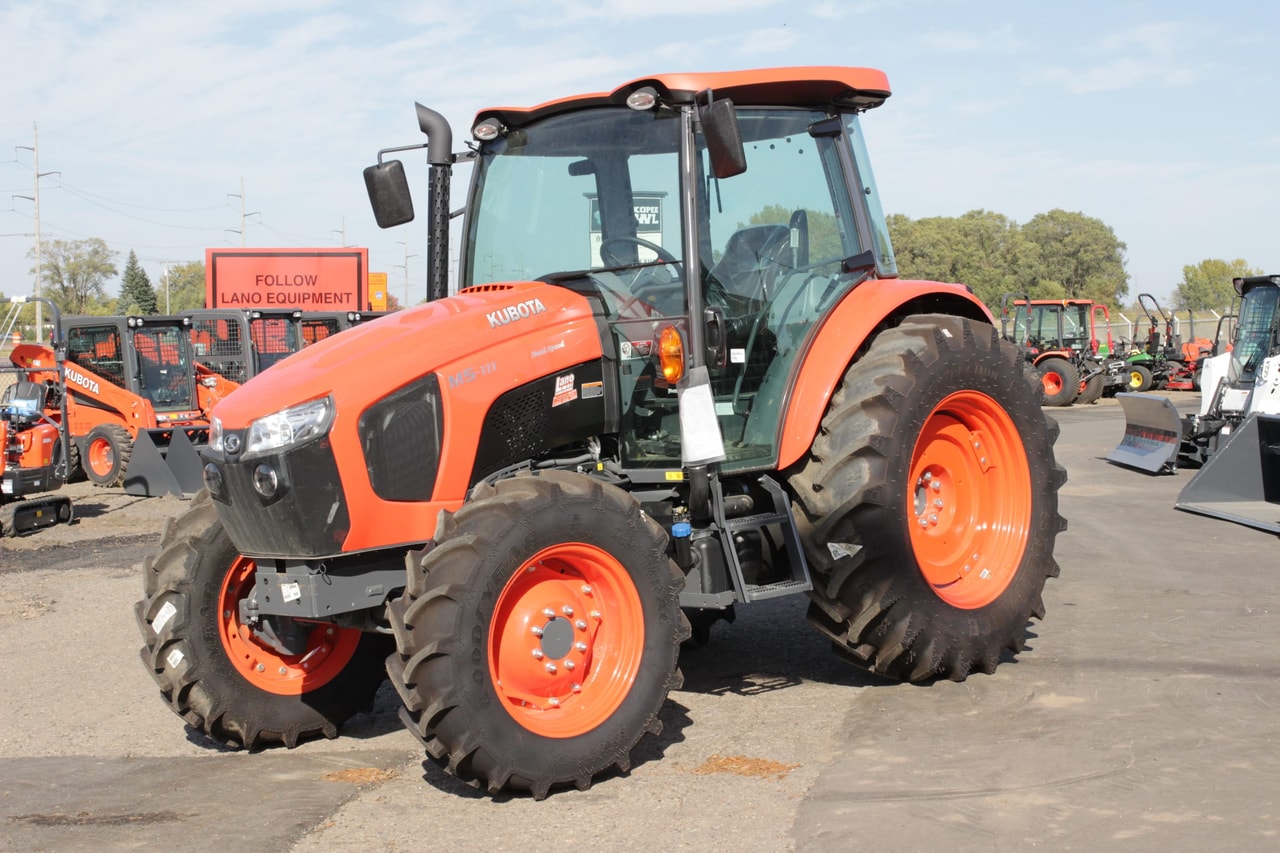

Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor Kubota M5-111HDCC24 Tractor

Kubota M5-111HDCC24 vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Hitch Capacity
Above Average
Greater than 80% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
M5-111HDCC24
Cooling Type
-
Cylinder Orientation
In-line
Valve Configuration
Common Rail System
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
230
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
105.6

Transmission

Type
Fully synchronized
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
156
Width (in)
79.2
Height (in)
102
Operating Weight (lb)
7032.8

Power Take-Off (PTO)

PTO Type
Live-independent PTO, electro-hydraulic clutch with brake
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
30
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
R1
Manufacture - End Year
-
Hitch Type
Category 2
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
6062.8
Operator Station Type
Cab
Starter Type
-
Brake Type
Hydraulic wet disc
Hydraulic System Type
-
