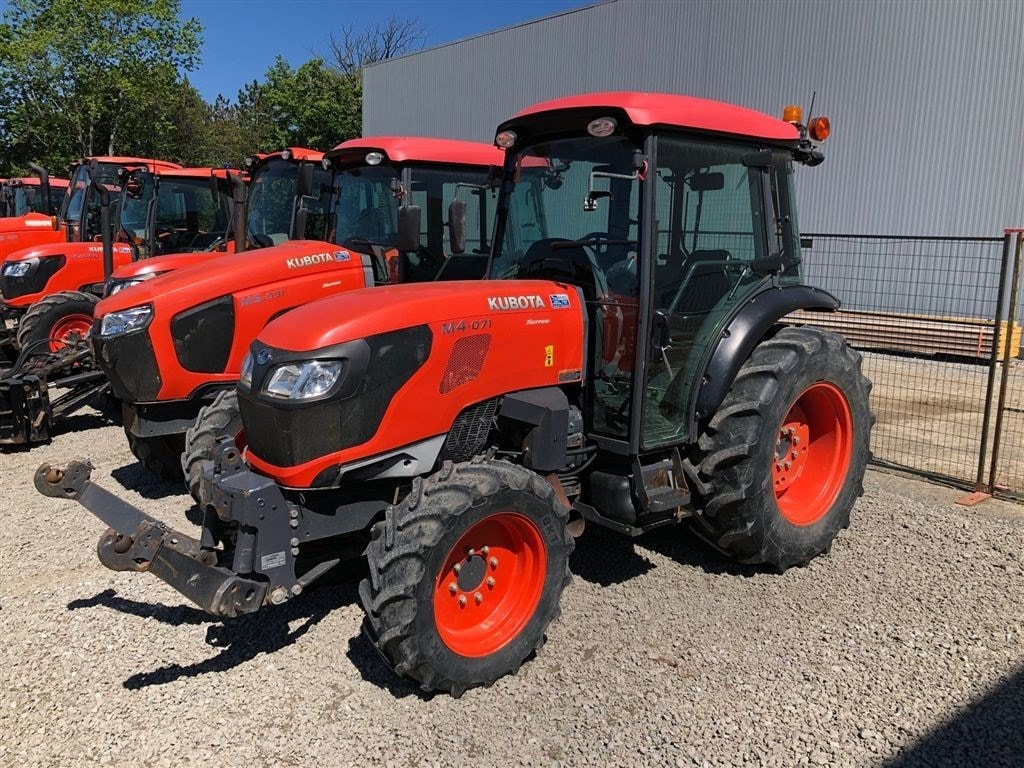

Kubota M4N-071HDCC12

Last Updated: June 2024

Overview

The Kubota M4N-071HDCC12 is a utility tractor engineered for a range of tasks. Its heart is a Kubota-manufactured V3800-TIEF4 engine, a direct injection, water-cooled 4-cycle diesel powerplant with turbocharging and common rail system, which delivers 72.6 horsepower at 2400 rpm. This power is conveyed through a gearbox offering 12 forward and 12 reverse gears. An electro-hydraulic PTO is standard, providing a PTO power output of 61 hp at a speed of 540 rpm. The tractor's hydraulic system facilitates a pump flow capacity of 16.7 gallons per minute and sports two remote control valves. A prominent feature of this model is its three-point hitch system at the rear, capable of lifting 3307 lbs at 24 inches behind the lift points. The fuel capacity of 20.1 gallons ensures prolonged working periods, while the operating weight of 5621.8 lbs contributes to its robustness and stability. Riding on a chassis with a ground clearance of 12.3 inches, the Kubota M4N-071HDCC12 is designed to handle a multitude of tasks with efficiency and reliability.
Show more...

Key Specifications

Category: Utility

Power Output: 72.6

Drive Type: 4WD

Operating Weight: 5621.8

Fuel Type: Diesel

Lift Capacity: 3307

Kubota M4N-071HDCC12 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.
Hitch Capacity
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-TIEF4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2400
Power Output (hp)
72.6

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
49.2 (Converted from 4.1 ft)
Height (in)
91.2 (Converted from 7.6 ft)
Operating Weight (lb)
5621.8

Power Take-Off (PTO)

PTO Type
Electro-hydraulic
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
24 (Based on CEG_Standard_Option_Rear tire specification)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Based on provided 3 point hitch type description)
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
3307
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
