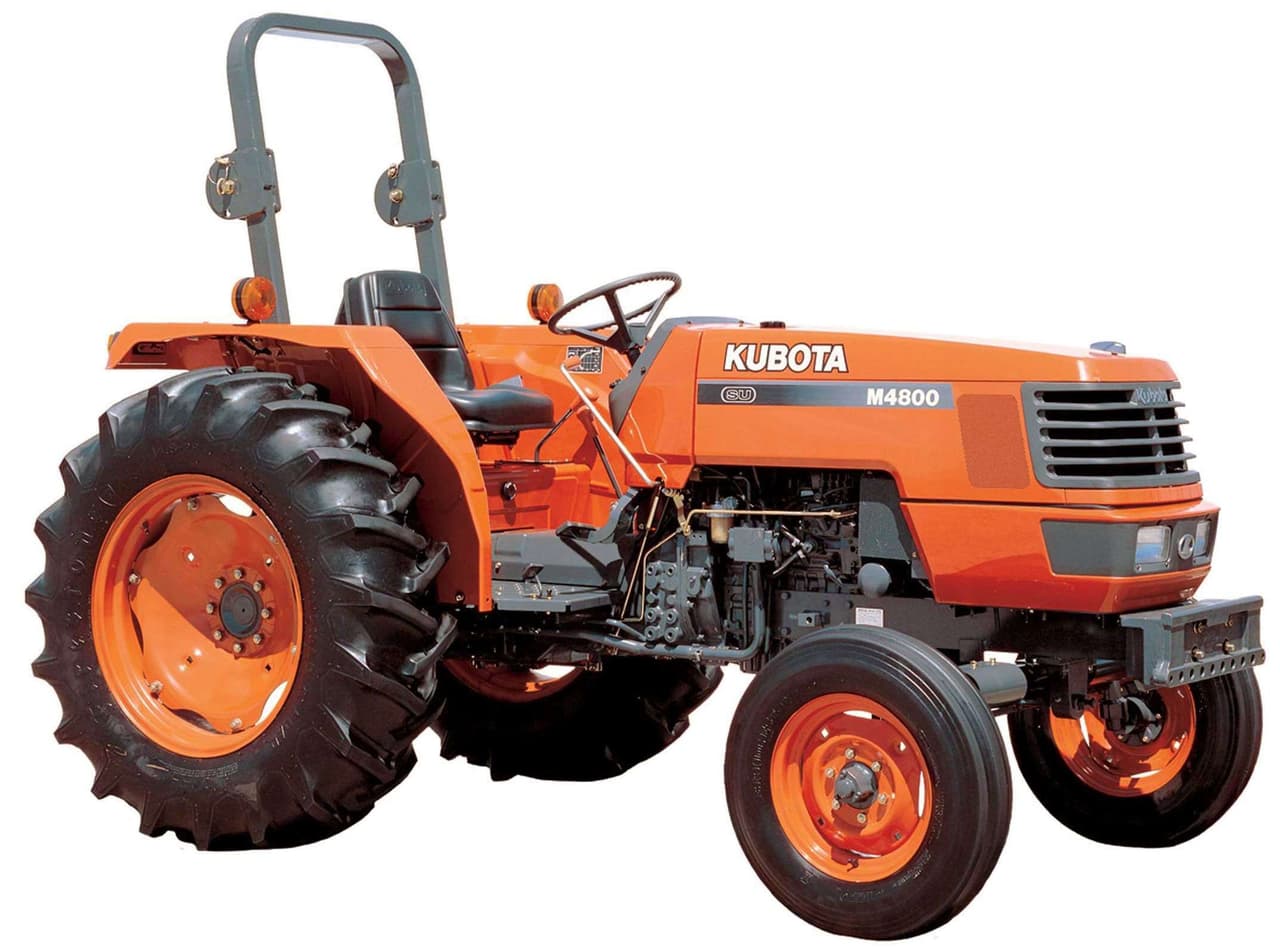

Kubota M4800SU

Last Updated: June 2024

Overview

The Kubota M4800SU is a compact utility tractor that has been manufactured by Kubota and is part of the M series. Featuring a Kubota V2403 four-cylinder liquid-cooled diesel engine, it delivers 50 to 51 horsepower at 2700 RPM. The M4800SU is available in either 2-wheel drive or 4-wheel drive configurations, and it operates with an 8-speed partially synchronized transmission including 8 forward and 4 reverse gears, which are managed via a 275mm dry disc clutch. Built on a 78.7-inch wheelbase, the tractor offers good stability and maneuverability. It has ROPS for safety and is capable of both agricultural and lawn/turf tire configurations. Whether equipped with 2WD or 4WD, the M4800SU is designed to handle a variety of tasks with a Category II/I hitch system at the rear, a lifting capacity impressive enough for heavy duties, and an open operator station that ensures ease of operation.
Show more...

Key Specifications

Category: Utility

Power Output: 50 / 51 (CEG Gross Power: 51 hp)

Transmission: Partially synchronized

Drive Type: 2WD / 4WD

Operating Weight: 3747 (2WD) / 3858 (4WD)

Fuel Type: Diesel

Image Gallery

Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor Kubota M4800SU Tractor

Kubota M4800SU vs. Similar Tractors

Power Output
Excellent
Greater than 100% of similar tractors.
Hitch Capacity
Excellent
Greater than 92% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2403
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration / E-TVCS indirect injection
Cylinders
4
Displacement (ci)
148.5
Bore (in)
3.43
Stroke (in)
4.02
Rated RPM
2700
Power Output (hp)
50 / 51 (CEG Gross Power: 51 hp)

Transmission

Type
Partially synchronized
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
137.6 (2WD) / 134.1 (4WD)
Width (in)
67.3
Height (in)
92.9
Operating Weight (lb)
3747 (2WD) / 3858 (4WD)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
2WD / 4WD
Steering Type
Power
Coolant Capacity (qts)
7.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag / Lawn/turf
Manufacture - End Year
-
Hitch Type
Category II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
3307 (at ends: 4,200)
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
