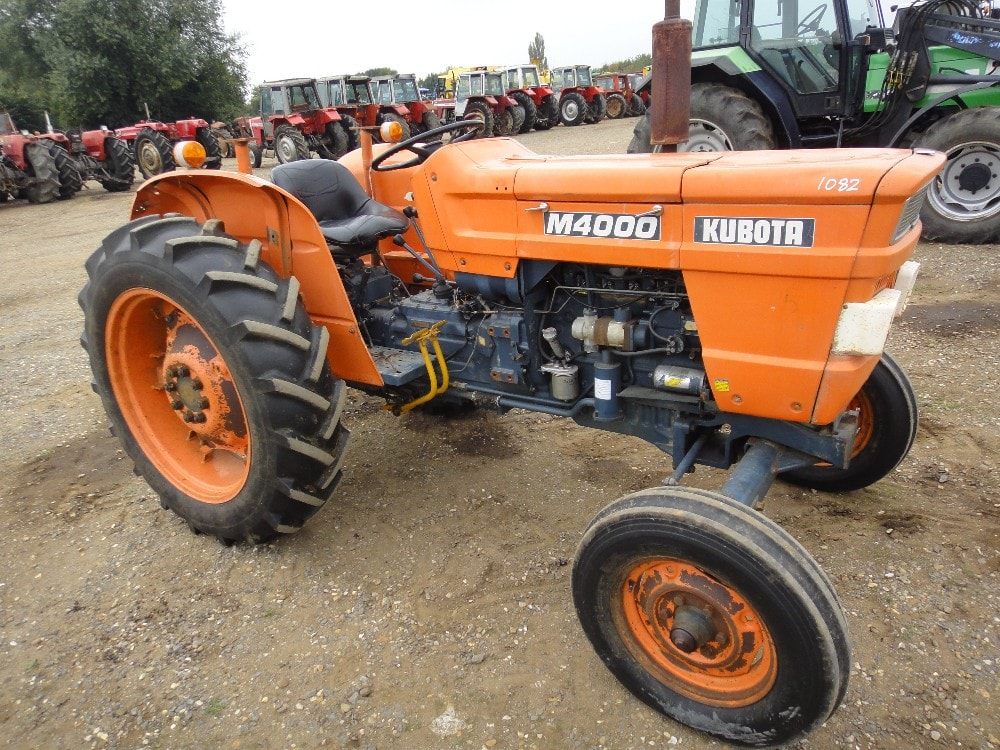

Kubota M4000

Last Updated: September 2024

Overview

The Kubota M4000 is a utility tractor designed for various farm tasks. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a synchronized transmission with 16 forward gears and 4 reverse gears, giving the driver lots of options for different jobs.

Under the hood, the M4000 has a Kubota S2200-A engine. This 6-cylinder diesel engine is liquid-cooled and has average displacement for its class. It runs at a very high 2600 RPM and produces 47.5 hp, which is about average power for similar tractors. The tractor weighs 4125 lb, also average for its size. It measures 131.3 inches long, 65.4 inches wide, and 87 inches tall.

This tractor comes with useful features like a rear Type I hitch and an open center hydraulic system. It has an open operator station and uses an electric starter. The Kubota M4000 is a solid choice for farmers who need a reliable, mid-sized utility tractor for everyday tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 48 hp (35.4 kW)

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 4125 lb (1871 kg)

Fuel Type: Diesel

Kubota M4000 vs. Similar Tractors

Power Output

The Power Output for the Kubota M4000 is Average. It is greater than 42% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 0.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Kubota M4000 is Average. It is greater than 36% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.1K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota M4000 is Average. It is greater than 32% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota M4000 is Above Average. It is greater than 79% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
S2200-A
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
6
Displacement
136 ci (2.2 L)
Bore
2.99 in (75.9 mm)
Stroke
3.23 in (82.0 mm)
Rated RPM
2600
Power Output
48 hp (35.4 kW)

Transmission

Type
Synchronized
Forward Gears
16
Reverse Gears
4

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
