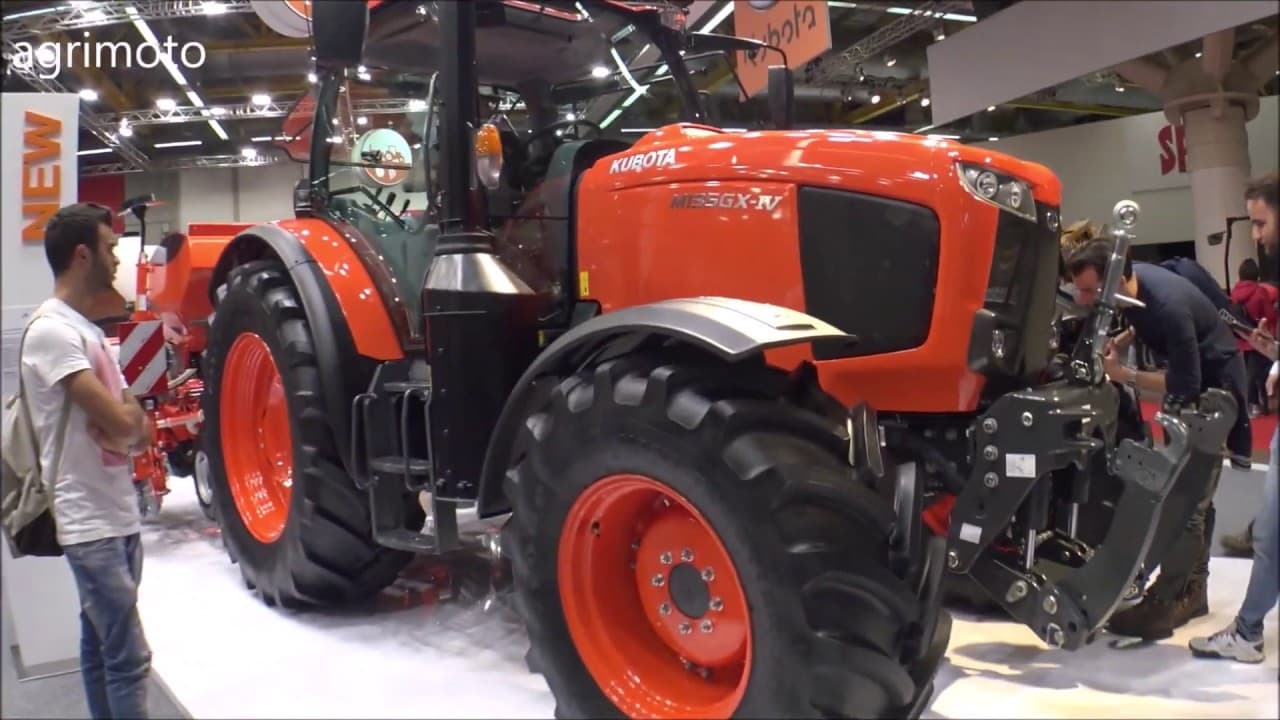

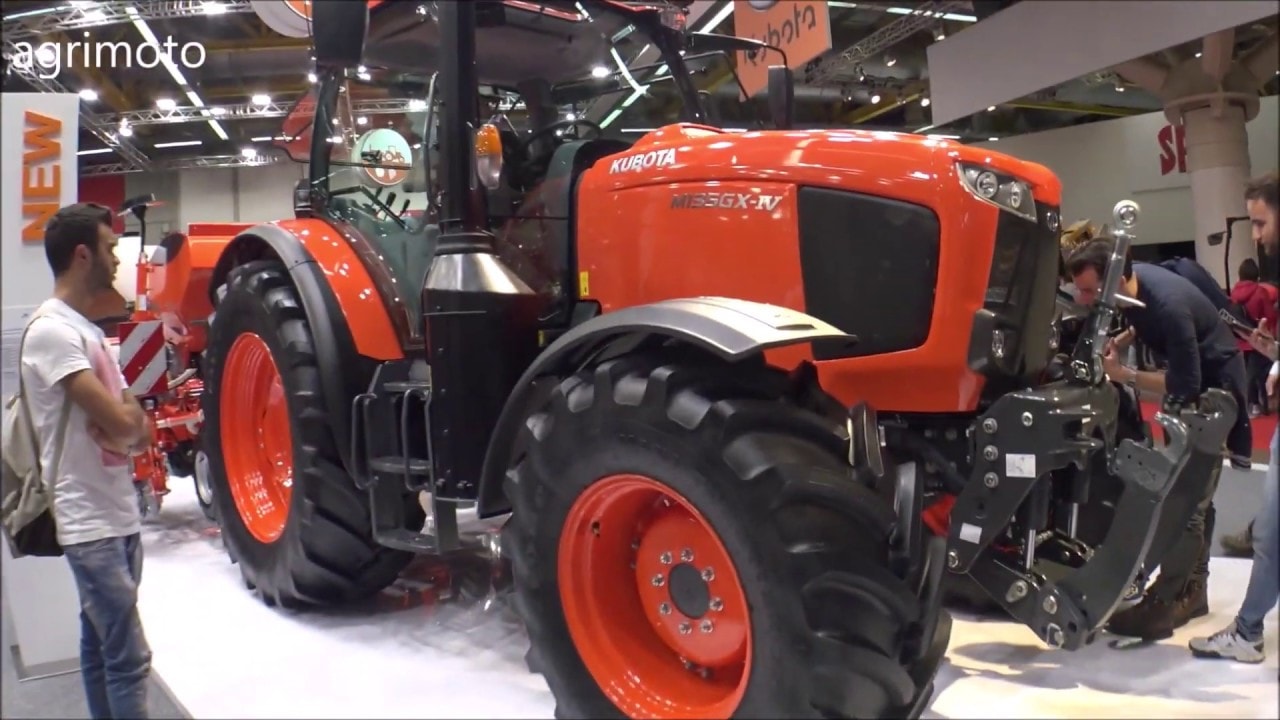

Kubota M135GX-IV

Last Updated: June 2024

Overview

The Kubota M135GX-IV is a utility tractor that is part of the MGX IV Series. Equipped with a Kubota V6108-CR four-cylinder, turbocharged intercooled diesel engine, this tractor offers an emissions-compliant power unit with a displacement of 373.7 cubic inches, capable of producing 143 horsepower at 2200 RPM, and a notable torque of 417 lb-ft at 1500 RPM. The chassis underlines a 4x4 MFWD 4WD configuration for improved traction and capability. Steering is facilitated through a power steering system, enhancing maneuverability and user comfort. For transmission, it includes an 8-speed power shift system, supplemented by a creeper gear box, delivering 24 forward and reverse gears to suit various operating conditions. The tractor has a Category 3 three-point hitch at the rear and rolls on standard agricultural tires, with the front size being 420/70R24 and the rear 520/70R38, facilitating varied field tasks. The Kubota M135GX-IV presents itself as a solid option for diverse agricultural needs, noted for its performance and build quality.
Show more...

Key Specifications

Category: Utility

Power Output: 143

Transmission: 8-speed power shift / creeper

Drive Type: 4WD

Operating Weight: 10681

Fuel Type: Diesel

Kubota M135GX-IV vs. Similar Tractors

Power Output
Excellent
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
143

Transmission

Type
8-speed power shift / creeper
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
176.2
Width (in)
91.7
Height (in)
113.4
Operating Weight (lb)
10681

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
