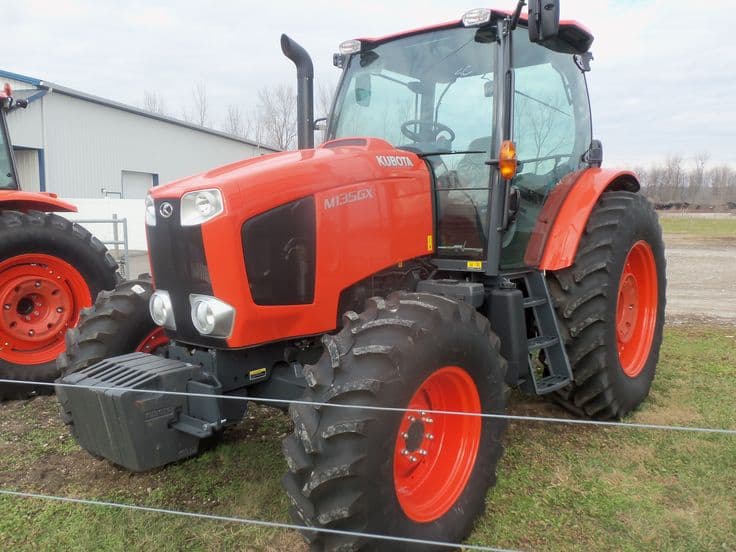

Kubota M135GX-III

Last Updated: June 2024

Overview

The Kubota M135GX-III is a utility tractor designed for a variety of tasks in the agricultural sector. Equipped with a 4-cylinder turbocharged intercooled Kubota V6108-CR diesel engine, it boasts a displacement of 373.7 cubic inches and a power output of 143 horsepower. The engine has a rated speed of 2200 RPM and delivers high torque at 1500 RPM. The tractor has a 24-speed 8-speed power shift transmission, providing substantial options for various tasks. With a sturdy 4x4 MFWD 4WD chassis, power steering, and a three-point hitch (Rear Type III), this tractor is built to handle tough conditions and a wide range of implements. Length and width measurements stand at 175.6 inches and 82.7 inches respectively, and it has a height of 113.6 inches, with a substantive operating weight of 10604 pounds. Produced between 2016 and 2018, the M135GX-III is well regarded for its reliability and versatility on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 143

Transmission: 8-speed power shift

Drive Type: 4WD

Operating Weight: 10604

Fuel Type: Diesel

Kubota M135GX-III vs. Similar Tractors

Power Output
Excellent
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
143

Transmission

Type
8-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
175.6
Width (in)
82.7
Height (in)
113.6
Operating Weight (lb)
10604

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2018
Hitch Type
III
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
