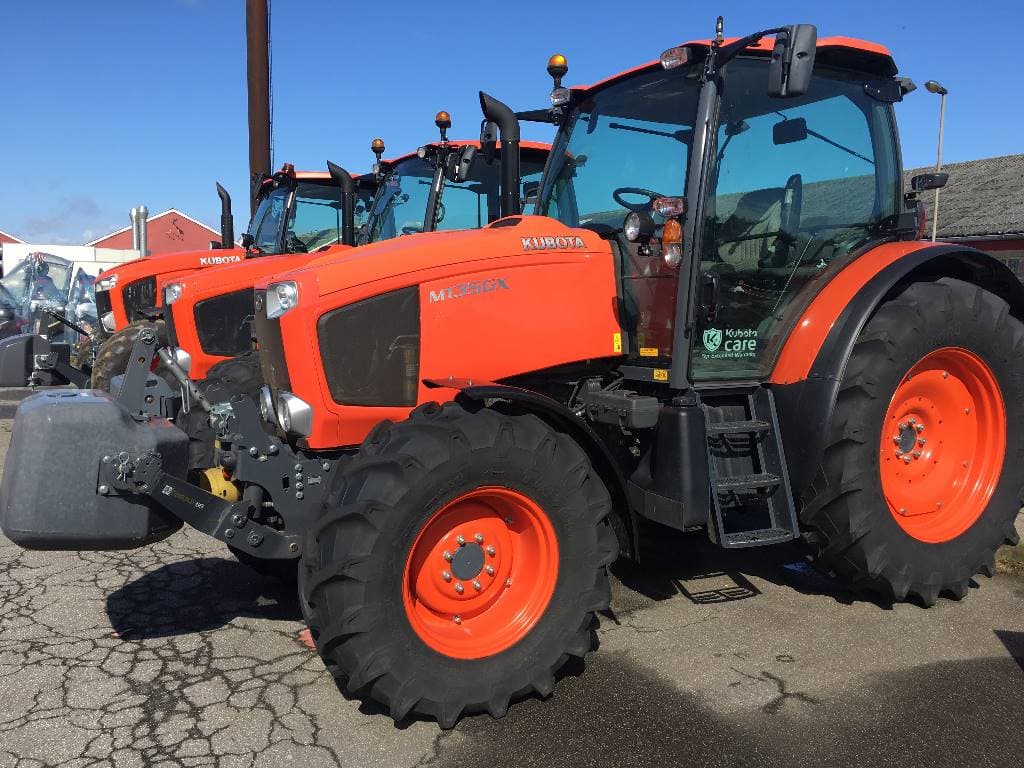

Kubota M135G

Last Updated: June 2024

Overview

The Kubota M135G is a robust utility tractor designed to deliver dependable performance for a variety of agricultural tasks. Introduced in 2014 as part of Kubota's Globe Series, this model features a 4-cylinder, 6.1-liter turbocharged diesel engine which produces 133.2 horsepower. The liquid-cooled engine ensures efficient thermal management during heavy operations, and the tractor's power shift transmission offers 24 forward and reverse gears, enhancing versatility and ease of use across different tasks. The model is also designed with a 4-wheel drive chassis, which, along with power steering, provides improved traction and maneuverability on diverse terrains. The standard agricultural tires, sized 420/70R24 for the front and 520/70R38 for the rear, contribute to the tractor's stability and traction. With a wheelbase of 105.9 inches and a weight of 9844 lbs, the M135G is a substantial machine that's designed for demanding work and is well-suited to a variety of attachments and implements.
Show more...

Key Specifications

Category: Utility

Power Output: 133.2

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 9844

Fuel Type: Diesel

Kubota M135G vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR-TIE4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
133.2

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
171.8
Width (in)
88.8
Height (in)
113.2
Operating Weight (lb)
9844

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
420/70R24
Front Tire Width (in)
-
Rear Tire Diameter (in)
520/70R38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
