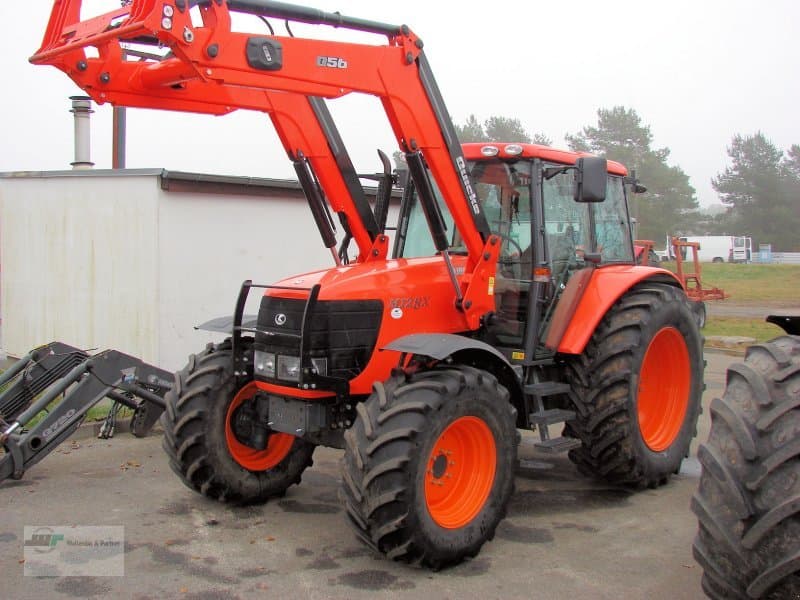

Kubota M128X

Last Updated: June 2024

Overview

The Kubota M128X is a row-crop tractor designed with a 4x4 MFWD 4WD chassis, providing robust power and traction suitable for a variety of agricultural tasks. Equipped with a hydrostatic power steering system, it ensures smooth maneuverability in challenging conditions. It boasts a powerful Kubota A68-TI-CRS diesel engine, with a displacement of 373.7 cubic inches and an impressive power output of 134 hp. The engine operates at a rated 2200 RPM, supported by a dual dry element air cleaner and a liquid-cooling system to maintain optimal temperatures during prolonged operations. The Intelli-Shift transmission provides 24 total gears with 16 forward gears, offering versatility and control whether tilling, plowing, or hauling. Its substantial weight of 9,722 lbs contributes to stability and traction, while its physical dimensions of 175.4 inches in length, 85.6 inches in width, and 108.3 inches in height give it a commanding presence in the field. Advanced features and additional specifications like its PTO and hydraulic systems were not specified in the data provided.
Show more...

Key Specifications

Category: Row Crop

Power Output: 134

Transmission: Partial powershift

Drive Type: 4WD

Operating Weight: 9722

Fuel Type: Diesel

Kubota M128X vs. Similar Tractors

Power Output
Average
Greater than 44% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
A68-TI-CRS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
134

Transmission

Type
Partial powershift
Forward Gears
16
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
175.4
Width (in)
85.6
Height (in)
108.3
Operating Weight (lb)
9722

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
