Kubota M126X

Last Updated: June 2024

Overview

The Kubota M126X is a robust row-crop tractor suitable for a variety of agricultural tasks. With its 126 horsepower, liquid-cooled, turbocharged intercooler diesel engine, it is designed to deliver reliable performance and efficient power. The 4-cylinder engine with a displacement of 373.7 cubic inches operates at a rated RPM of 2200. This model features a hydrostatic power steering system that ensures easy maneuvering and a 16-speed partial powershift transmission, making it versatile for different field conditions. The tractor operates on 4WD with a Multi-Function Four Wheel Drive system (MFWD), allowing it to handle rough terrain with ease. With standard agricultural tires, and optional larger tire configurations, it is adaptable to various soil conditions.

Key Specifications

Category: Row Crop

Power Output: 126

Transmission: Partial powershift

Drive Type: 4WD

Operating Weight: 10,141

Fuel Type: Diesel

Image Gallery

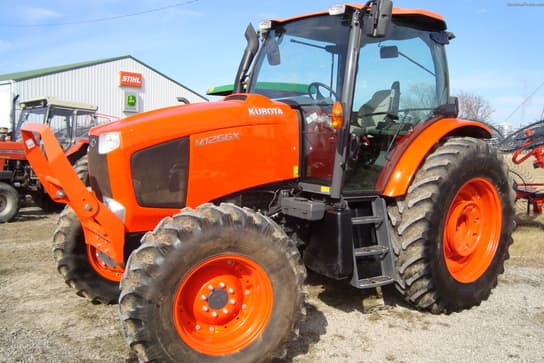

Kubota M126X Tractor

Kubota M126X vs. Similar Tractors

Power Output

Average

Greater than 39% of similar tractors.

Operating Weight

Poor

Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V6108-TI-CRS
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooler
Cylinders: 4
Displacement (ci): 373.7
Bore (in): 4.65
Stroke (in): 5.51
Rated RPM: 2200
Power Output (hp): 126

Transmission

Type: Partial powershift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 171.7
Width (in): 89
Height (in): 107.3
Operating Weight (lb): 10,141

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 15.9
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard ag tires: Front: 14.9R24, Rear: 18.4R38; Optional ag tires: Front: 420/70R24, Rear: 520/80R38
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
