Kubota M126GX

Last Updated: June 2024

Overview

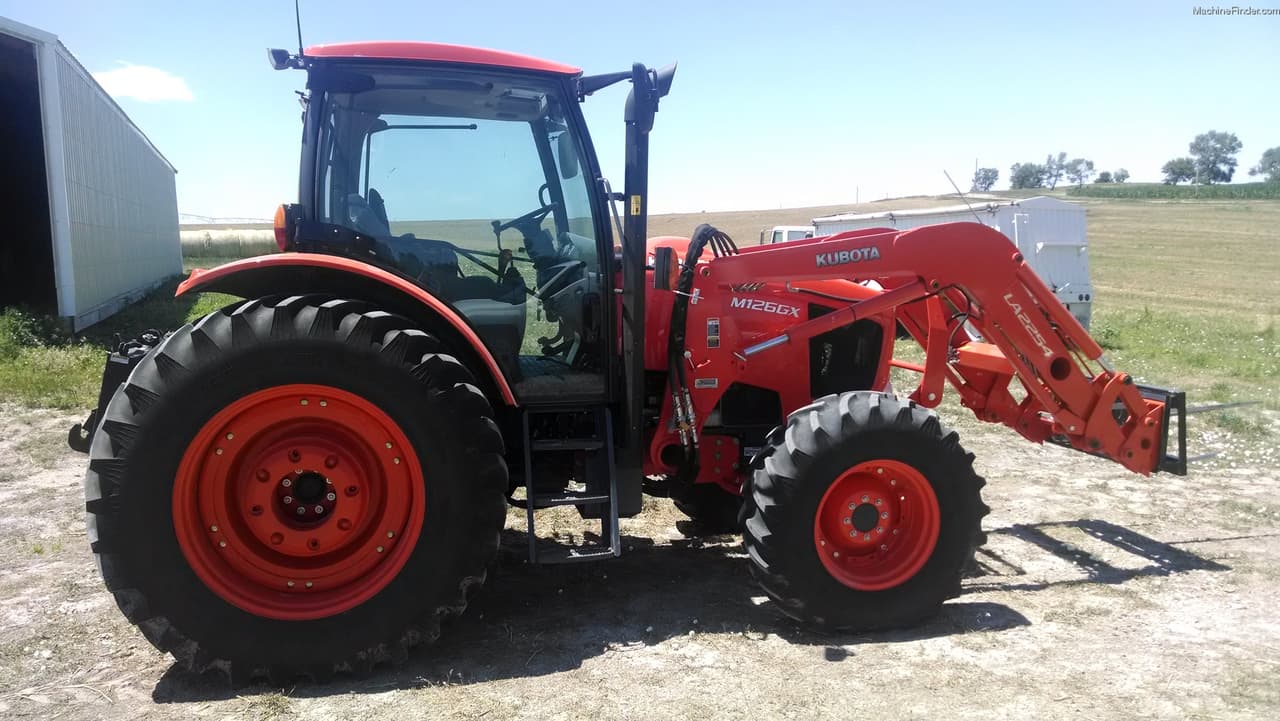

The Kubota M126GX is a robust row-crop tractor designed to meet the demanding needs of modern farming. Equipped with a powerful 125 hp Kubota V6108-TI-CRS engine, this tractor offers a liquid-cooled system, advanced turbocharging and intercooling, and a common rail direct injection fuel system focusing on high efficiency and productivity. It operates on a 4x4 MFWD 4WD chassis, providing excellent traction and control across varied terrains, complemented by hydrostatic power steering for nimble maneuverability. The 24-speed Intelli-Shift transmission ensures a suitable range of speed options for various tasks, complemented by the versatility of an electro-hydraulic wet disc clutch. The M126GX boasts a weight of 10373 lbs and features a wheelbase of 105.9 inches. The tractor offers a spacious operator's station, though the specifics, such as cab features, are not provided. Since its debut in 2012, the M126GX has been part of the Grand X Series, renowned for its durability and advanced technology.
Show more...

Key Specifications

Category: Row Crop

Power Output: 125

Transmission: Intelli-Shift transmission

Drive Type: 4WD

Operating Weight: 10373

Fuel Type: diesel

Kubota M126GX vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-TI-CRS
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
4-cylinder 16-valve
Fuel Type
diesel
Induction Type
turbocharged and intercooled
Cylinders
4
Displacement (ci)
374
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
125

Transmission

Type
Intelli-Shift transmission
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
173.3
Width (in)
85.8
Height (in)
113.2
Operating Weight (lb)
10373

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
