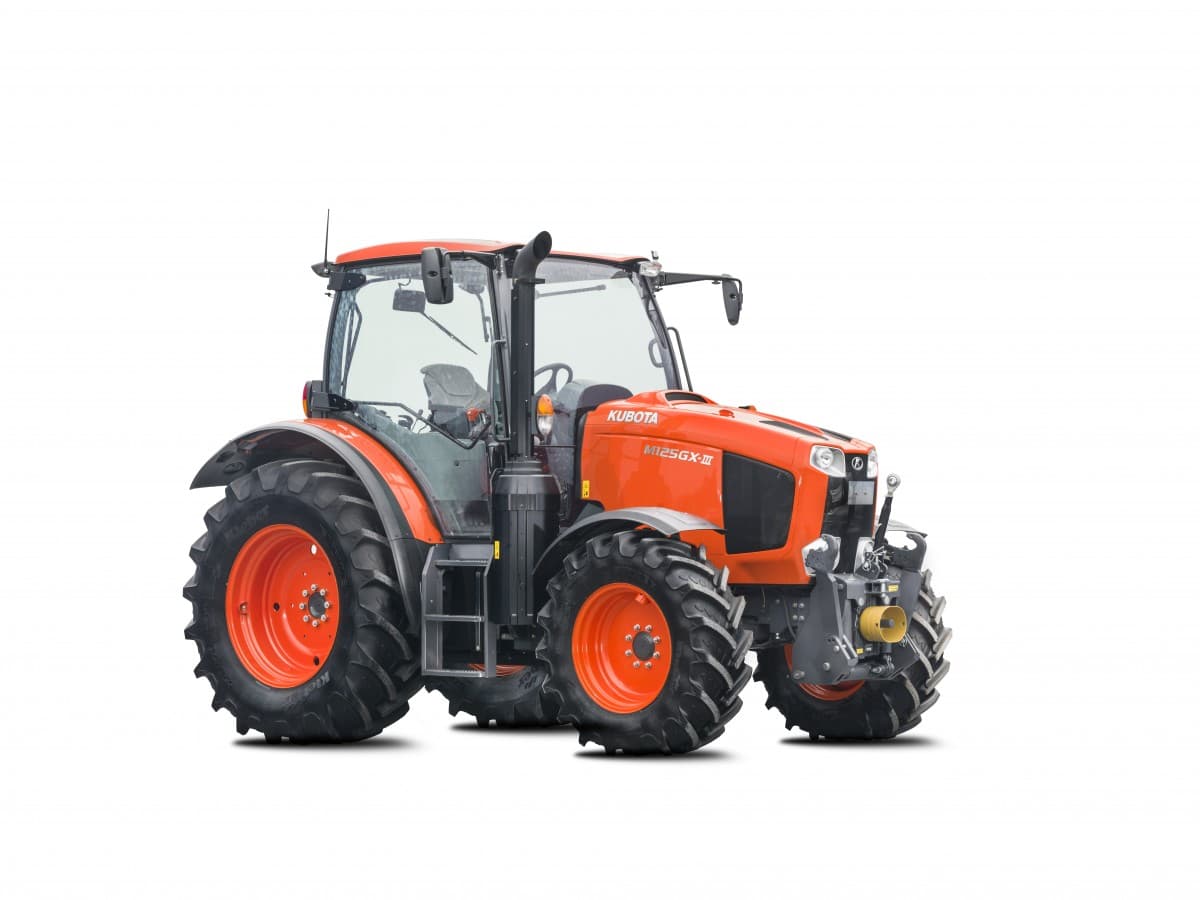

Kubota M125GX-III

Last Updated: June 2024

Overview

The Kubota M125GX-III is a utility tractor designed for a variety of tasks in the agricultural sector. This model falls within the MGX III Series and was manufactured by Kubota between 2016 and 2018. It features a four-wheel drive chassis with a 4x4 MFWD configuration and power steering for easier maneuverability. The engine is a Kubota V6108-CR, a 4-cylinder, liquid-cooled, turbocharged, intercooled diesel engine with a displacement of 373.7 cubic inches, generating 133 horsepower at 2200 RPM. It comes equipped with an 8-speed power shift transmission, with a total of 24 available gears. It also offers the capability to use a creeper gear set, expanding the total to 32 forward and reverse gears. The tractor's operating weight is 10604 pounds, with a wheelbase of 105.9 inches. The tractor's dimensions give it a solid presence on the field with a length of 175.6 inches, a width of 82.7 inches, and a height of 113.6 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 133

Transmission: 24-speed 8-speed power shift

Drive Type: 4WD

Operating Weight: 10604

Fuel Type: Diesel

Kubota M125GX-III vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V6108-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
373.7
Bore (in)
4.65
Stroke (in)
5.51
Rated RPM
2200
Power Output (hp)
133

Transmission

Type
24-speed 8-speed power shift
Forward Gears
-
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
175.6
Width (in)
82.7
Height (in)
113.6
Operating Weight (lb)
10604

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 420/70R24. Rear: 520/70R38
Manufacture - End Year
2018
Hitch Type
III
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
