Kubota M125

Last Updated: June 2024

Overview

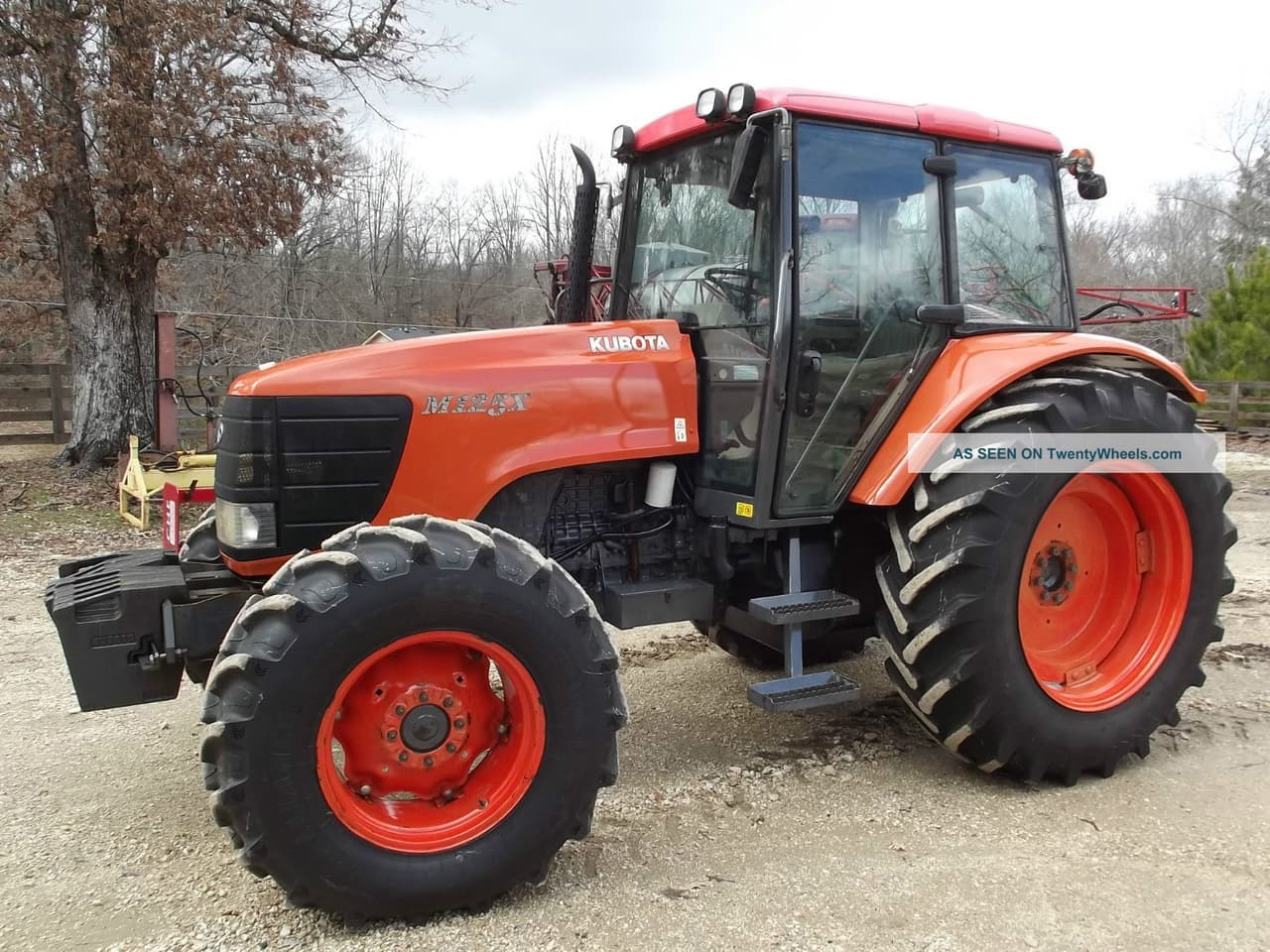

The Kubota M125 Utility Tractor, produced from 2002 to 2004, is a robust four-wheel-drive tractor designed for a variety of tasks. Featuring a 123.2 horsepower Kubota F5802-T turbocharged diesel engine, it offers ample power alongside a high degree of maneuverability and reliability. With a liquid-cooling system, a bore of 4.29 inches, and a stroke of 4.92 inches, this tractor is equipped with a direct injection fuel system and operates at a rated 2400 RPM. It has a large wheelbase of 105.9 inches which contributes to its stability. The power steering enhances ease of control, while the multiple gear options, including a synchromesh transmission and a creeper gear, provide flexibility in a range of farming operations. This tractor has a substantial operating weight of 8973 lbs and dimensions that accommodate diverse farming needs: a length of 172.8 inches, width of 82.7 inches, and height of 107.3 inches. Standard ag tires are used, with front tires sized at 14.9-24 and rear tires at 18.4-38, bolstering its traction and soil handling.
Show more...

Key Specifications

Category: Utility

Power Output: 123.2

Drive Type: 4WD

Operating Weight: 8973

Fuel Type: Diesel

Kubota M125 vs. Similar Tractors

Power Output
Above Average
Greater than 88% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
F5802-T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
5
Displacement (ci)
355.9
Bore (in)
4.29
Stroke (in)
4.92
Rated RPM
2400
Power Output (hp)
123.2

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
172.8
Width (in)
82.7
Height (in)
107.3
Operating Weight (lb)
8973

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2004
Hitch Type
Category II (implied by "Rear Type: II")
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
