Kubota M110GX

Last Updated: July 2024

Overview

The Kubota M110GX is a utility tractor manufactured by Kubota between 2009 and 2013. It is equipped with a 97.5 hp turbocharged Kubota V3800-TI diesel engine and features a 24-speed selective gear fixed ratio transmission with partial (8) range operator controlled power shift. The tractor's chassis is a 4x4 MFWD 4WD, indicating it has four-wheel drive with mechanical front wheel drive assistance for improved traction. The tractor's steering is hydrostatic. The wheelbase measures 95.9 inches, contributing to the tractor's stability, while the operating weight of 9545 lbs helps with traction and powering through tough tasks. The overall measurements of this model include a length of 168.1 inches, a width of 77.6 inches, and a height of 106.7 inches. Standard agricultural tires are sized at 13.6R24 for the front and 18.4R34 for the rear. This tractor supports a Category 2 three-point hitch on the rear, although the maximum force claims did not meet the manufacturer's specifications in the test. It is designed to handle a variety of tasks in various farm operations, characterizing the versatility and reliability that utility tractors are known for. Additional details on hydraulic performance, PTO speed, and hitch dimensions are provided based on the independent test results.
Show more...

Key Specifications

Category: Utility

Power Output: 97.5

Transmission: Selective gear fixed ratio with partial (8) range operator controlled power shift

Drive Type: 4WD

Operating Weight: 9545

Fuel Type: No. 2 Diesel

Image Gallery

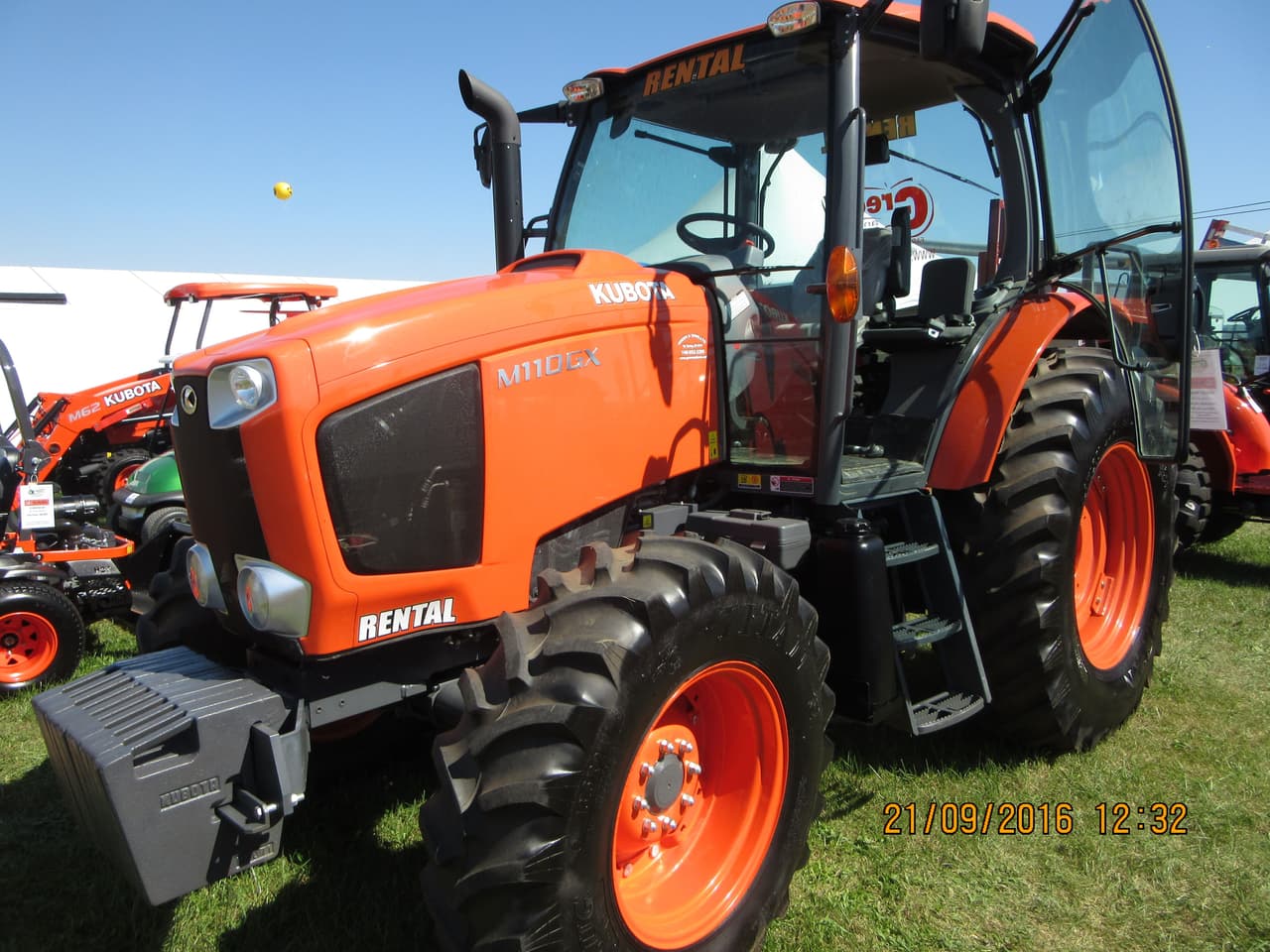

Kubota M110GX Tractor Kubota M110GX Tractor Kubota M110GX Tractor Kubota M110GX Tractor Kubota M110GX Tractor Kubota M110GX Tractor

Kubota M110GX vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-TI
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
No. 2 Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
230
Bore (in)
3.937
Stroke (in)
4.724
Rated RPM
2600
Power Output (hp)
97.5

Transmission

Type
Selective gear fixed ratio with partial (8) range operator controlled power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
168.1
Width (in)
77.6
Height (in)
106.7
Operating Weight (lb)
9545

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2013
Hitch Type
II (maximum force claims did not meet manufacturer's specifications in the test)
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-

Test Results

Nebraska Tractor Test Laboratory - Test Date: June 6 to December 10, 2013

Maximum Power and Fuel Consumption

  • Maximum Power: 97.50 HP (72.71 kW) at 2601 rpm
  • Fuel Consumption at Rated Engine Speed: 6.08 Gal/hr (23.03 l/h) with a fuel efficiency of 0.439 lb/hp.hr (0.267 kg/kW.h)
  • DEF Consumption: Not specified

Drawbar Performance

  • Drawbar Power at Rated Engine Speed: Not specified
  • Drawbar Pull: Not specified

Torque and Engine Performance

  • Maximum Torque: 237 lb.-ft. (321 Nm) at 1601 rpm
  • Torque Rise: 20.2%

Hydraulic Performance

  • Maximum Force Exerted: 8613 lbs (38.3 kN) with 2 x 80 mm lift cylinders
  • Pump Delivery Rate: 19.1 GPM (72.3 l/min) at minimum pressure and rated engine speed
  • Hydraulic Power: 26.3 HP (19.6 kW) at delivery pressure of 2497 psi (172 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (541 rpm): 16.91 Hp.hr/gal (3.33 kW.h/l)
  • Fuel Consumption at Standard PTO Speed (541 rpm): 5.42 Gal/hr (20.53 l/h)

    Nebraska Tractor Test Lab.(2013).Test 2063: Kubota M110GX. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2493
