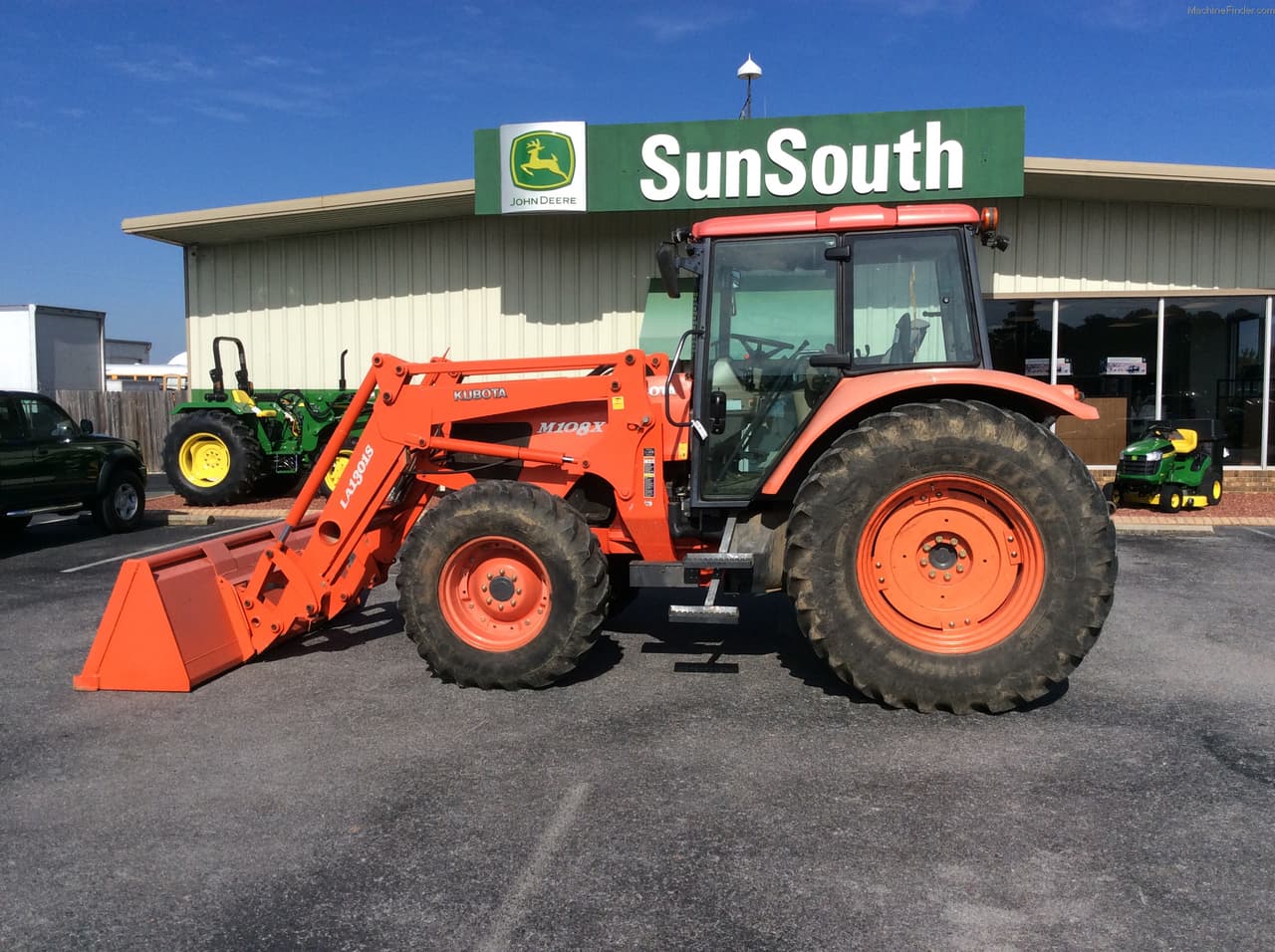

Kubota M108X

Last Updated: June 2024

Overview

The Kubota M108X is a robust and versatile tractor that is well-suited for a variety of agricultural tasks. Equipped with a Kubota F5802TE2 turbocharged diesel engine with an inline 4-cylinder configuration, it delivers a solid 108 horsepower at 2600 RPM with a bore and stroke measuring 3.94x4.72 inches. The Intelli-Shift transmission ensures smooth operation with 16 forward and reverse gears, allowing for efficient fieldwork or transport. The tractor provides substantial comfort and maneuverability with hydrostatic power steering and a wheelbase of 95.9 inches. Its operating weight of 9,427 lbs underlines a sturdy build, while offering a ground clearance of 23.2 inches for a variety of terrains. Front standard tires are sized at 13.6R24, while the rear boasts a size of 18.4R34, with optional sizes available for different applications. Other key features include a three-point hitch with a lift capacity of 5203 lbs and a hydraulic system capable of delivering 18.1 gpm, enabling a wide range of tools and attachments to be used efficiently.
Show more...

Key Specifications

Power Output: 108

Transmission: Partial power shift

Drive Type: MFWD/4WD

Operating Weight: 9427

Fuel Type: Diesel

Lift Capacity: 5203 lbs @ 24 inches

Technical Specifications

Engine

Manufacturer
Kubota
Model
F5802TE2
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
230
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
108

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
163.4
Width (in)
83.7
Height (in)
105.9
Operating Weight (lb)
9427

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD/4WD
Steering Type
Hydrostatic power steering
Coolant Capacity (qts)
9.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 13.6R24. Rear: 18.4R34, Optional tires (ag): Front: 12.4R24. Rear: 18.4R30
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
5203 lbs @ 24 inches
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
