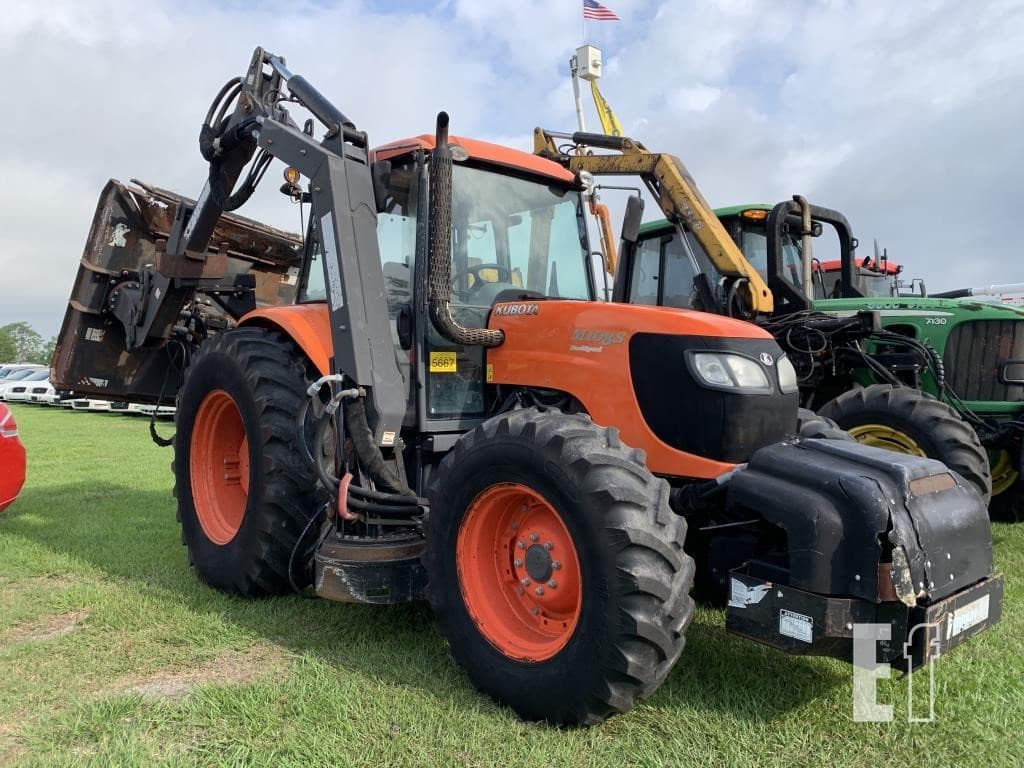

Kubota M108SHD

Last Updated: June 2024

Overview

The Kubota M108SHD is classified as a utility tractor and comes equipped with a Kubota V3800-DT-TI turbocharged engine with an intercooler. The engine displacement is 230 cubic inches, generating a power output of 108 horsepower and operating at a rated RPM of 2600. It features a fully synchronized transmission with 16 forward and reverse gears, providing versatility in a range of tasks. The tractor is fitted with front tires sized 13.6-24 and rear tires sized 18.4-34, with the type of tire being cast. Given the operating weight of 7980.8 pounds, a fuel capacity of 46.3 gallons, and a lift capacity of 4629.8 pounds on the rear Cat II hitch, the M108SHD is designed to handle substantial workloads. It also features a cab operator station, adding comfort and protection for the operator. The tractor's other notable specifications include a turning radius of 15.5 feet and a pump flow capacity of 17.2 gallons per minute, which coupled with its power, make the M108SHD suitable for various agricultural and utility applications.
Show more...

Key Specifications

Category: Utility

Power Output: 108

Transmission: Fully synchronized

Operating Weight: 7980.8

Lift Capacity: 4629.8

Kubota M108SHD vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Hitch Capacity
Above Average
Greater than 74% of similar tractors.
Operating Weight
Average
Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-DT-TI
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
230
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
108

Transmission

Type
Fully synchronized
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
91.2
Height (in)
105.6
Operating Weight (lb)
7980.8

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
36.6
Front Tire Width (in)
-
Rear Tire Diameter (in)
51.6
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Cast
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
4629.8
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
