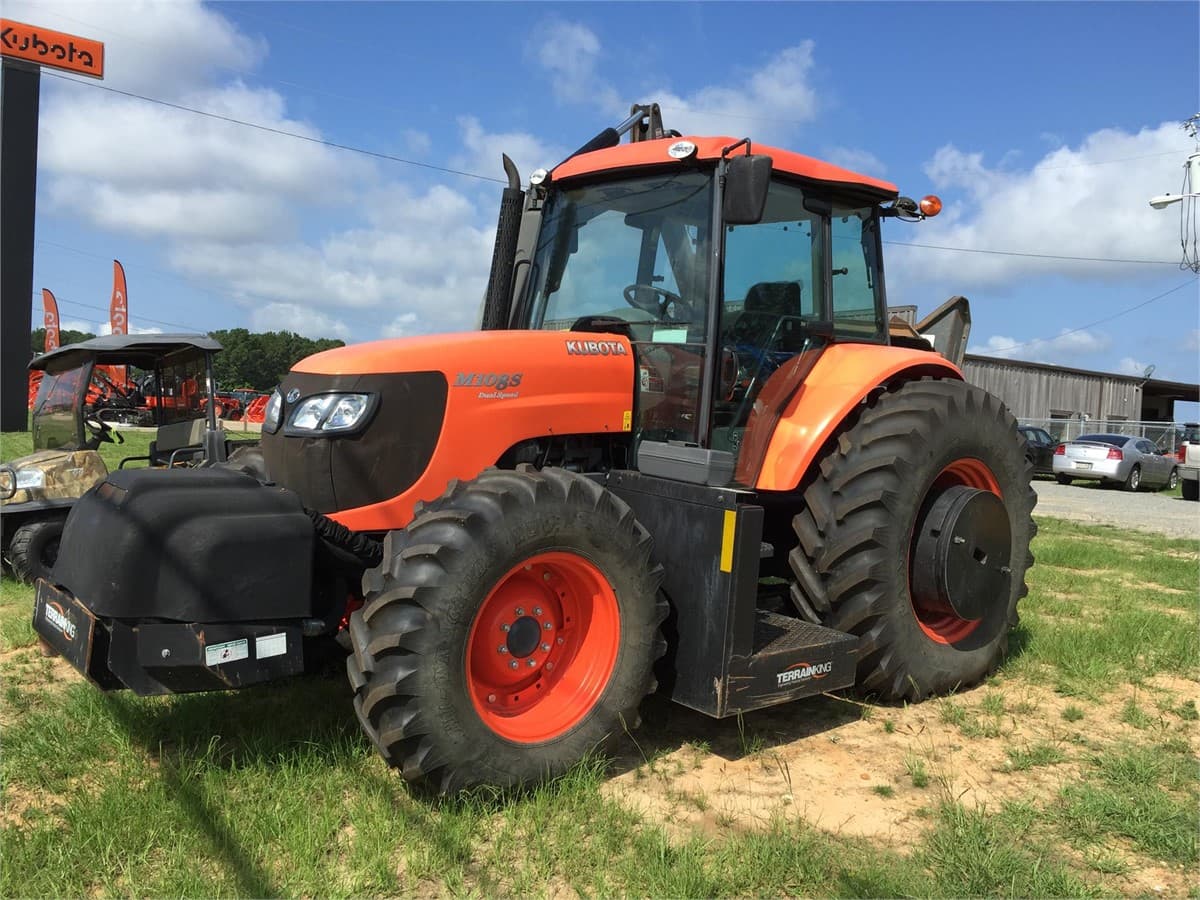

Kubota M108SDSC

Last Updated: June 2024

Overview

The Kubota M108SDSC is a tractor that provides a substantial power output of 108 horsepower with its Kubota V3800-DT-TI turbocharged engine equipped with an intercooler. It operates with a fully synchronized transmission that offers a significant number of gears, both 32 forward and reverse. This strong power train provides the tractor an impressive lifting capacity of approximately 4629.8 pounds on its Cat II three-point hitch. Operating at a rated rev of 2600 RPM and with a PTO horsepower of 96 hp, this tractor is capable of handling a wide range of tasks. Additionally, the M108SDSC features a comfortable operating weight of 8576 pounds, making it stable and grounded for various operations. Despite available data, some information such as operational applications and dimensions are incomplete or appear inaccurate, particularly the length measurement. Overall, this model is equipped with advanced features such as a high-capacity alternator (80 A) and a robust hydraulic system with a pump flow capacity of 17.2 gallons per minute, enhancing its operational efficiency and reliability.
Show more...

Key Specifications

Power Output: 108

Transmission: Fully synchronized

Operating Weight: 8576

Lift Capacity: 4629.8

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800-DT-TI
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged with intercooler
Cylinders
4
Displacement (ci)
230
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
108

Transmission

Type
Fully synchronized
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
-
Width (in)
91.2 (7.6 ft to inches)
Height (in)
105.6 (8.8 ft to inches)
Operating Weight (lb)
8576

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (assumed from tire size info)
Front Tire Width (in)
-
Rear Tire Diameter (in)
34 (assumed from tire size info)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Cast (though this seems incorrect; may be a data error)
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
4629.8
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
