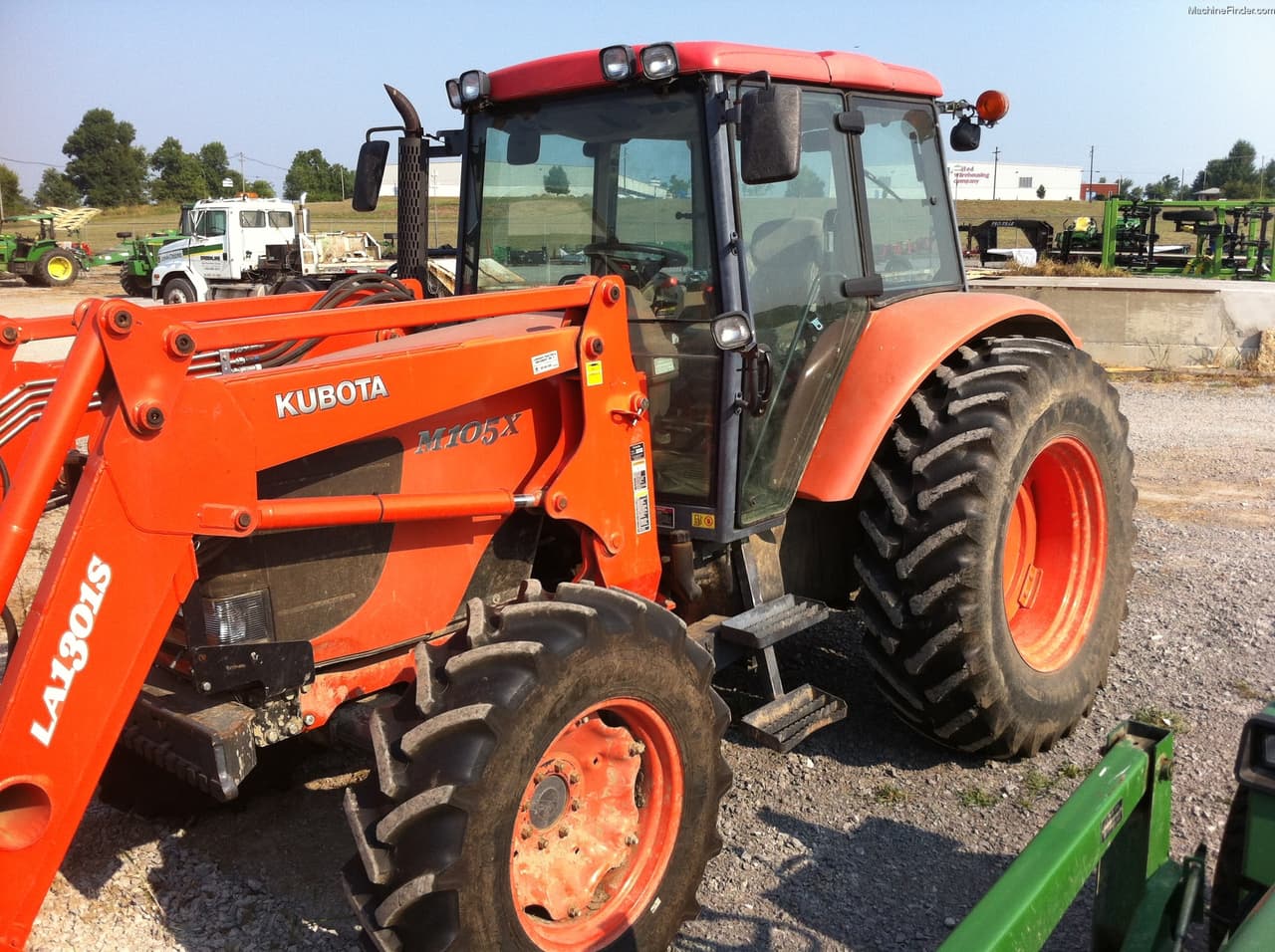

Kubota M105X

Last Updated: June 2024

Overview

The Kubota M105X is a row-crop tractor designed for various agricultural tasks. It is equipped with a Kubota V3800TIE2 turbocharged diesel engine, which provides 105 horsepower and exhibits a displacement of 230 cubic inches. With a hydrostatic power steering system and a 16-speed partial power shift transmission, the M105X offers ample forward and reverse gears for different operational requirements. It has a 4x4 MFWD 4WD chassis that enhances its traction in varied terrain. The tractor has a Category II hitch with a lift capacity of 5203 lbs, enabling it to handle a variety of implements. The M105X measures 163.4 inches in length, 83.7 inches in width, and stands 105.9 inches tall. It has an operating weight of 8,987 lbs, ensuring stability and robustness during operation. The dimensions and weight allow for good maneuverability without compromising on power. This model is tailored for those who need a reliable and powerful tractor for row-cropping and other extensive farming applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 105

Transmission: partial power shift

Drive Type: 4WD

Operating Weight: 8987

Fuel Type: diesel

Kubota M105X vs. Similar Tractors

Power Output
Below Average
Greater than 25% of similar tractors.
Hitch Capacity
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3800TIE2
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
230
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
105

Transmission

Type
partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
163.4
Width (in)
83.7
Height (in)
105.9
Operating Weight (lb)
8987

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
ag
Manufacture - End Year
-
Hitch Type
Cat II
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
5203 lbs
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
