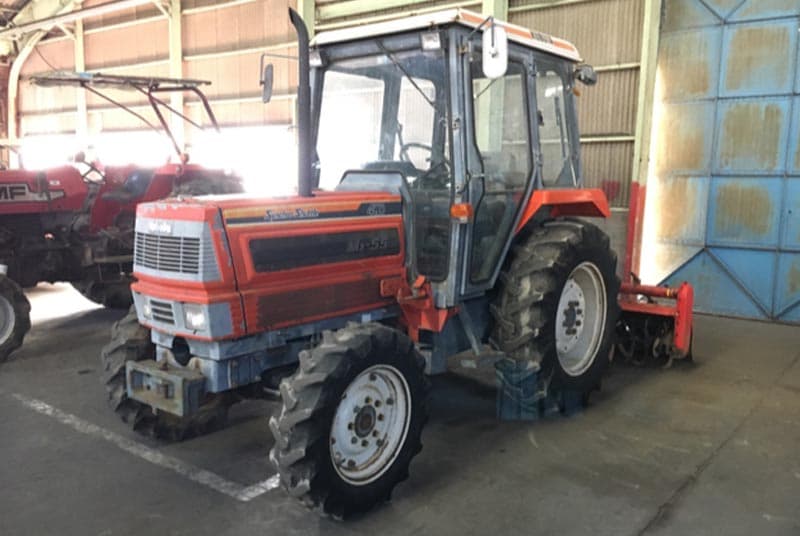

Kubota M1-55

Last Updated: June 2024

Overview

The Kubota M1-55 is a utility tractor designed for a variety of tasks on a farm or worksite. Equipped with a 4-wheel drive and a 4-cylinder diesel engine model D3202, it offers a power output of 55 hp. It features a creeper transmission with 12 forward and reverse gears, allowing for a wide range of speeds suitable for various applications. The liquid cooling system ensures the engine maintains an optimal temperature during operation. It has a sturdy wheelbase of 79.3 inches and weighs 5401 pounds, providing stability and support for heavier workloads. Standard tire configuration comes with front tires at 8.2 inches wide by 22 inches in diameter, and rear tires at 12.4 inches wide by 32 inches in diameter, adequate for general agricultural uses. Production started in 1988 and ended in 1998, making the M1-55 a staple of its time with a decade-long manufacturing run.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Creeper

Drive Type: 4WD

Operating Weight: 5401

Fuel Type: Diesel

Kubota M1-55 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D3202
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
198.1
Bore (in)
4.13
Stroke (in)
4.92
Rated RPM
2400
Power Output (hp)
55

Transmission

Type
Creeper
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
140.6
Width (in)
69.3
Height (in)
97.4
Operating Weight (lb)
5401

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
22
Front Tire Width (in)
8.2
Rear Tire Diameter (in)
32
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Standard agricultural
Manufacture - End Year
1998
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
