Kubota M1-100

Last Updated: September 2024

Overview

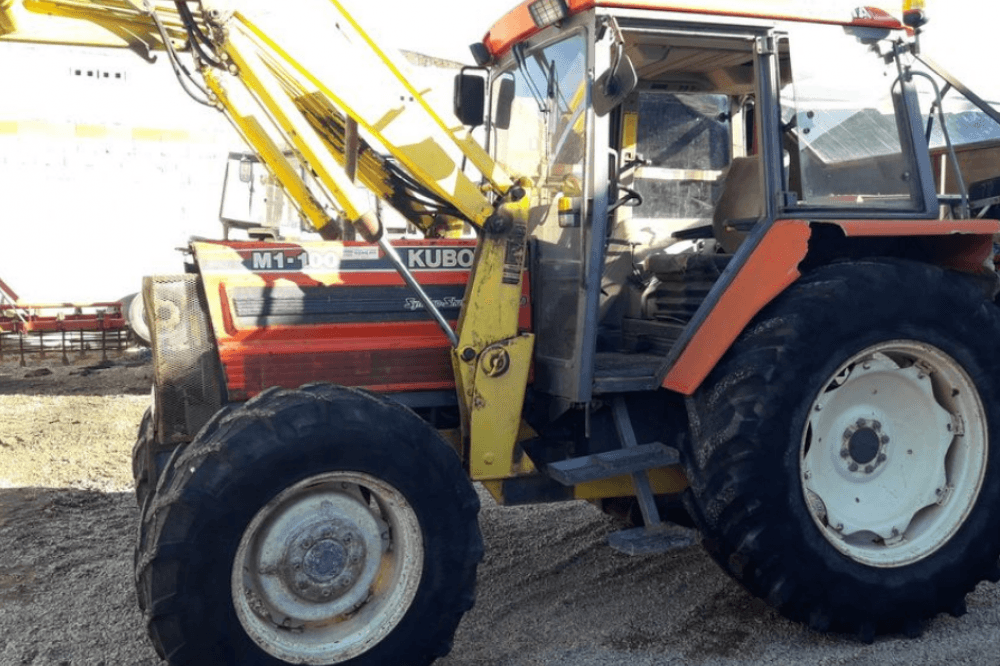

The Kubota M1-100 is a powerful utility tractor built from 1988 to 1998. It's a 4-wheel drive machine with a strong 100 hp diesel engine. This tractor has a very high engine displacement and power output compared to other tractors. It also has an above-average operating weight of 8,796 lb, making it sturdy and stable for tough jobs.

The M1-100 is big, measuring 165.8 inches long, 80.7 inches wide, and 105.9 inches tall. It has a creeper transmission with 36 forward and 36 reverse gears, giving farmers lots of speed options. The tractor uses standard agricultural tires and has a rear hitch for attaching tools. With its liquid-cooled, 5-cylinder engine and electric starter, this Kubota is ready for hard work on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 100 hp (74.6 kW)

Transmission: Creeper

Drive Type: 4WD

Operating Weight: 8796 lb (3990 kg)

Fuel Type: Diesel

Kubota M1-100 vs. Similar Tractors

Power Output

The Power Output for the Kubota M1-100 is Above Average. It is greater than 87% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 0.2K+ tractors in our database)

Operating Weight

The Operating Weight for the Kubota M1-100 is Above Average. It is greater than 85% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 0.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota M1-100 is Above Average. It is greater than 85% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota M1-100 is Average. It is greater than 53% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
F5402
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
5
Displacement
330 ci (5.4 L)
Bore
4.13 in (104.9 mm)
Stroke
4.92 in (125.0 mm)
Rated RPM
2400
Power Output
100 hp (74.6 kW)

Transmission

Type
Creeper
Forward Gears
36
Reverse Gears
36

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
