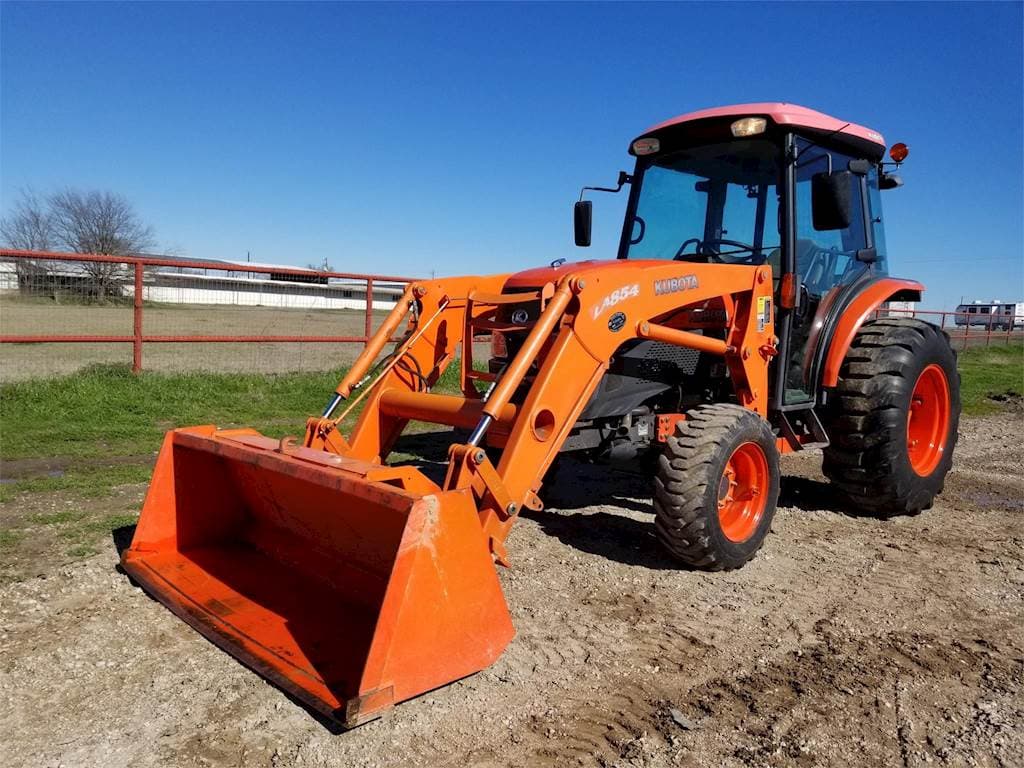

Kubota L5740HSTC

Last Updated: June 2024

Overview

The Kubota L5740HSTC tractor is a mid-sized, innovative tractor known for its durability and performance in various agricultural and utility applications. It is powered by an E-TVCS, turbocharged, four-cylinder diesel engine with a power output of 57 hp and a peak torque delivered at a rated RPM of 2700. The tractor's engine displaces 148.5 cubic inches, ensuring sufficient power for challenging tasks. It comes with Kubota's HST Plus transmission that includes three forward and three reverse gears to offer smooth control and maneuverability. The L5740HSTC also has a robust operating weight of 4232.9 pounds which contributes to its stability and traction in diverse working conditions. The tractor is also equipped with a Category I & II three-point hitch with a lift capacity of 2976.3 lbs, enhancing its versatility in handling different types of implements. Additional features include an alternator with 55 A of supplied amperage, 14.3 gallons of fuel capacity, and a hydraulic pump flow capacity of 14.7 gal/min. Its compact dimensions and 9.2 ft turning radius make it ideal for operations requiring agility and precision.
Show more...

Key Specifications

Category: Utility

Power Output: 57

Transmission: HST plus 3 range

Operating Weight: 4232.9

Lift Capacity: 2976.3

Kubota L5740HSTC vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Hitch Capacity
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
Unknown
Model
E-TVCS
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
148.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
57

Transmission

Type
HST plus 3 range
Forward Gears
3
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
10.6
Width (in)
5.7 ft (68.4 in)
Height (in)
8.5 ft (102 in)
Operating Weight (lb)
4232.9

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat. I & II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
2976.3
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
