Kubota L5450

Last Updated: June 2024

Overview

The Kubota L5450 is a utility tractor that comes with a powerful Kubota diesel engine, model F2803-DI, which outputs a gross 59.5 hp. This model features a 4x4 MFWD 4WD chassis, suited for a variety of tasks on the farm or property. It has an 8-speed hydraulic shuttle transmission, making it capable of handling many different types of work with ease. The L5450 operates comfortably with its open operator station, and it has a height at the steering wheel of 62.2 inches, lending a reasonable view of the work area. The three-point hitch on this model is flexible, accepting both Category II and I implements, enhancing the tractor's versatility. Although the exact years of manufacture aren't stated, the tractor bears the robustness typical of Kubota design, making it a reliable choice for those in need of a mid-size workhorse.

Key Specifications

Category: Utility

Power Output: 59.5

Transmission: Hydraulic Shuttle

Drive Type: 4WD

Operating Weight: 4410

Fuel Type: Diesel

Image Gallery

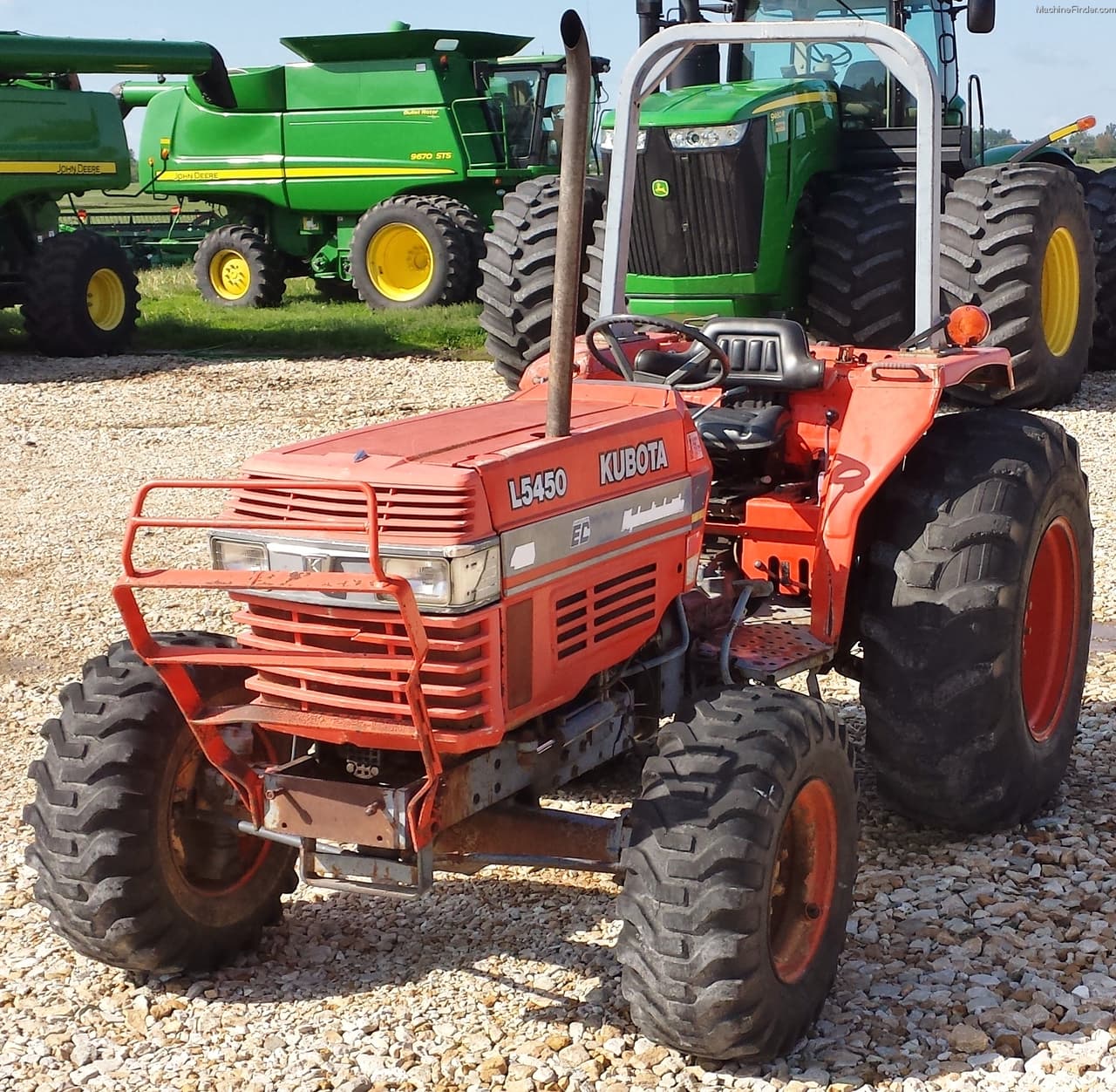

Kubota L5450 Tractor

Kubota L5450 vs. Similar Tractors

Power Output

Average

Greater than 56% of similar tractors.

Operating Weight

Average

Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: F2803-DI
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 5
Displacement (ci): 167.6
Bore (in): 3.4
Stroke (in): 3.6
Rated RPM: 2600
Power Output (hp): 59.5

Transmission

Type: Hydraulic Shuttle
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 137.4
Width (in): 67.7
Height (in): -
Operating Weight (lb): 4410

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): 8.5
Front Tire Diameter (in): 20
Front Tire Width (in): -
Rear Tire Diameter (in): 28
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Category II/I)
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
