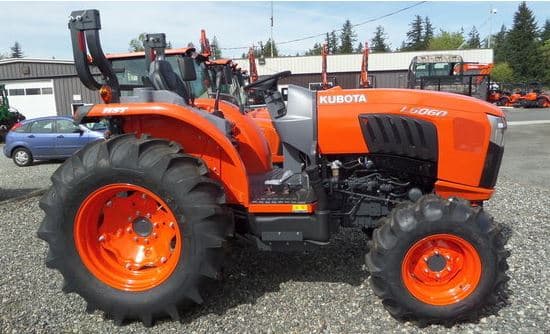

Kubota L5060

Last Updated: June 2024

Overview

The Kubota L5060 is a functional and robust compact utility tractor that is part of the respected L60 series. This model is well-suited for a variety of tasks, including farming, landscaping, and more. Equipped with a Kubota V2403-CR-TE4 four-cylinder turbocharged diesel engine, it delivers an adequate 50 horsepower at 2700 RPM. The practical design features hydrostatic power steering, wet disc brakes, and an open operator station with two-post foldable ROPS. Although compact, its sturdy chassis and combination of glide shift transmission with 12 forward and 8 reverse gears make maneuvering and operations efficient and user-friendly for varied field or yard work. Stability is provided by its 4x4 MFWD 4WD setup and standard agricultural tires, enabling it to tackle rough terrain with ease. With a solid three-point hitch at the rear for attachment versatility and an independent rear PTO complemented by an optional middle PTO, this tractor proves to be a reliable workhorse that enhances productivity on any small to mid-sized land or farming operation.
Show more...

Key Specifications

Category: Utility

Power Output: 50

Transmission: Glide Shift

Drive Type: 4WD

Operating Weight: 3979

Fuel Type: Diesel

Kubota L5060 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Hitch Capacity
Average
Greater than 67% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2403-CR-TE4
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
148.5
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2700
Power Output (hp)
50

Transmission

Type
Glide Shift
Forward Gears
12
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
126.4
Width (in)
67.3
Height (in)
98
Operating Weight (lb)
3979

Power Take-Off (PTO)

PTO Type
Independent Rear PTO
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000 (Optional Middle PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
8.66
Front Tire Diameter (in)
16
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
14.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-point hitch
Hitch Category
Category II/I
Hitch Position
Rear
Hitch Capacity (lb)
3859
Operator Station Type
Open operator station with two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
