Kubota L48

Last Updated: June 2024

Overview

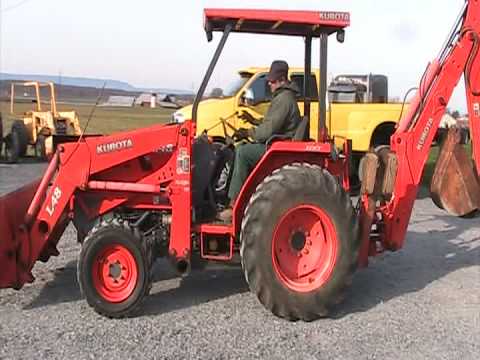

The Kubota L48 is a robust and versatile backhoe loader tractor that was produced by Kubota between 2000 and 2009. It sports a four-wheel drive chassis (4x4 MFWD 4WD) for enhanced traction and hydrostatic power steering for ease of control. The heart of this workhorse lies in its Kubota 2.4 L four-cylinder diesel engine which is both naturally aspirated and liquid-cooled, providing a solid 48 horsepower at 2800 RPM. Its transmission allows for infinite gearing within three ranges both forward and reverse, giving the operator the precision needed to handle various tasks efficiently. Standard industrial tires support the tractor's substantial 7,760 lbs operating weight, providing reliable performance on a range of surfaces. The L48 comes with a four-post FOPS canopy, offering protection while maintaining visibility, and it utilizes a live-continuous PTO running at a standard 540 rpm. Its hydraulics are driven by an open center system, facilitating a range of compatible implements for a variety of applications.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 48

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 7760

Fuel Type: Diesel

Kubota L48 vs. Similar Tractors

Power Output
Average
Greater than 30% of similar tractors.
Hitch Capacity
Excellent
Greater than 93% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
Kubota
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
4
Displacement (ci)
148.5
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2800
Power Output (hp)
48

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
240.9
Width (in)
74.4
Height (in)
119.7
Operating Weight (lb)
7760

Power Take-Off (PTO)

PTO Type
Live-continuous
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
2009
Hitch Type
-
Hitch Category
Category I
Hitch Position
-
Hitch Capacity (lb)
3308
Operator Station Type
Four-post FOPS canopy
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
