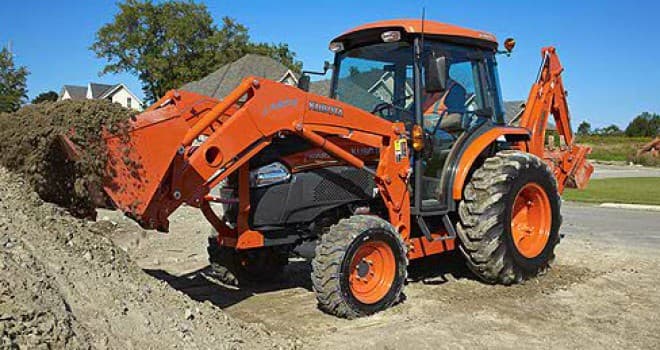

Kubota L4740HST

Last Updated: June 2024

Overview

The Kubota L4740HST is a utility tractor designed for a variety of tasks in the agriculture, horticulture, and landscaping industries. Its hydrostatic transmission with three-range speed options provides a smooth and manageable power output for different types of work. The tractor is powered by a Kubota E-TVCS engine, with a natural aspiration system delivering 47 horsepower at a rated RPM of 2700. With four cylinders and a displacement of 148.5 cubic inches, it offers a reliable performance for its size. The Kubota L4740HST features a Category 1 three-point hitch with a lift capacity of 2755.8 pounds. It has a 4WD chassis configuration, ensuring improved traction and stability across various terrains. The operating weight of the tractor is 3670.7 pounds, supporting its robust build for heavy-duty tasks. The overall length, width, and height measurements give it a compact footprint suitable for a range of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 47

Transmission: Hydrostatic (HST plus 3 range)

Drive Type: 4WD

Operating Weight: 3670.7

Fuel Type: Diesel

Kubota L4740HST vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Hitch Capacity
Average
Greater than 51% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
E-TVCS
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
148.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2700
Power Output (hp)
47

Transmission

Type
Hydrostatic (HST plus 3 range)
Forward Gears
3
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
122.4 (converted from 10.2 ft)
Width (in)
67.2 (converted from 5.6 ft)
Height (in)
100.8 (converted from 8.4 ft)
Operating Weight (lb)
3670.7

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
2755.8
Operator Station Type
Open
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
